Description

Product Specifications:
Size:35x33mm
The main chip:NE555
Input voltage:5V-15V(note:DC 5V power supply,the output current can about 15MA; 12V power supply, the output current can be about 35MA)
Input current:≥100MA
Output amplitude:4.2V V-PP to 11.4V V-PP(depends on the input voltage,the output amplitude is not the same)
Maximum output current:
≥15MA(5V power supply,V-PP greater than 50%)
≥35MA(12V power supply,V-PP greater than 50%)

Product Features:
1. Output with LED indication, whether there is an output or not can be directly understood (LED on at low power level, LED off at high power level, LED flashing at relatively low frequency)
2. Optional output frequency range and grade, making the output frequency more continuous and adjustable
Low frequency range: 1Hz~50Hz
Medium frequency range: 50Hz~1kHz
Medium and high frequency range: 1KHz~10kHz
High frequency range: 10kHz~200kHz 3. Adjustable output frequency
Cycle T=0.7 (RA+2RB) C
VR1 and VR2 are adjustable from 0-10K
At low frequency range, C=0.001UF
Mid frequency range:C=0.1UF
Medium and high frequency range:C=1UF
High frequency range:C=100UF
Therefore, the frequency of the waveform can be calculated by the buyer themselves

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

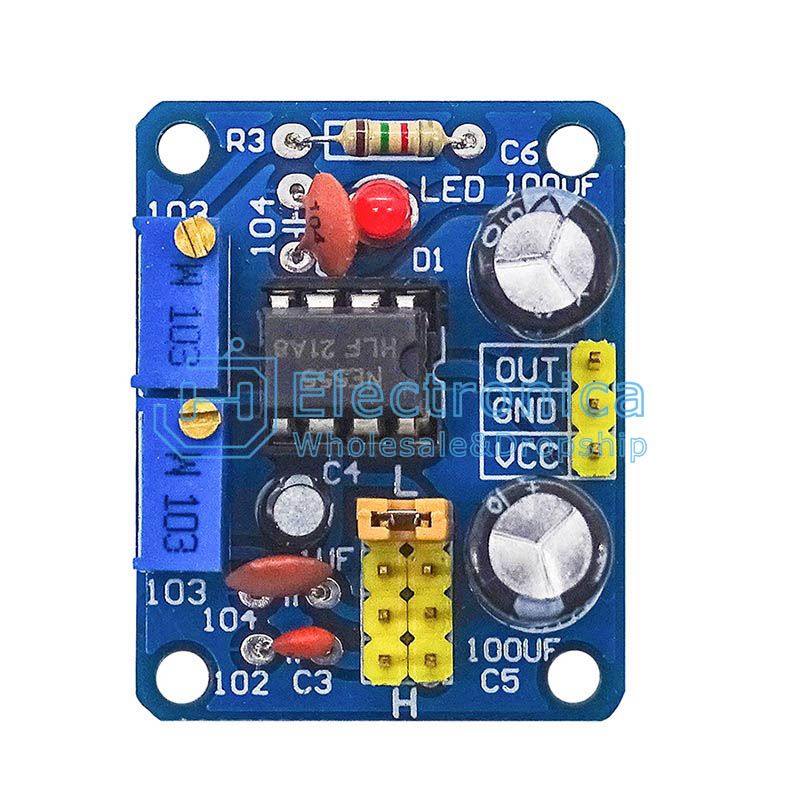

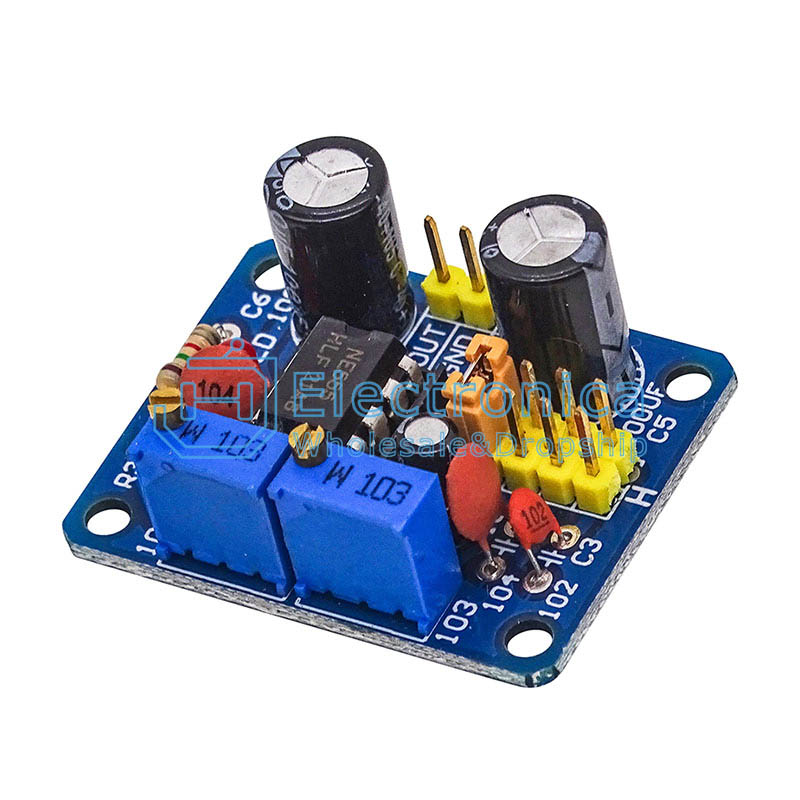

NE555 Pulse Module

SKU : YXS702 Brand :

Price : $ 0.72

100 +: $0.72500 +: $0.721000 +: $0.72
