Description
No need for any driver,directly support Windows,Linux,Android equal,plug and play.
The upstream USB port of the computer and the downstream USB port of the expansion have large capacitance filtering to ensure that the power supply is pure and the communication is stable and reliable.
Automatic power switching,low-power device keyboard and mouse U disk does not need external power supply,plugged into the computer can be used.If you want to use a portable hard disk,USB 4G card,or fan lamp high-power device,plug in the DC power supply and automatically switch from the USB port of the computer to the DC power supply.
Intelligent recognition,only when the USB device is working normally,the LED of the corresponding interface will be lit.
Auto-sleep,the USB port connected to the computer has a device indicator,at least one device is plugged in,the LED will be lit,no device,it will be automatically extinguished for about 2S to enter the energy-saving mode.
Side-facing USB arrangement,spacing 11mm,can insert wide USB devices,can use 7 USB devices at the same time.
Connect to the computer with a 500mA fuse to protect the computer USB interface,and the downstream USB interface with a 2A fuse,which can drive high-current equipment.
Rolled USB interface,easy to insert and easy to use.
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

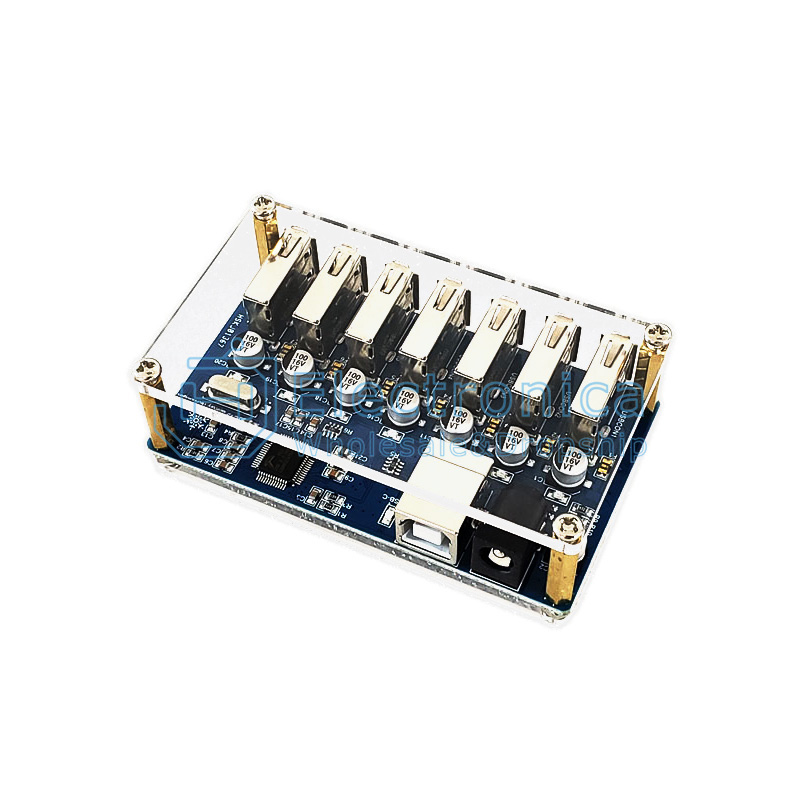

1 to 7 Port USB HUB Splitter
SKU : YXS1537 Brand :
style：

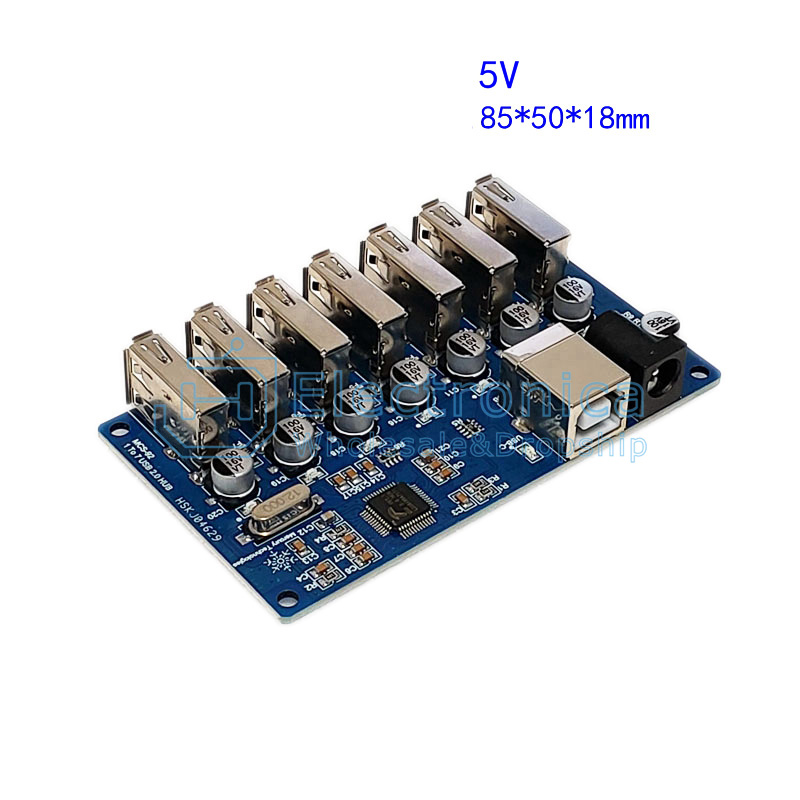

Bare board,5V power supply,without cable

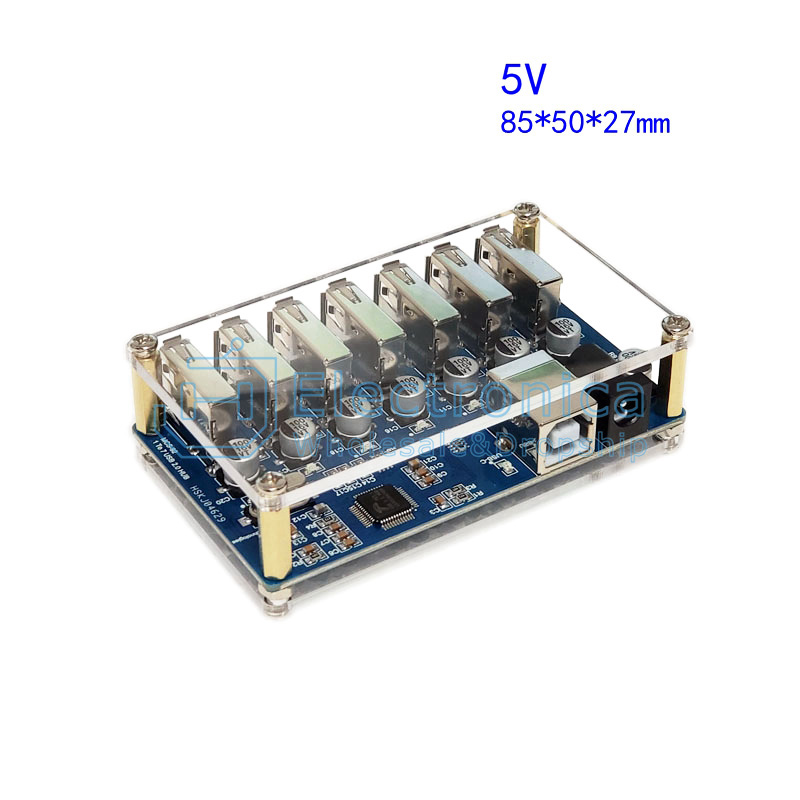

With acrylic shell,5V power supply,without cable

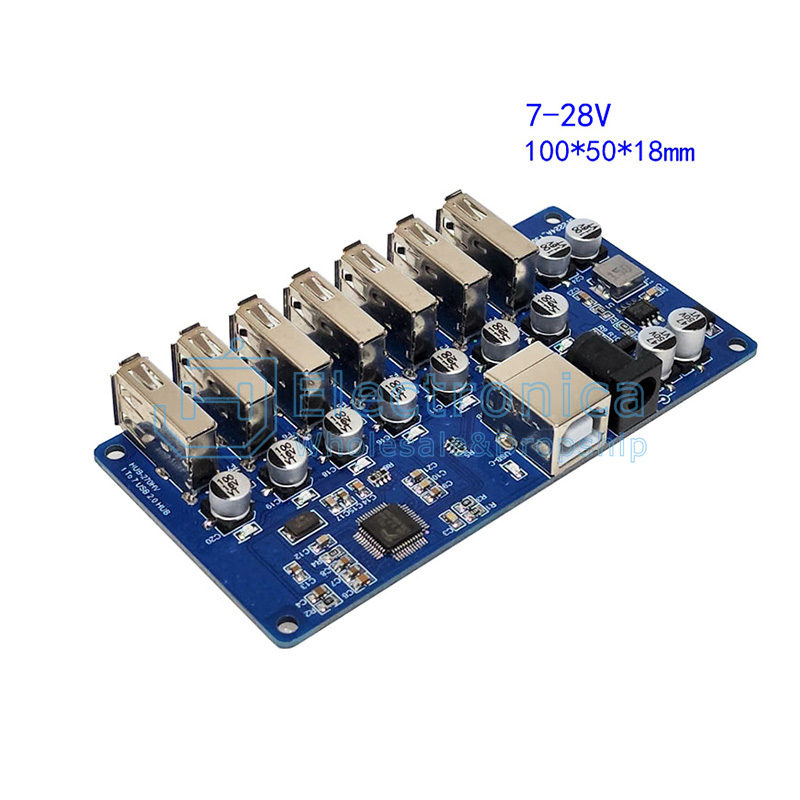

Bare board,7-28V power supply,without cable

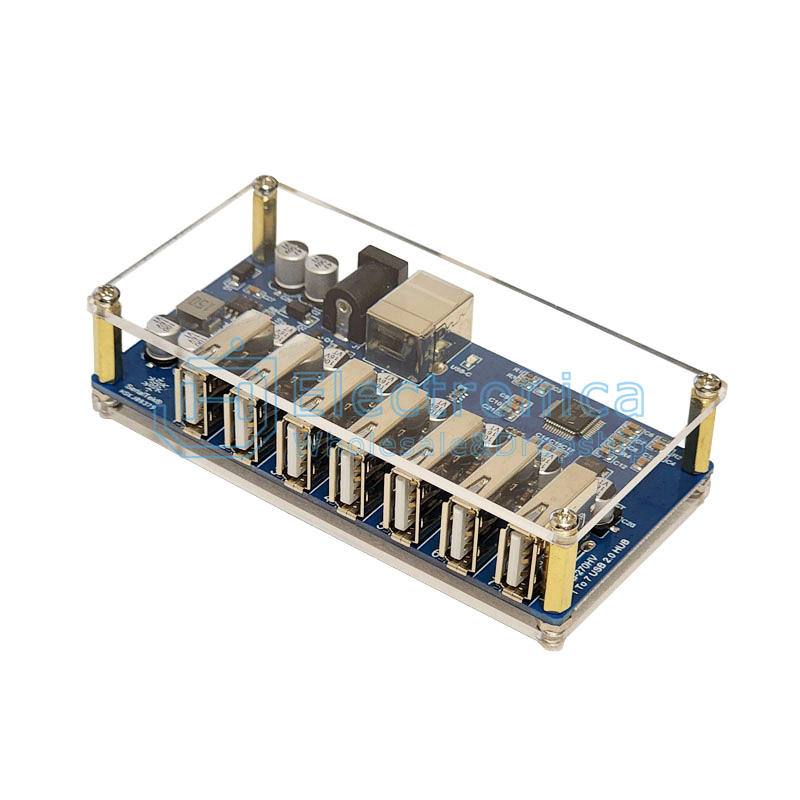

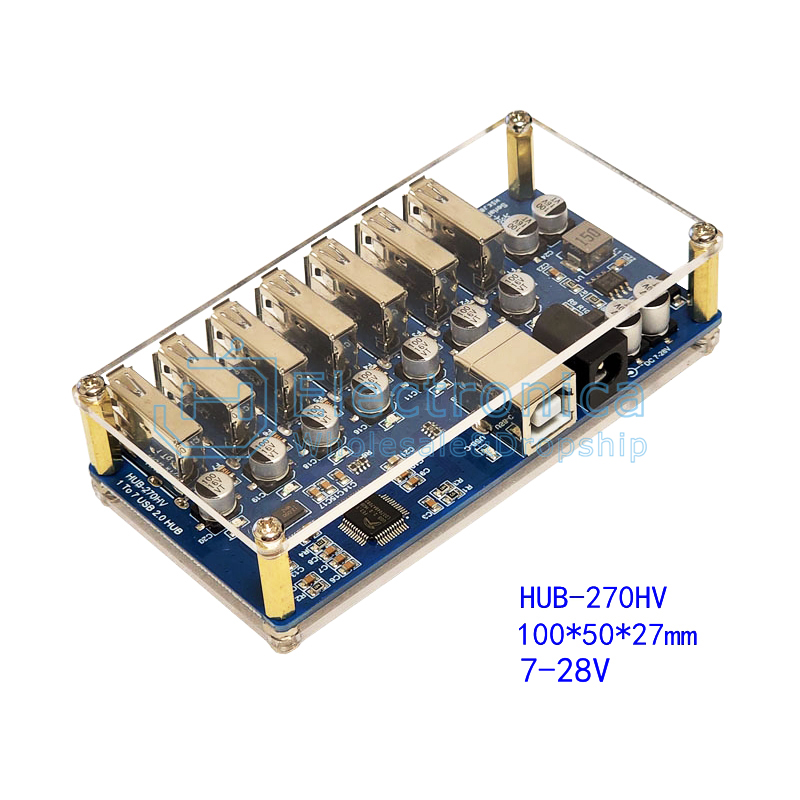

With acrylic shell,7-28V power supply,without cable
