Description

Product Details:
Rated power input range: 5.5V-45Vdc, output rated driving current 15A (no heat sink installed at room temperature)
On board three-phase external current amplification circuit, with a gain of 12.22 and a full amplitude current of ± 27A
The onboard three-phase back electromotive force sampling circuit and power sampling circuit have a signal attenuation ratio of 5.1/73.1
Optional three-phase differential current amplifier reference level, can be connected to 5V or other level systems
Reserved and equipped with DRV8302 internal dual amplifier output
Three external current differential amplifiers support ST FOC library applications
Support the development of BLDC sensorless and brushless motor drive applications

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

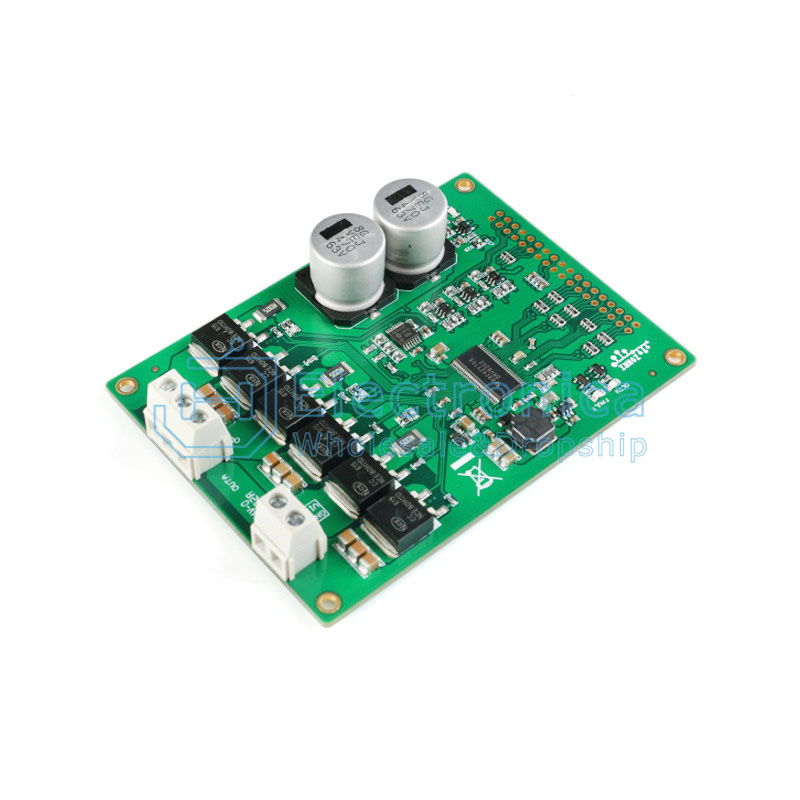

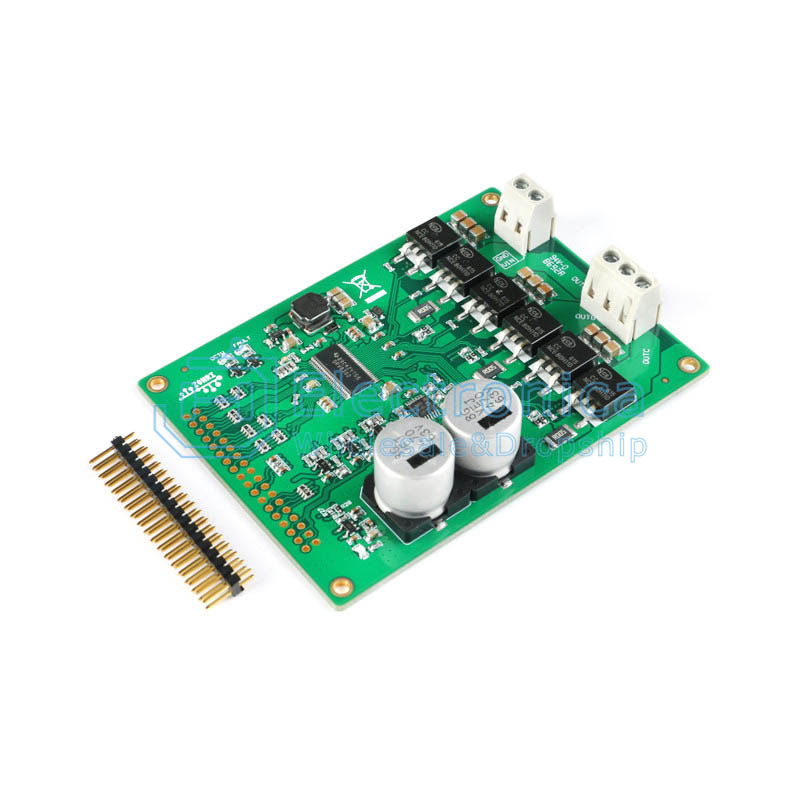

DRV8302 High Power Motor Drive Module

SKU : YXS1135 Brand :

Price : $ 39.45

100 +: $39.45500 +: $39.451000 +: $39.45

Quantity :

- +

ADD TO CART
