Description

Product Parameters:
Size:50*24mm
Input Voltage:6V-27V
Maximum current:43A
Input level:3.3-5V
Control mode:PWM or level
Protection:Over-temperature,over-voltage,under-voltage,over-current,short-circuit protection
Function:With current diagnostic function,slope adjustment function

Product Introduction

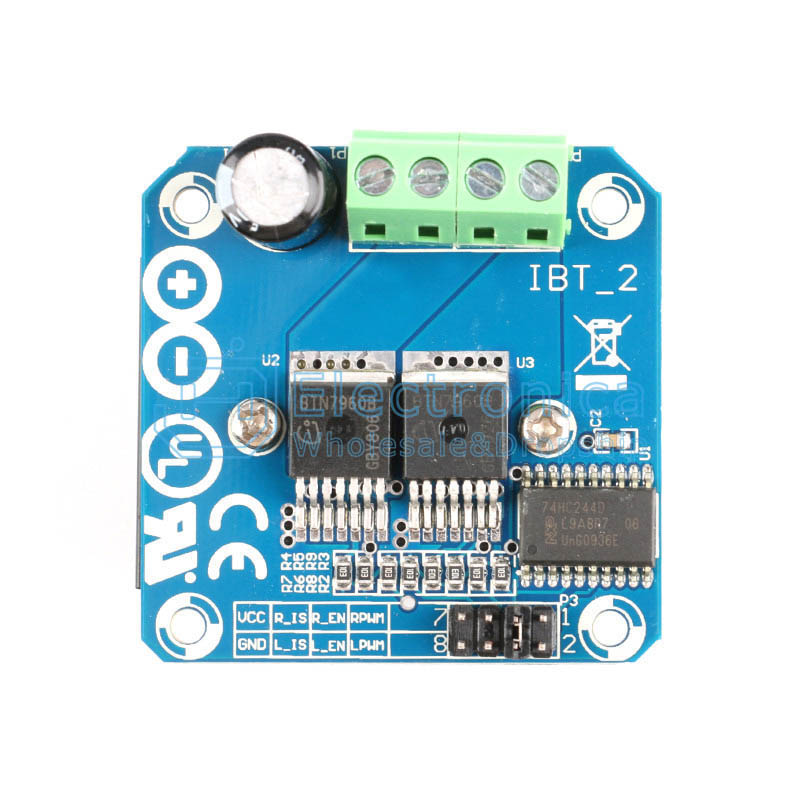

This driver adopts an H-bridge driver module composed of a high-power driver chip BTN7960, which has the function of overheating and overcurrent protection. Dual BTN7960 H-bridge driving circuit with strong driving and braking effects, using 74HC244 chip to effectively isolate the microcontroller and motor drive

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

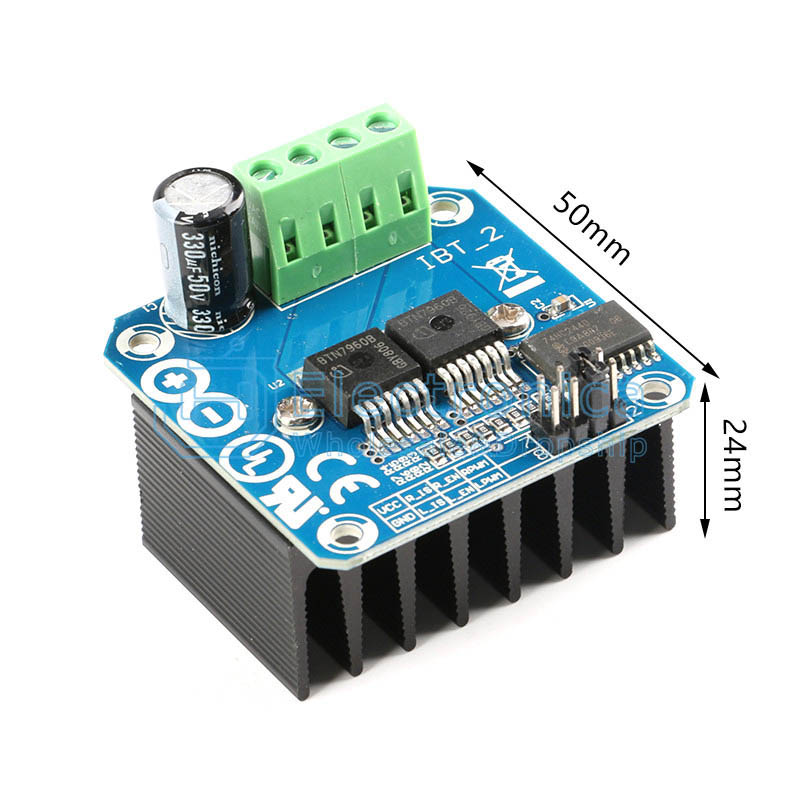

BTN7960 43A Motor Drive Module

SKU : YXS1134 Brand :

Price : $ 3.52

100 +: $3.52500 +: $3.521000 +: $3.52
