Description

Product Details:
Supply voltage:2V-10V
Signal input voltage:1.8-7V
Single circuit working current:1.5A
Peak current:Up to 2.5A
Low standby current:Less than 0.1uA Built-in thermal protection circuit(TSD) with hysteresis effect,no need to worry about motor blocking.
Product Size:24.7*21*5mm
Mounting hole diameter:2mm

Product Features:
The motor drive module is very suitable for use on battery powered smart cars, toy cars, robots, etc., with a power supply voltage of 2V~10V. It can simultaneously drive two DC motors or one 4-wire 2-phase stepper motor, which can achieve forward and reverse rotation and speed regulation functions. Each current can reach a continuous current of 1.5A, and the peak current can reach 2.5A. It has thermal protection, so there is no need to worry about the motor being blocked or burnt out. After the temperature drops, it automatically recovers. (Currently, the voltage and current of smart cars on the market are within this range). Adopting imported original professional motor driver chips, with built-in low conductivity and internal resistance MOS switch tubes, it generates minimal heat without the need for heat dissipation fins, has a small size, and is an ideal choice for your battery power supply. The L298N has a transistor switch inside, which is low in efficiency, high in heat generation, requires heat dissipation, and is bulky. The L298N on the market is extremely easy to burn out, and none of the original chips are used. This product can perfectly replace it. Its small size, light weight, and low standby current make it an ideal choice for your model car

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

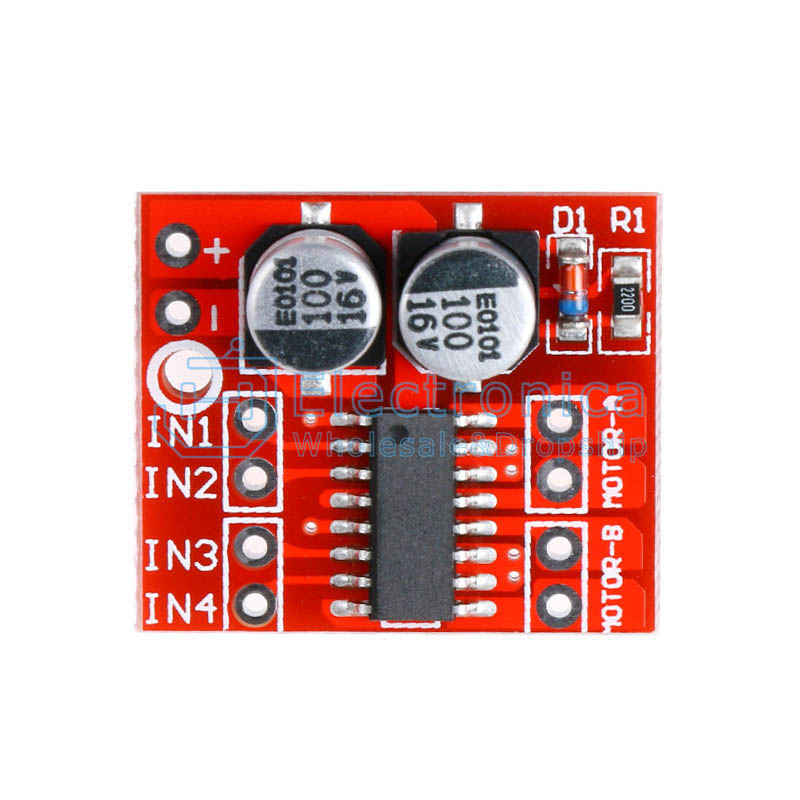

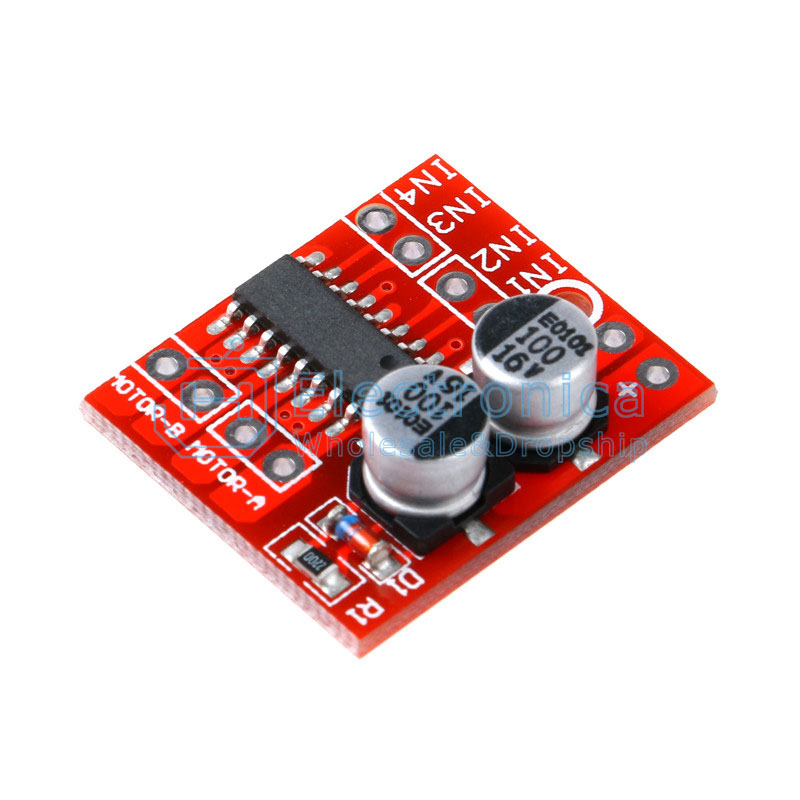

2 Channel DC Motor Drive Module

SKU : YXS1131 Brand :

Price : $ 0.16

100 +: $0.16500 +: $0.161000 +: $0.16

Quantity :

- +
