Description

Main features :
1. 20KHz chopping frequency
2. Optical isolation signal input
3. Output current DIP switch is adjustable
4. Bipolar constant current chopping method
5. High segmentation: 2, 4, 8, 16, 32, 64, 128, 256.5, 10, 25, 50, 125, 200
6. TTL input signal compatible,while accepting differential signal input
7. The driver uses discrete components structure, as long as no over voltage and wiring is right, please rest assured that two-phase 4-wire, 6-wire, 8-wire can be used. 57 series 4.5A or less (including 4.5A) two-phase four-wire, six-wire, eight-wire stepper motor also can be used
8. Nice working partner with our linear guide rails

Specification:
Power supply: DC 24-60 (V)
Current maximum: 4.5A
Output phase current: 1.5A-4.5A
Logic input current: 10-20mA
Operating temperature: -15°—+45°
Size: 11.7 x 8.5 cm (about 4.61 x 3.35 inch)

Electrical environment：
Cooling Method: Natural cooling / Forced cooling
Occasion: Avoid dust, oil, corrosive gases, too much humidity, too high temperature and strong vibration places
Humidity: 40-90% RH
Vibration: 10-55Hz/0.15mm

Storage temperature: -20-65 °

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

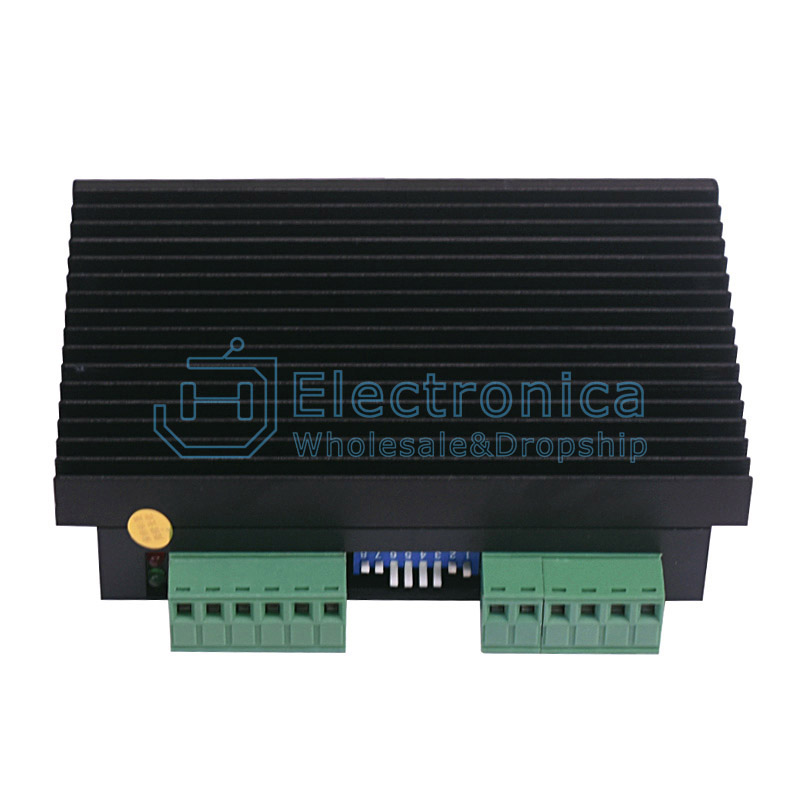

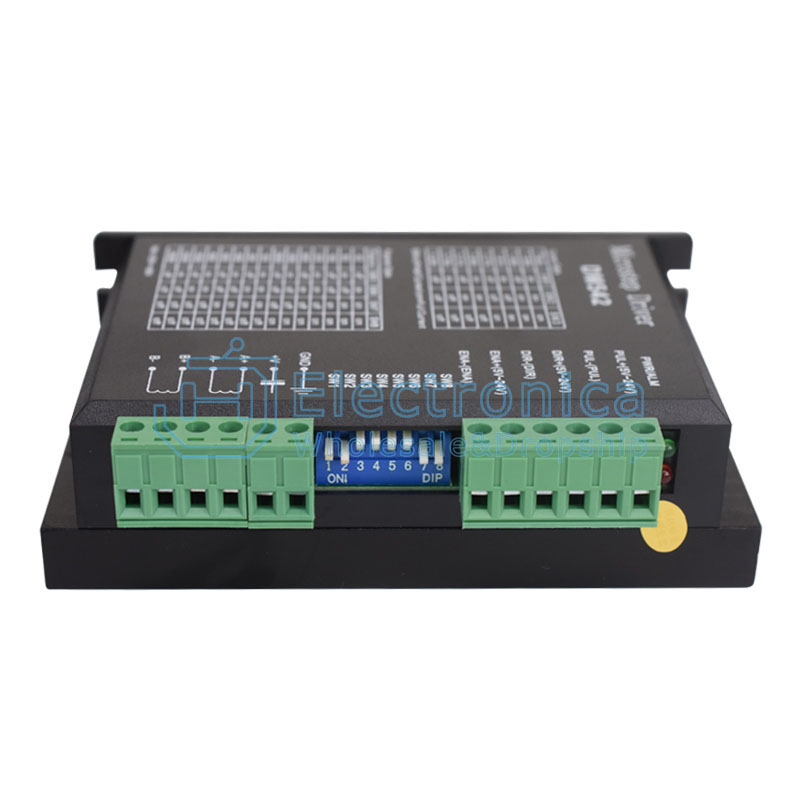

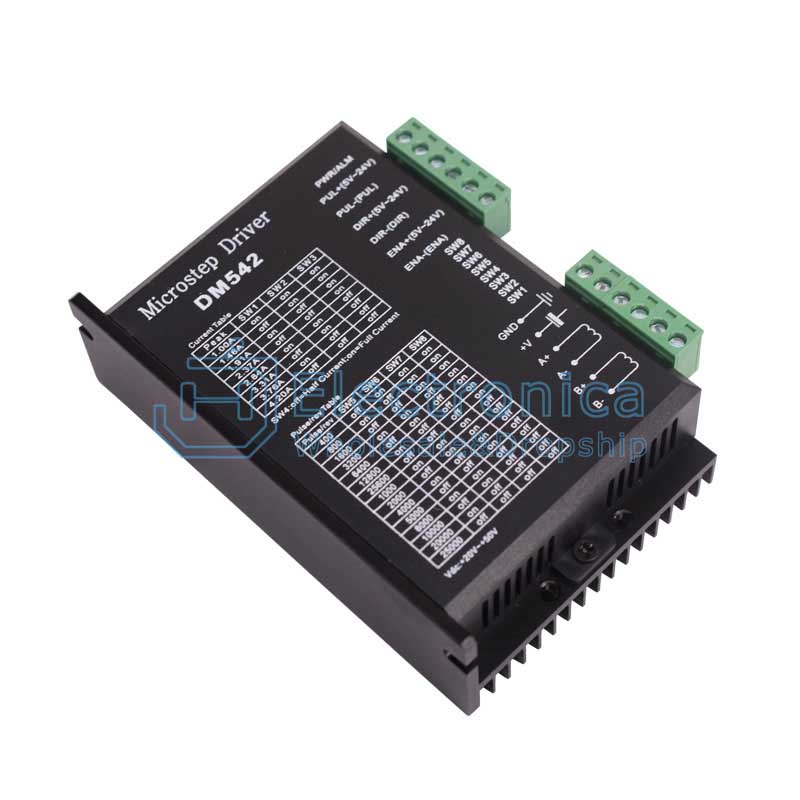

DM542 DSP Digital Stepper Motor Driver

SKU : YXD490 Brand : JH Sourcing

Price : $ 6.66

100 +: $6.66500 +: $6.661000 +: $6.66

Quantity :

- +

ADD TO CART
