Description

Product Introduction:
The commonly used P-channel MOS transistor driving method is uplink control, and this module is also uplink control. It is recommended to work at a voltage less than 30V, and the current depends on the chip. Please refer to the chip manual for specific details. In addition, during the circuit design process, try to leave 1/3 or even half of the margin for reliable operation. When passing through high current, the chip will definitely generate heat. Please try to replace the large heat sink for heat dissipation to ensure the reliability and safety of the chip
Board Features:
The control end uses a jumper cap to determine whether it is grounded. This has the following advantages: 1. When high-level driving is required, plug in the jumper cap to form a circuit; 2. If low-level drive is required, unplug the jumper cap, connect the positive terminal of the input terminal to the power supply, and connect the negative terminal to the control IO port to form a loop. In this way, the driving options are more flexible

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

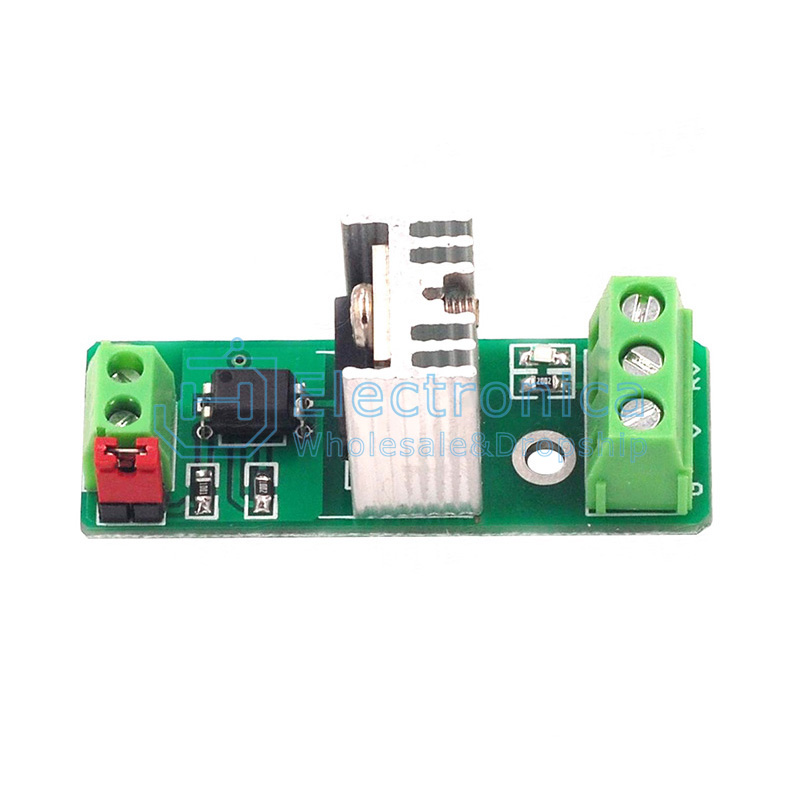

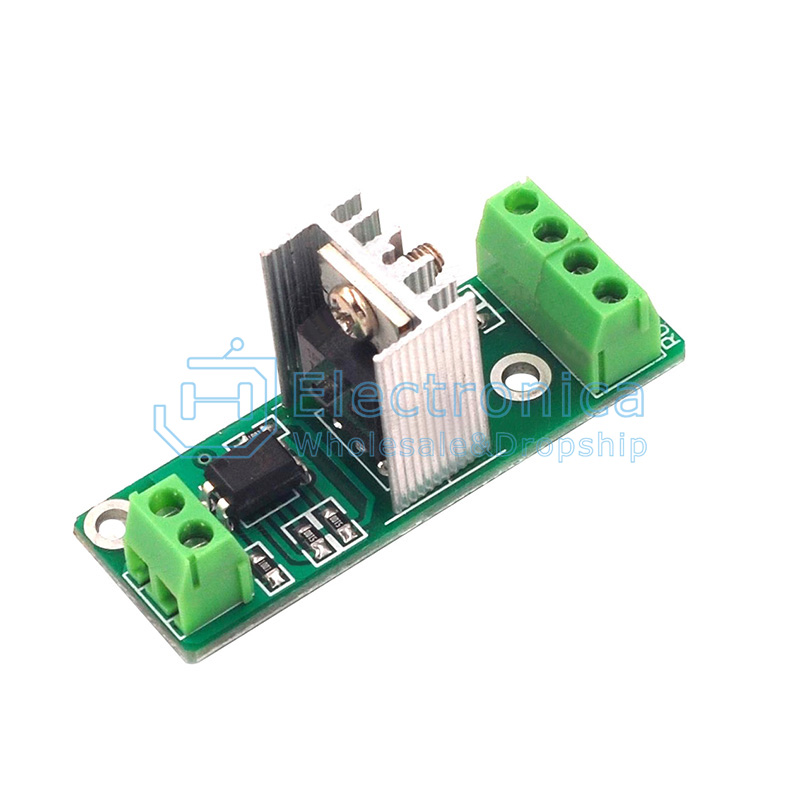

IRF640N/9530N MOS Field-Effect Drive Module

SKU : YXS1600 Brand :

Price : $ 1.19

100 +: $1.19500 +: $1.191000 +: $1.19

Style：

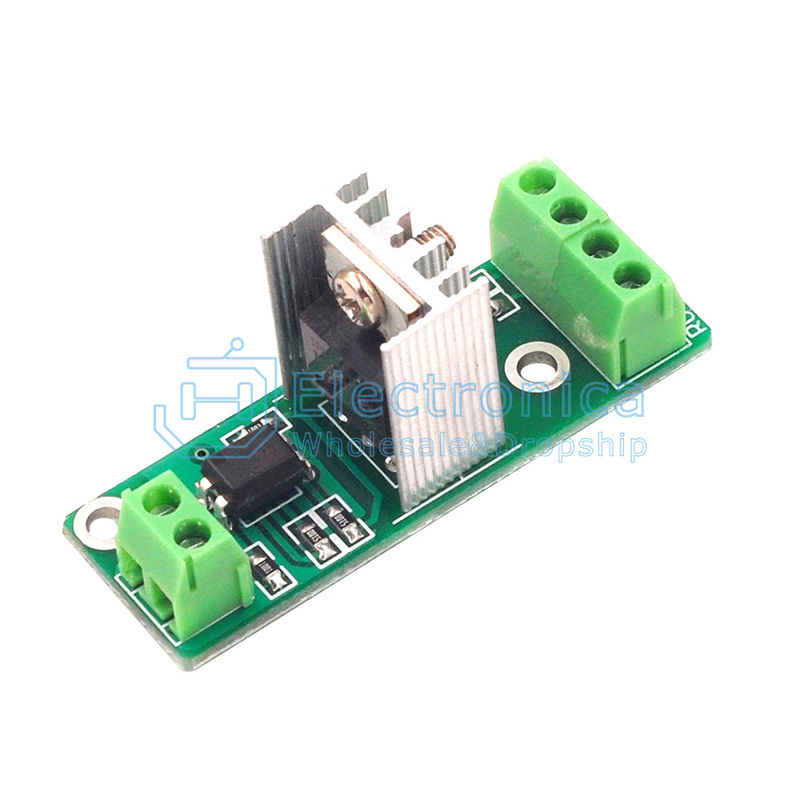

IRF640N

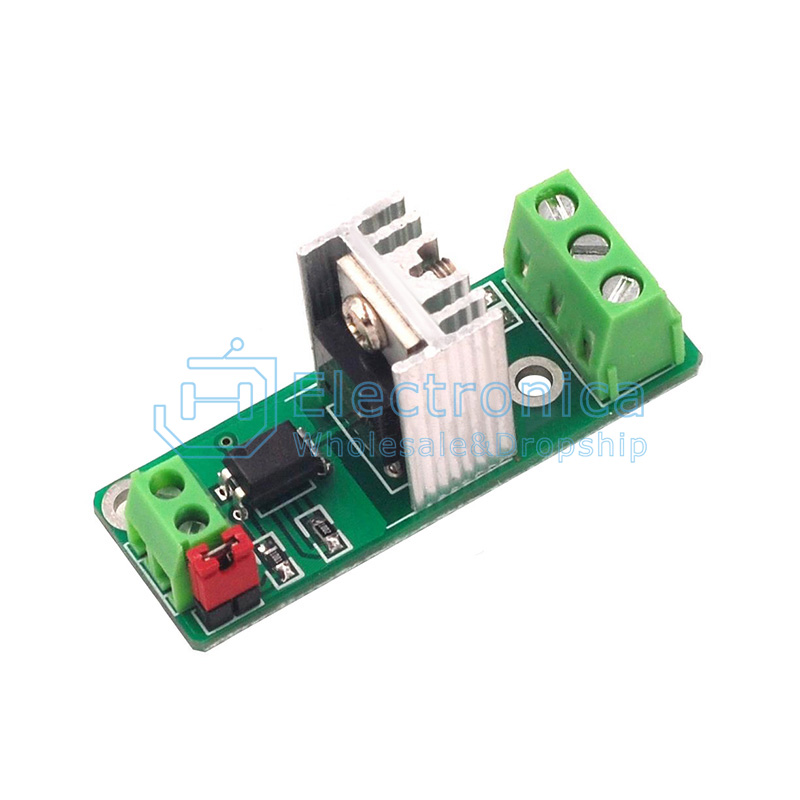

9530N
