Description

Weighs:122g
Size:89.7X68.5X19.5mm
Notice:Support WIN XP system,WIN7 32-bit is barely usable,WIN7 64-bit system does not support!This product has optocoupler isolation.

Features:
1.Fully support of MACH3 and other computer software support for parallel port control
2.USB power supply and peripherals powered phase separation to protect computer security
3.Peripheral wide voltage input,12-24V, and anti-reverse function
4.All of the input signal, all the light lotus isolated,which can be accessed emergency stop on the knife,the limit to protect computer security
5.All the way to the relay output port,control spindle switch.Output port P17 mouth
6.All the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed.Output port P1 port
7.Open all 17 ports,which can be accessed with the optocoupler drive,5-axis stepper motor can be controlled
8.P1 as PWM outputs can be controlled with optocoupler input spindle governor
9.Can be accessed by a common cathode or common anode input level to 5V drive

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

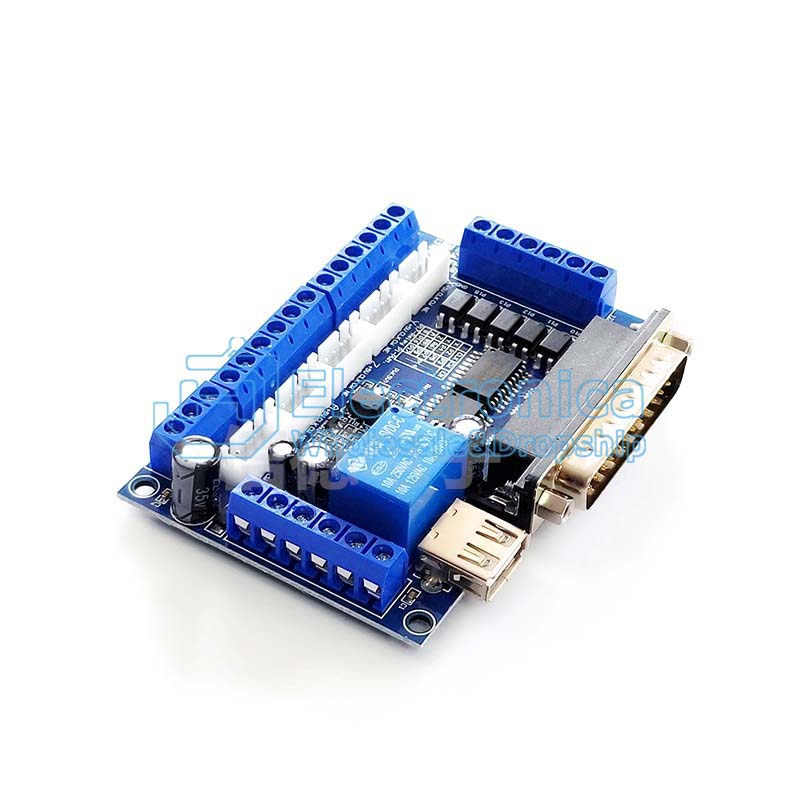

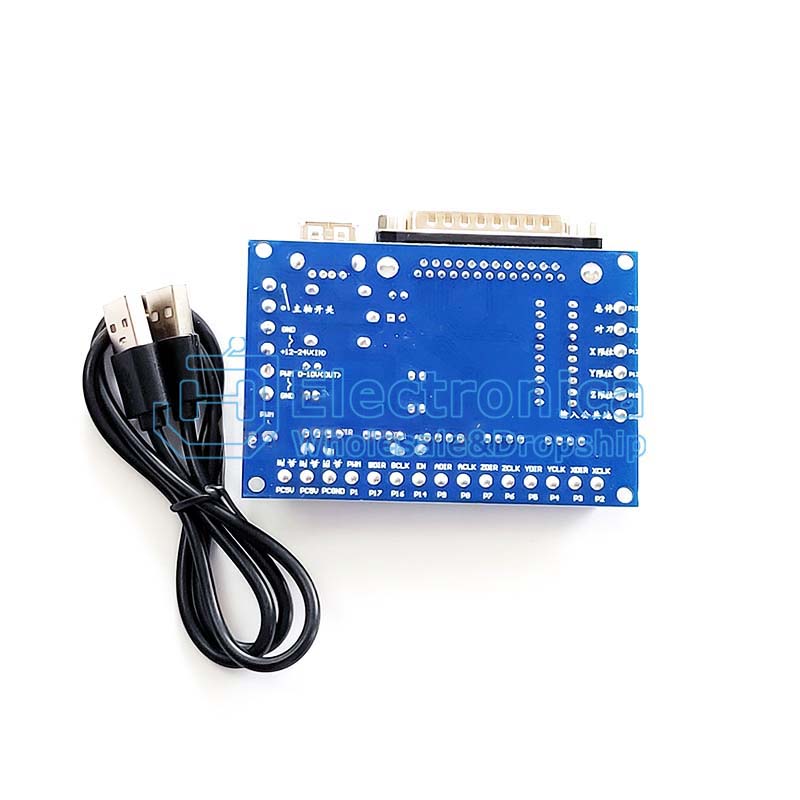

MACH3 5-Axis CNC Stepper Motor Driver

SKU : YXC532 Brand : JH Stock

Price : $ 2.11

100 +: $2.11500 +: $2.111000 +: $2.11
