Description

Input voltage DC4.5-25V
OUTPUT CURRENT CAPABILITY PER CHANNEL 600mA
PEAK OUTPUT CURRENT (non repetitive)PER CHANNEL 1.2A
ENABLE FACILITY
OVERTEMPERATURE PROTECTION
LOGICAL "0" INPUT VOLTAGE UP TO 1.5 V(HIGH NOISE IMMUNITY)
INTERNAL CLAMP DIODES

The Device is a mnolithic integrated high voltage, high current four channel driver designed to accept standard DTL or TTL logic levels and drive inductive loads (such as relays solenoides, DC and stepping motors) and switching power transistors. To simplify use as two bridges each pair of channels is equipped with an enable input. A separate supply input is provided for the logic, allowing operation at a lower voltage and internal clamp diodes are included. This device is suitable for use in switching applications at frequencies up to 5 kHz.

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

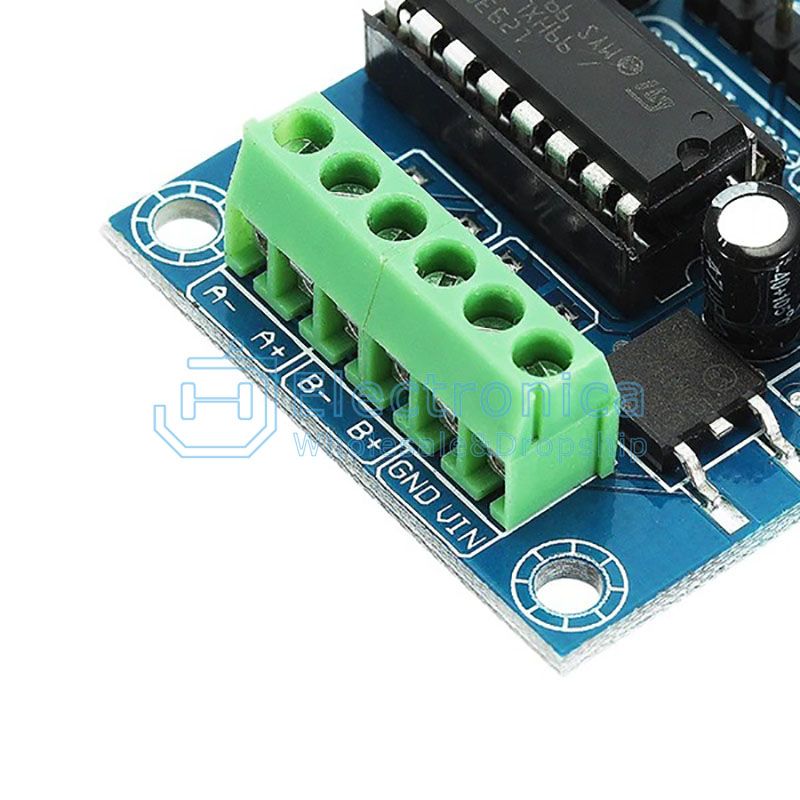

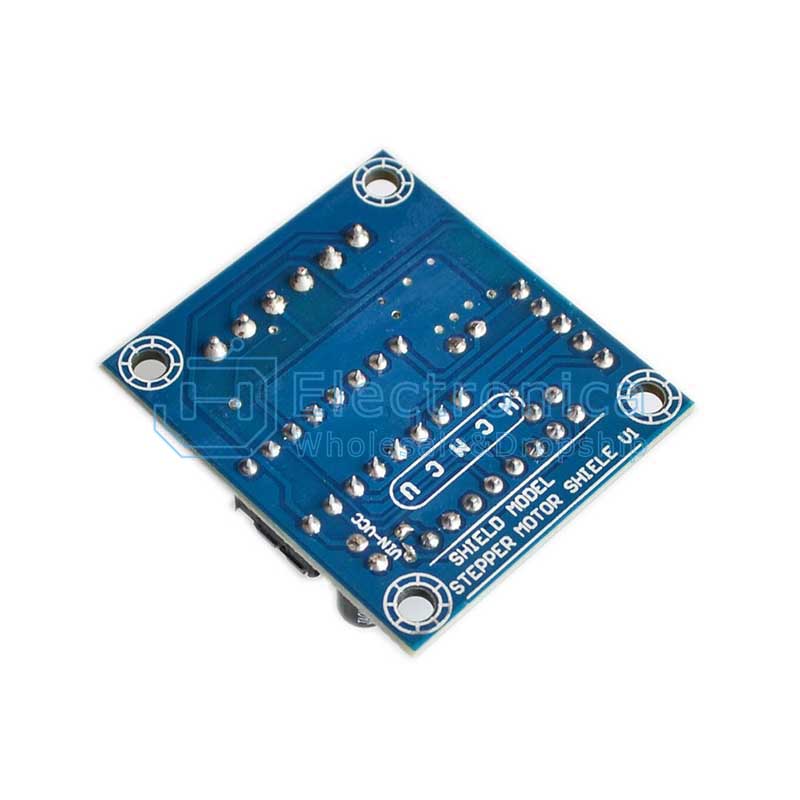

Mini L293D Motor Driver Module

SKU : YXA184 Brand : JH Stock

Price : $ 0.53

100 +: $0.53500 +: $0.531000 +: $0.53

Quantity :

- +

ADD TO CART
