Description

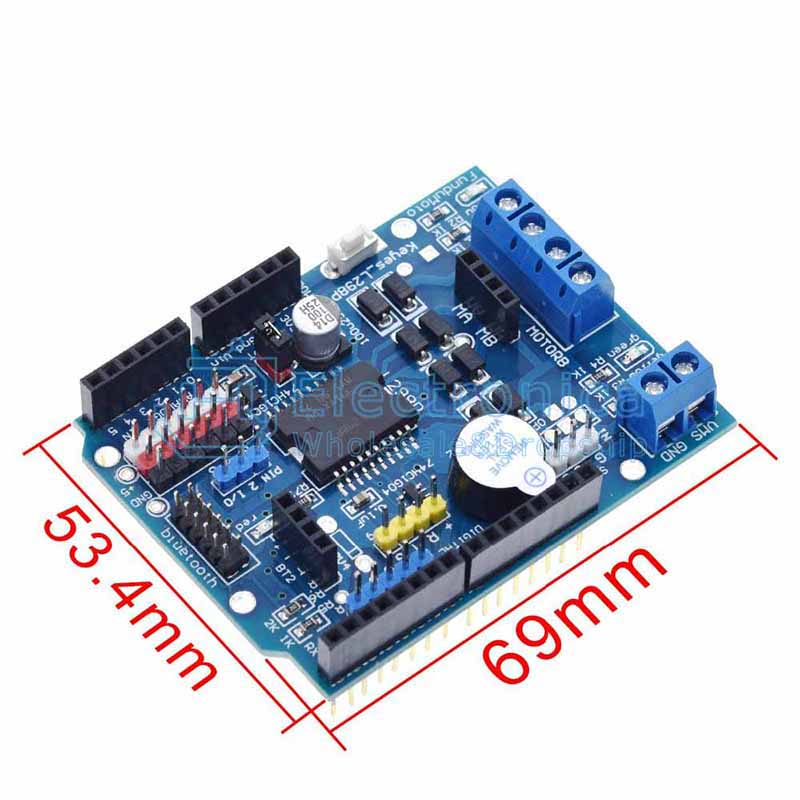

1. Size: 68 * 53mm
2. Logical part of the input voltage VD: 5V
3. Driven part of the input voltage VS: VIN Input 6.5 ~ 12V, PWRIN 4.8 ~ 35V
input
4. Logical part of the work current: <36mA
5. Driven part of the operating current : <2A
6. Maximum power dissipation: 25W (T = 75 Celsius)
7. Control signal input level: high 2.3V low -0.3V
8. Working temperature: -25 + 130 Celsius
9. hardware interface: 5.0mm pitch terminal
10. Belt clip and can be controlled via front row access signal
11. Pin occupancy: D4 ~ D7 direct drive motor
12. Supports PWM / PLL mode motor speed control

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

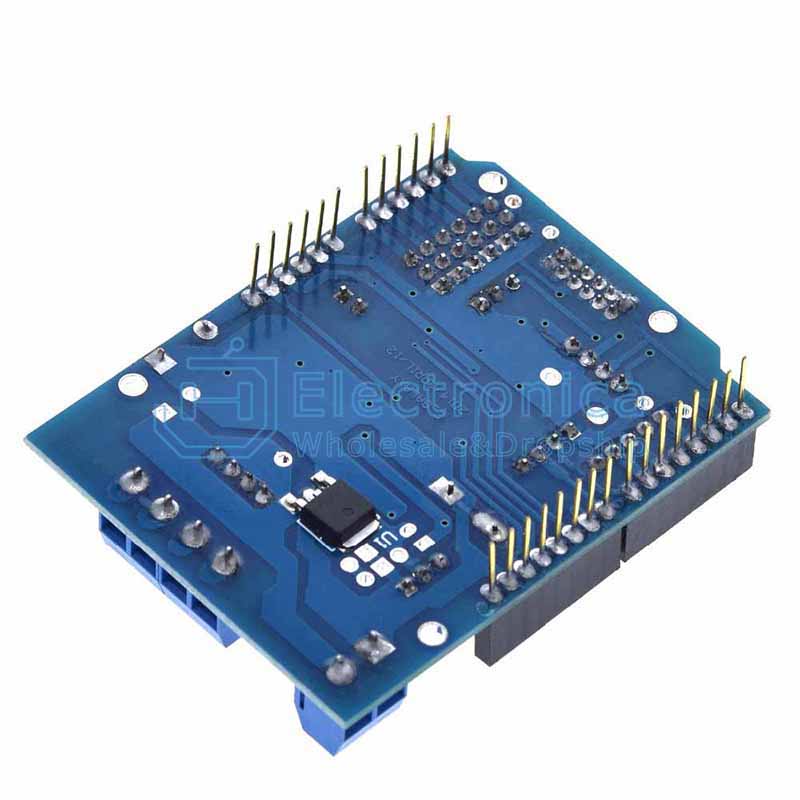

L298P Motor Shield DC Motor Drive Module

SKU : YXC096 Brand : JH Stock

Price : $ 3.67

100 +: $3.67500 +: $3.671000 +: $3.67
