Description
Working voltage:DC5-36V
Control current:30A (maximum required heat sink, room temperature 15A 400W)
Quiescent current:15mA
Working current:50mA
Trigger signal source:High level trigger (3.0V~24V)
Size:60*39*14mm
Product Features:
1. The working voltage of the timer relay is 5-36V DC. The dual MOS design supports outputs of over 15A and 400W, suitable for most devices

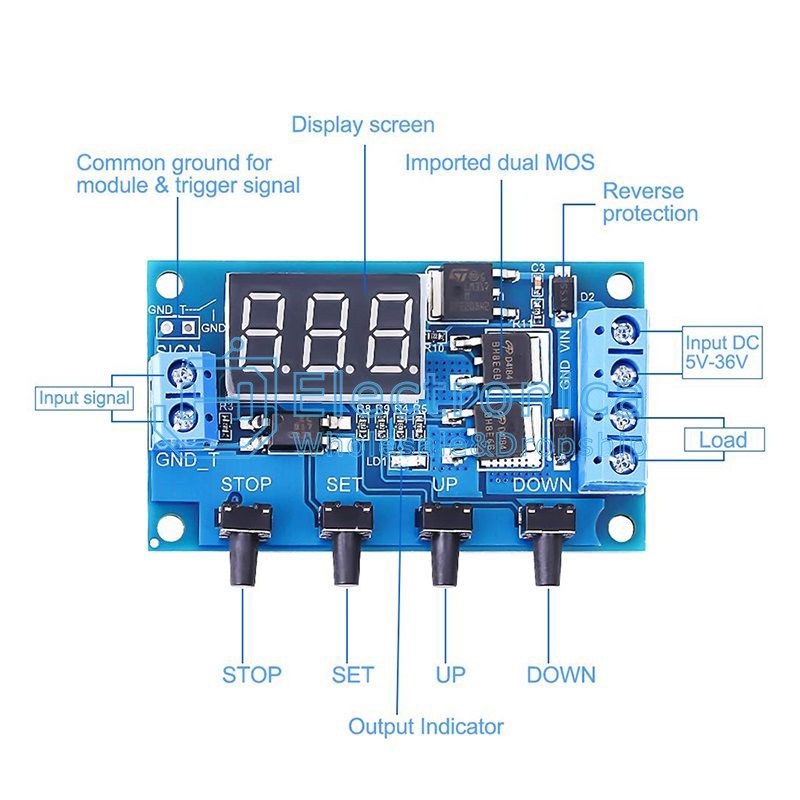

2. The timer relay module has timing, delay, and cycle control functions, supports high-level triggering, and achieves infinite fast and frequent switching of the circuit. The isolator effectively avoids electromagnetic interference, has no sparks or noise, and has a longer service life. The digital tube display screen clearly and intuitively displays the current mode and parameters
After 3.5 minutes without any operation, the digital display will automatically turn off, and all option settings will be automatically saved without worrying about data loss (any key wakes up). Users can independently set OP, CL, and LOP parameters
4. Reverse connection protection and emergency stop function effectively prevent equipment damage and user injury due to incorrect terminal connection
5. With the delay relay switch module, users can easily control motors, bulbs, LED lights, DC motors, micro water pumps, solenoid valves, smart homes, and more
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

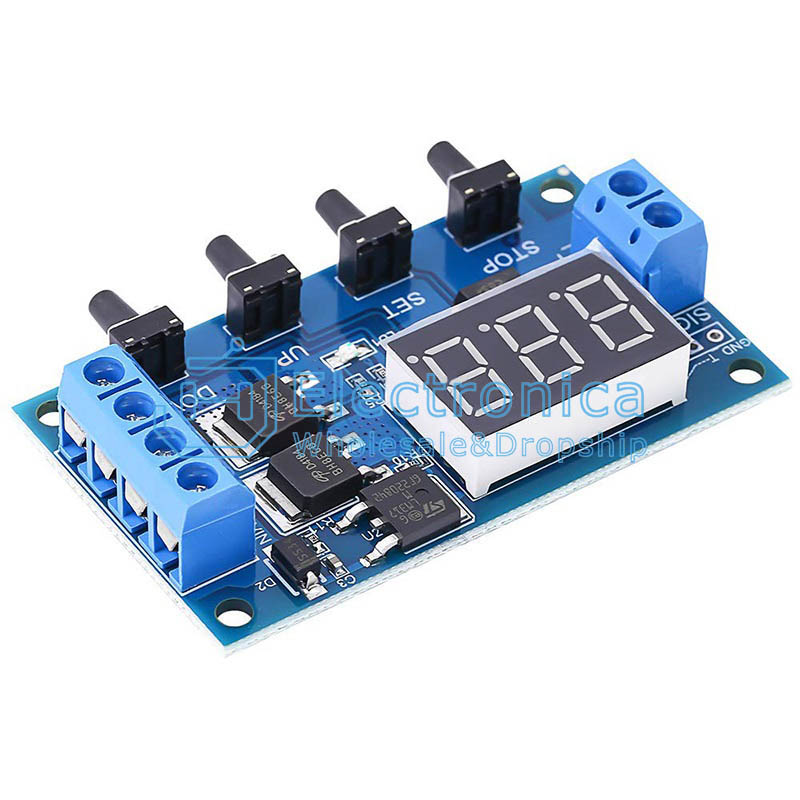

DC5V-36V Dual MOS Digital Delay Relay
SKU : YXS1317 Brand :
