Description
Item Type: CW / CCW Controller Module
Optional input voltage: DC 5V (5V version) DC 6-24V (12V)
Module operating current: forward 2mA, reverse 35-40mA
Charging voltage: equal to the output voltage
Charging current: maximum. 2A (motor less than 1A)

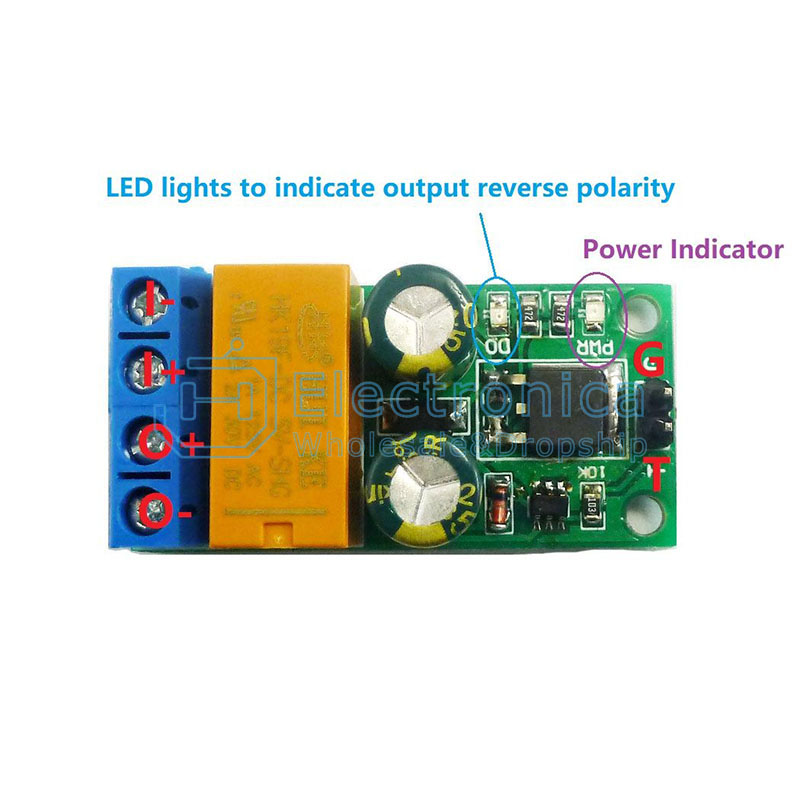

With power indicator and reverse polarity indicator
Control mode: pulse under control
Size: approx.43mm*21mm*16mm
Pin Description:
I +: power input +;
I-: voltage input-;
O +: power output + (reverse polarity output is-);
O-: power output- (reverse polarity output is +);
G: Trigger signal ground;
T: trigger signal input (low pulse 0.2-2 seconds).

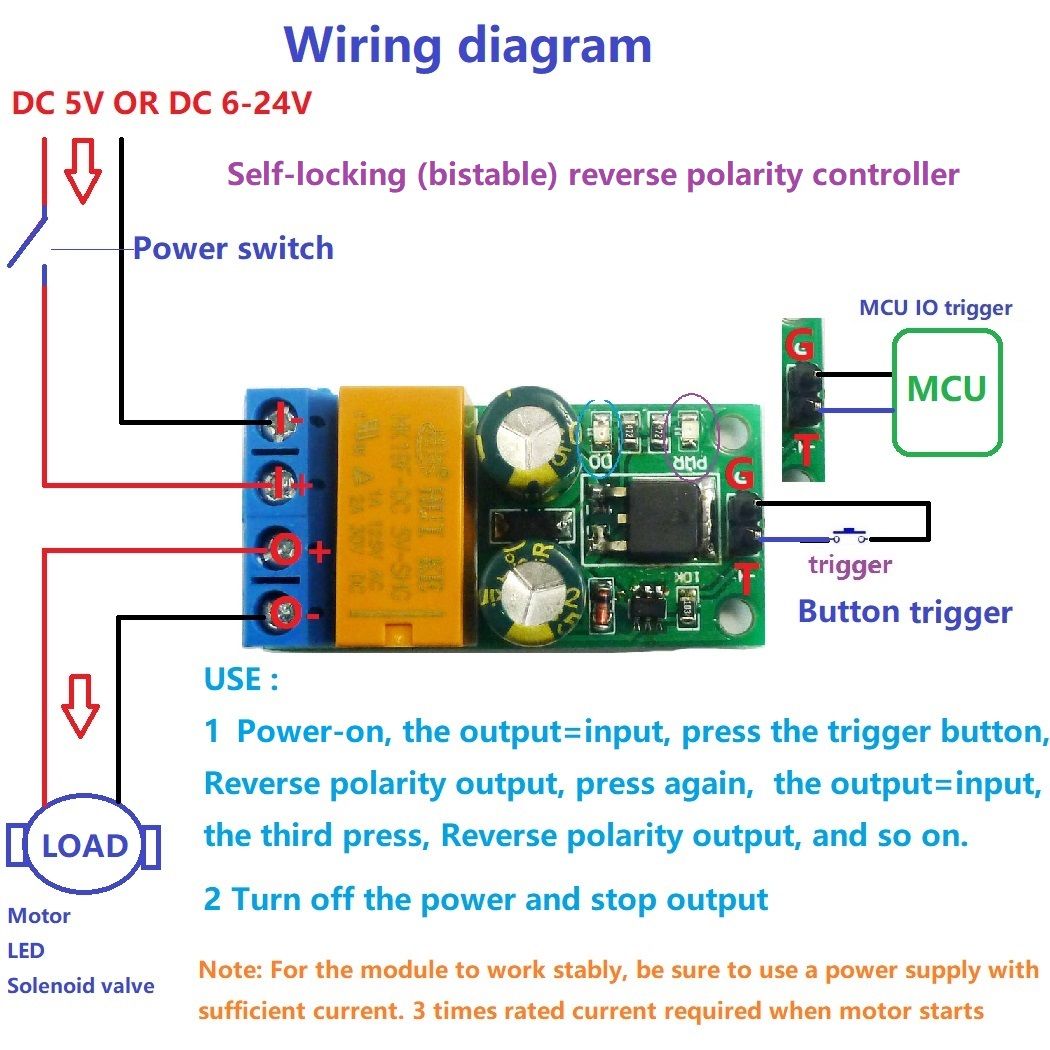

How to use:
1. Power on, output = input, press the button, reverse polarity output, press again, output = input, third press, reverse polarity output, etc.
2. Turn off the power and stop the output
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

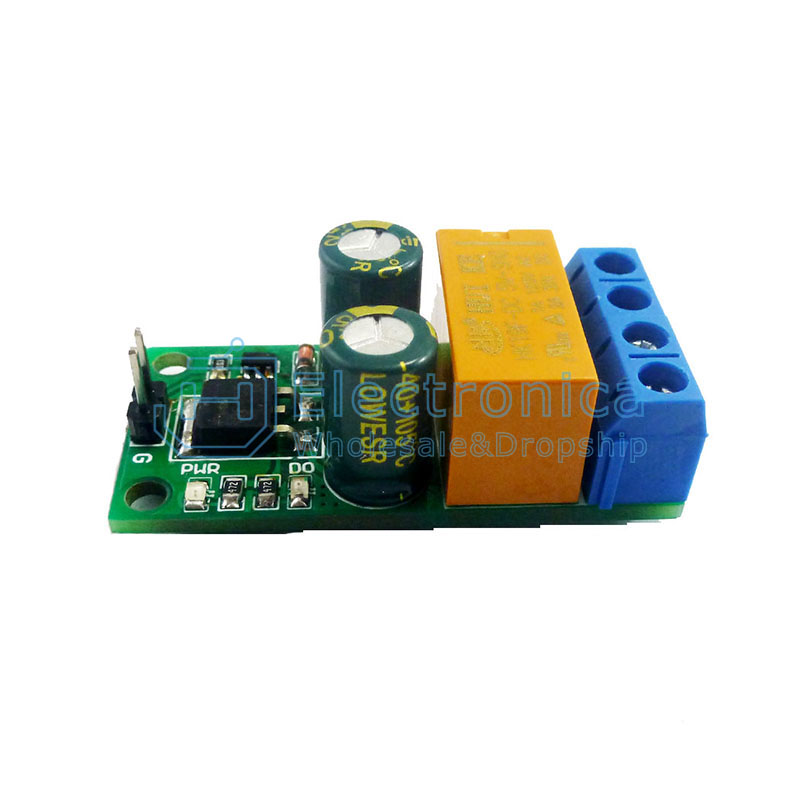

DC5-24V DR55B01 Bistable Self-Locking Reverse Polarity Relay Module
SKU : YXB683 Brand : JH Sourcing
