Description
1. Working voltage:wide voltage 5 ~ 30V, two power
supply interface

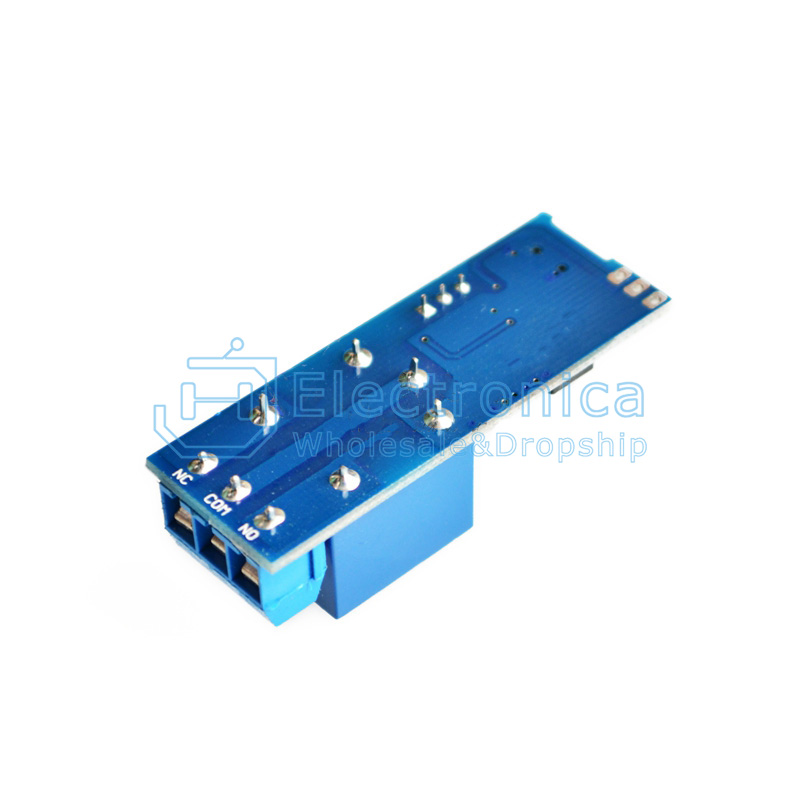

2. Operating mode: the initial state, module outputs:
normally open (NO) and the common terminal (COM)
is disconnected, normally closed (NC) and the common terminal (COM) connected.
Providing a low pulse signal, or touch trigger key,
relay and indicator lights, the output of the state: normally open (NO) and Common (COM) connected, normally closed (NC) and the common terminal
(COM) is disconnected.
After 0-24 seconds (this time can be adjusted
according to your needs) relay off,back to the state before the trigger.
3.The length of timing adjustment by potentiometer,
default 0-24 seconds.
If you need more time, you can replace the larger capacitor (C2) or potentiometer.
Delay time T = 1.1RC.
4. With a relay indicator.
5. The module can control: 10A / 250VAC,
10A / 30VDC load.
6. The relay has a freewheeling protection.
7. Dimensions: 5.4 * 1.9 * 1.8cm (L * W * H)
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

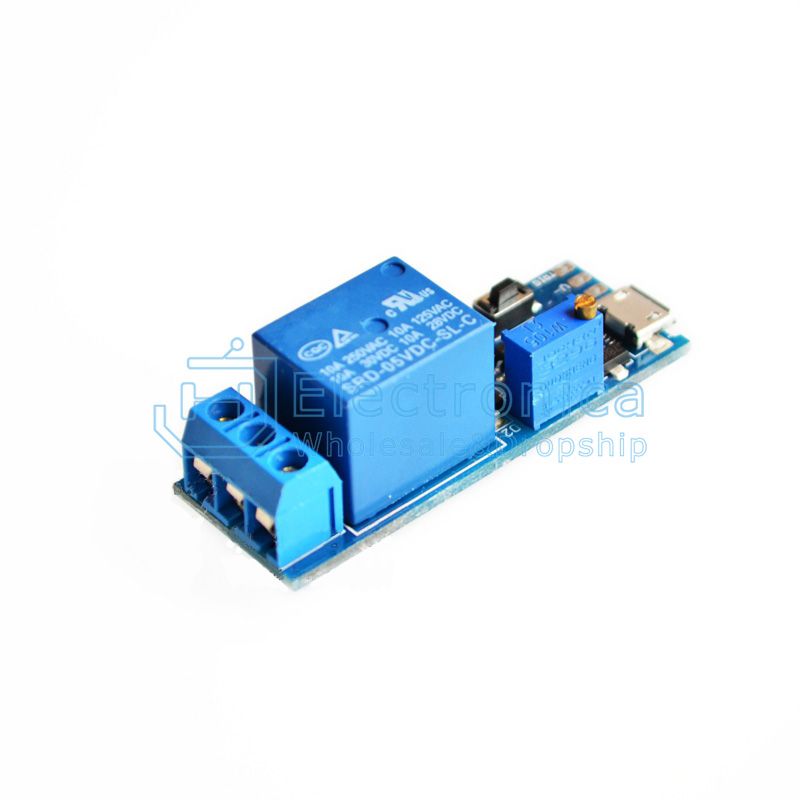

5V-30V Micro USB Power Adjustable Delay Relay Timer Control Module
SKU : YXK354 Brand : JH Stock
