Description
Power Supply: 6V~30V
Trigger signal source: High level(3.0V~24.0V), Low level(0.0V ~0.2V), Switch signal
Maxmum Output load: DC 30V 5A and AC 220V 5A
Static Current: 15mA
Operating current: 50mA
Service life: more than 100,000 times
Working temperature: -40-85°C

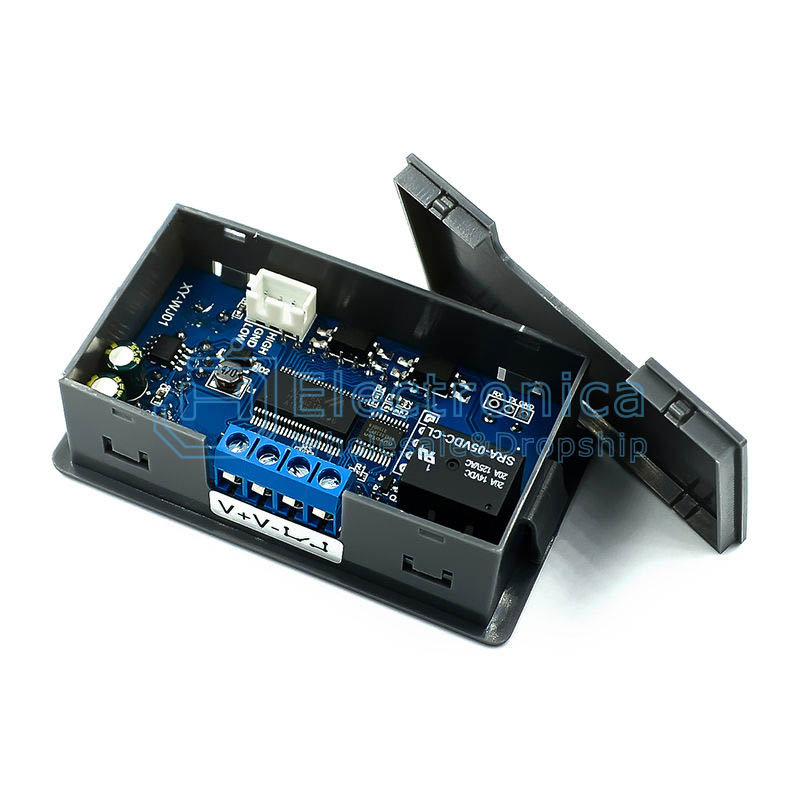

Optocoupler isolation, strong anti-interference ability, industrial grade circuit board, after power set parameters memory forever.
Size: 7.1*3.9*2.5cm
Color: Gray&black
Product Highlights:
1.Display with LCD two columns, Can display parameters directly;
2.Trigger mode: high and low level,switch quantity.meet most of the needs.
3.Power supply: 6~30V.
4.Parameters can be modified via UART.
5.Stop button to provide emergency stop function.
6.5 minutes without any operation into a low-power state. Any action wake up.
7.OP/CL/LOP params can be modified individually
8.All parameters are automatically saved by power off.
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

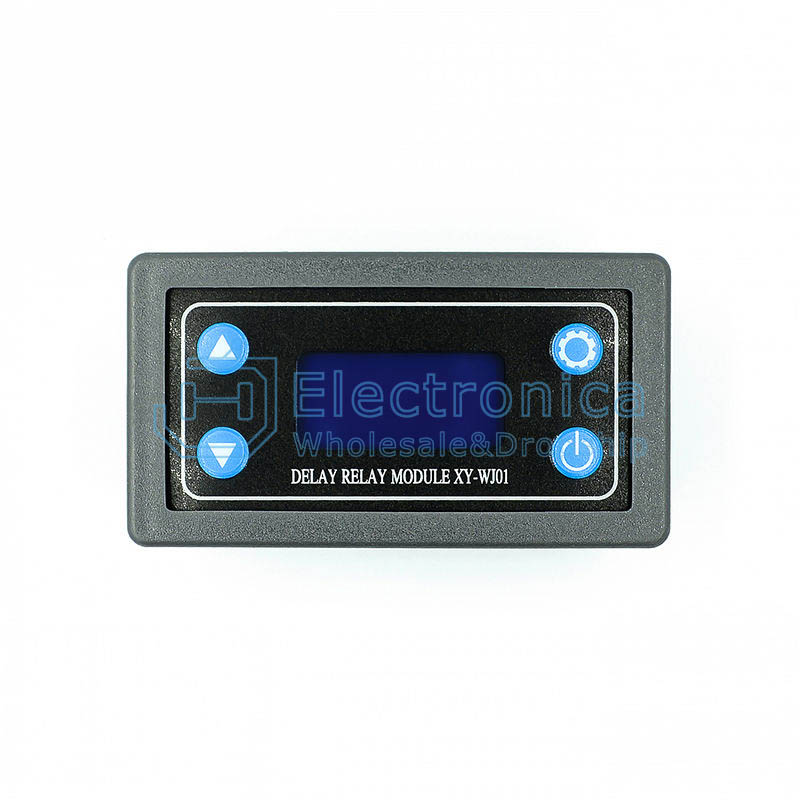

XY-WJ01 LED 1 Channel Delay Relay Module
SKU : YXA699 Brand : JH Stock
