Description
Power supply mode:DC
Relay Type:Time Relay
Size:70*20mm
Voltage range:5V 12V 24V
Weight:20g
This module uses a microcontroller as the main control core, with high time accuracy. The microcontroller has a built-in watchdog circuit and a dedicated reset chip, ensuring stable and reliable operation
Single mode:
1. After being powered on, it does not act. After triggering, the relay is connected, and after reaching the time, it is disconnected
2. During the delay process after the relay is turned on, triggering again will immediately interrupt the delay
Loop mode:
1. After being powered on, it does not act. After triggering, the relay is connected and disconnected after reaching T1 time. Connect after reaching T2 time. This cycle. T1 and T2 are set separately by two adjustable resistors
2. During the delayed work process, if triggered again, the delay will be immediately interrupted
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods

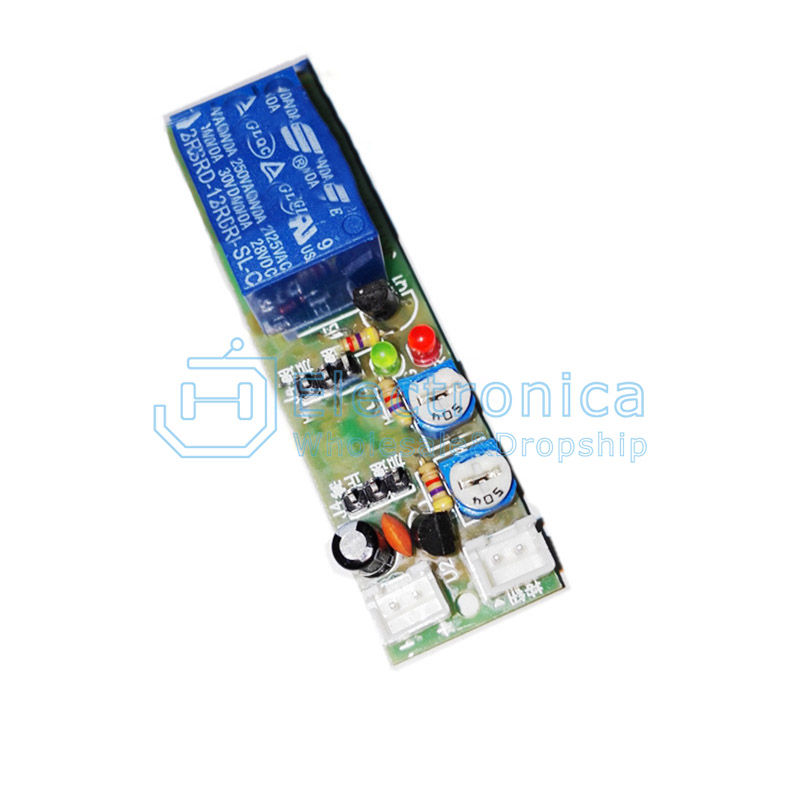

JK11 Infinite Loop On-Off Delay Relay Module
SKU : YXS312 Brand : JH Sourcing
Style1：
Style2：
