Description

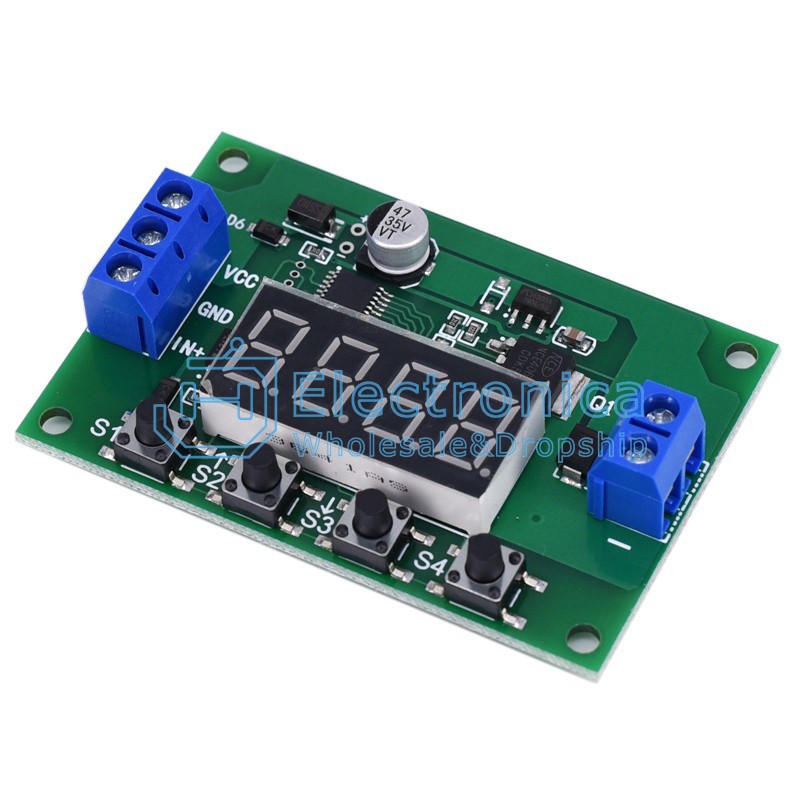

Multifunctional time relay module, 5-30V wide voltage power supply, MOS transistor control output, contactless, non igniting, and low interference. Up to 10A control capability. Up to 31 working modes, meeting various testing and automatic control applications, with adjustable delay time from 0.01 seconds to 999 minutes. The triggering port can be triggered by a voltage signal or by a button
Module Parameters:
Supply voltage:5-30V
Trigger terminal voltage:DC3.3-30V (can also be triggered with a button)
Maximum control current:10A
Module size:63*42*14mm
Instructions for Use:
Press and hold the S1 key while setting the working parameters. After 0.5 seconds, the display screen will display P-xx. Press S2 and S3 to change the working mode. After selecting the working mode, short press the S1 key to enter the A time setting, and the screen displays Axxx. At this time, press the S2 and S3 keys to modify the A time parameters. Short press the S2 and S3 keys to add or subtract 1, long press to quickly add or subtract 10, and press the S4 key to set the position of the decimal point. After setting the A time, press the S1 key to set the B time. The screen displays bxxx. At this time, press the S2 and S3 keys to modify the B time parameters. Short press the S2 and S3 keys to add or subtract 1, long press to quickly add or subtract 10, and press the S4 key to set the position of the decimal point. After setting the B time, press the S1 key again to set the C time, and the screen displays Cxxx. At this time, press the S2 and S3 keys to modify the C time parameter. Short press the S2 and S3 keys to add or subtract 1, long press to quickly add or subtract 10, press the S4 key to set the decimal point position. After setting the C time, press the S1 key to enter the maximum setting of the d parameter. The d parameter is a frequency parameter, ranging from 1 to 999. After setting the d parameter, press the S1 key once to exit the setting state and save all parameters
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
DC 5V-30V Multifunctional Time Relay
SKU : YXS1302 Brand :
