Description
Specification:50×35×22mm
Supply voltage:DC 12V
Standby current:2.7mA
Working current:68mA(current after the trigger switch is turned on)
Output control voltage:DC 0-14V, AC 0-125V
Output control current:<11A
Working temperature:-20-70℃
Working Principle:
This switch has a power outage delay shutdown function. The 12V power supply port is a standby power supply, which can generally be connected to a battery or other adapter power supply. The trigger port is used to connect the detected signal or whether the power supply voltage is disconnected, in order to achieve relevant actions
Firstly, we connect to the standby power supply of 12V. If there is voltage connected to the trigger port, the switch will open. When the trigger port voltage is disconnected, the switch will delay for a period of time and automatically close the switch; If there is voltage at the next trigger port, the switch will open and this cycle can be completed
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

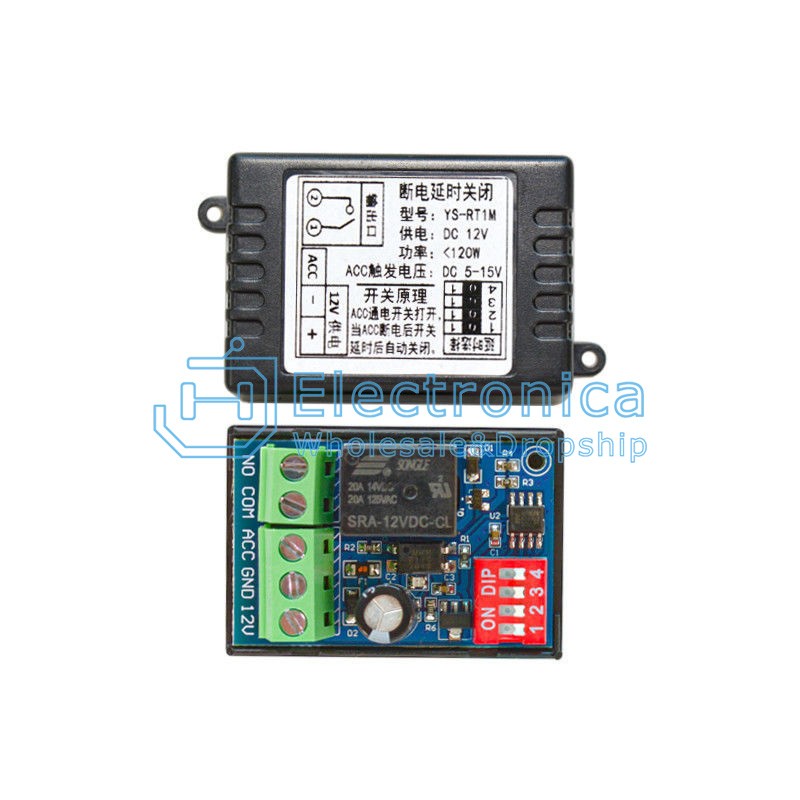

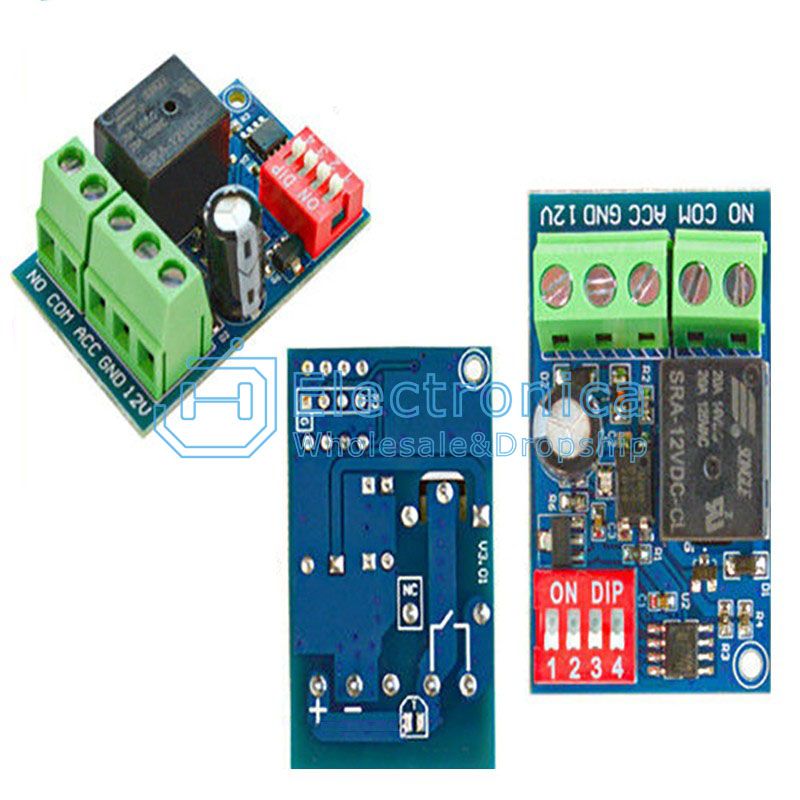

DC 12V Car Power-off Delay Switch
SKU : YXS1314 Brand :
Style：
.12V(1).jpg)
12V

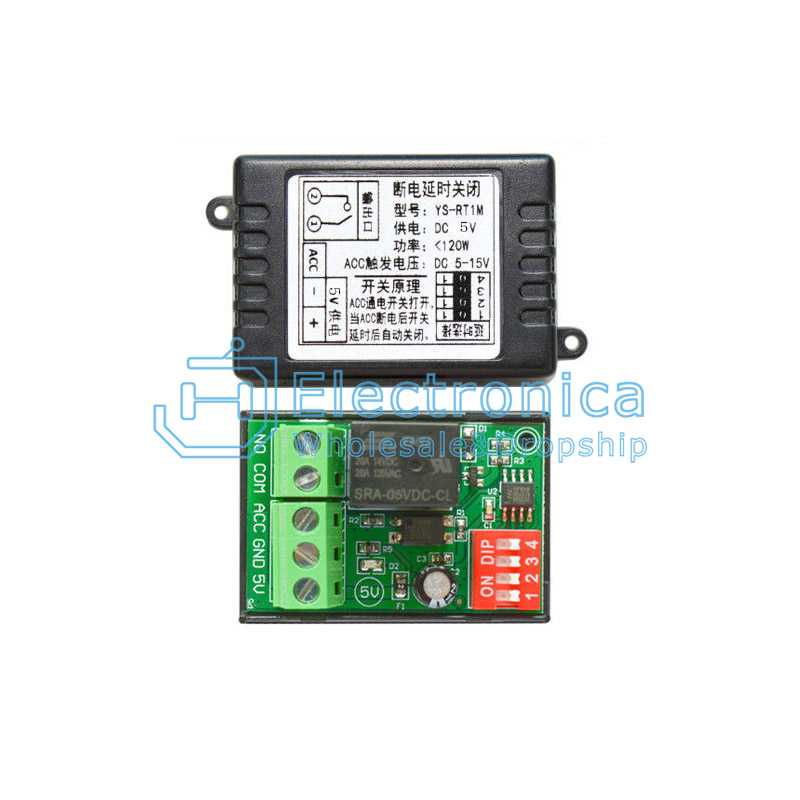

5V
