Description

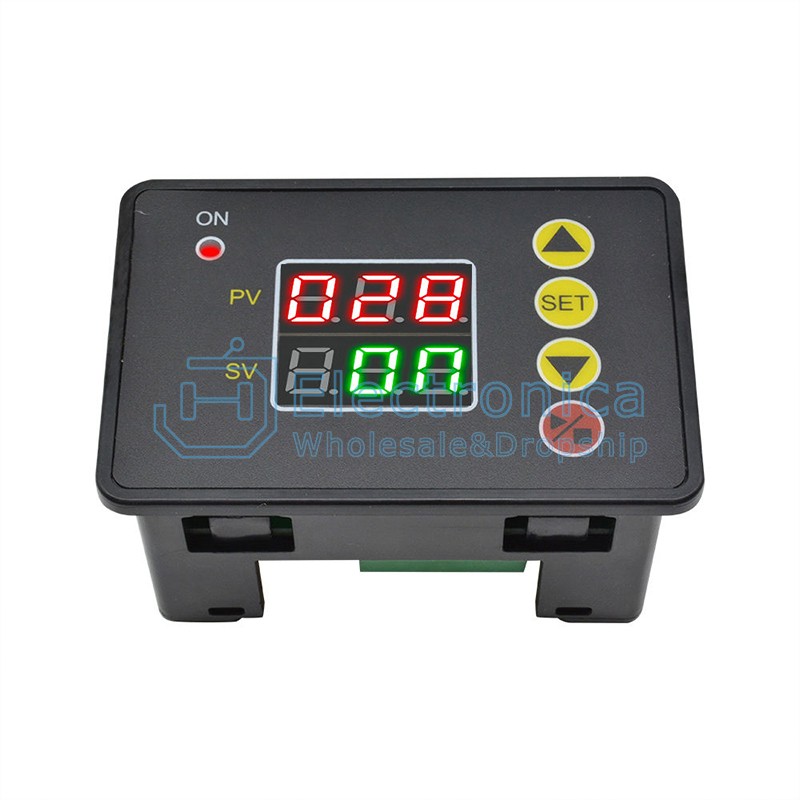

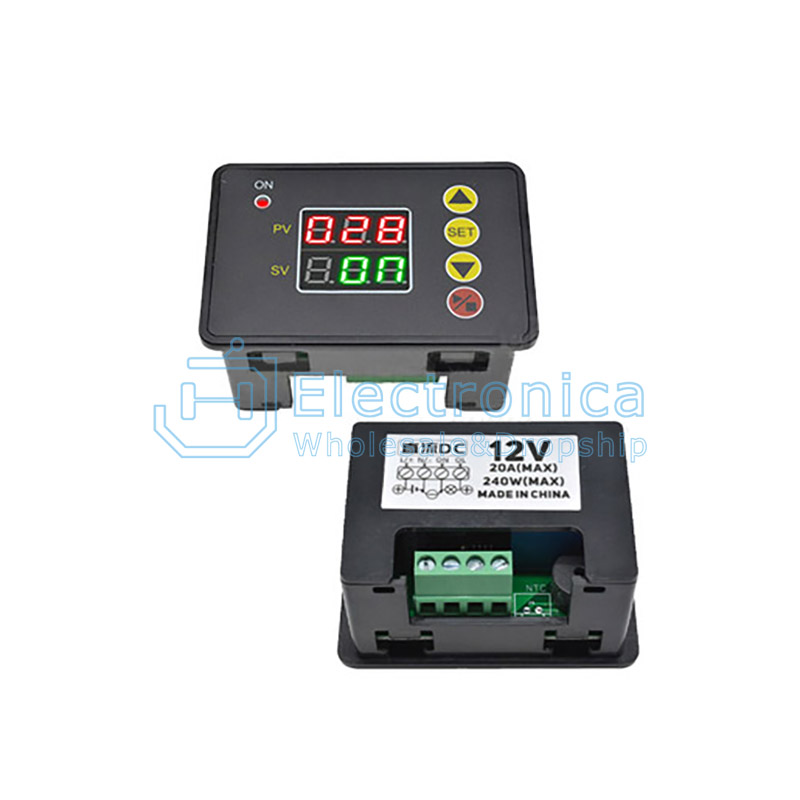

Display panel: 79mm * 43mm
Installation: 71mm * 40mm * 24mm
Color: Black
System Power: AC110-220V, DC12V, DC24V
Timing range:0-999S/0-999M/0-999H
Product features: timer / delay / cycle / covering 18 kinds of functions
Maximum operating current: 10A
Maximum power: 1500W

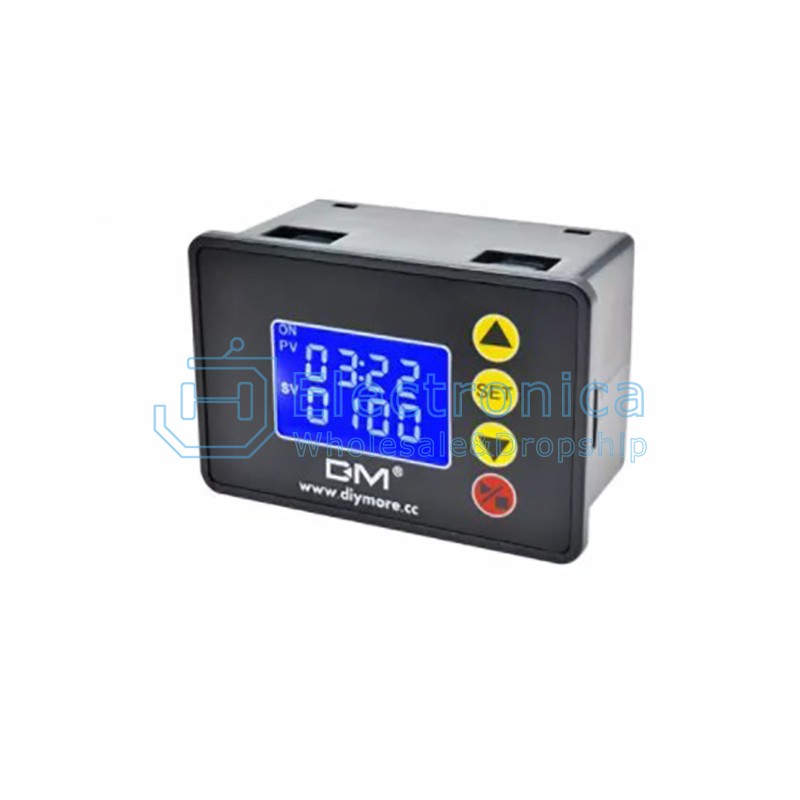

Type 2（LCD）
Timing range: 00:00~99:59, 0000~9999 S
Power: DC12V/20A /240W (Max) DC24V/20A/480W (Max) AC110V~220V /10A/2200W (Max)
Product size: 67×45×34mm
Hole size: 63×42mm

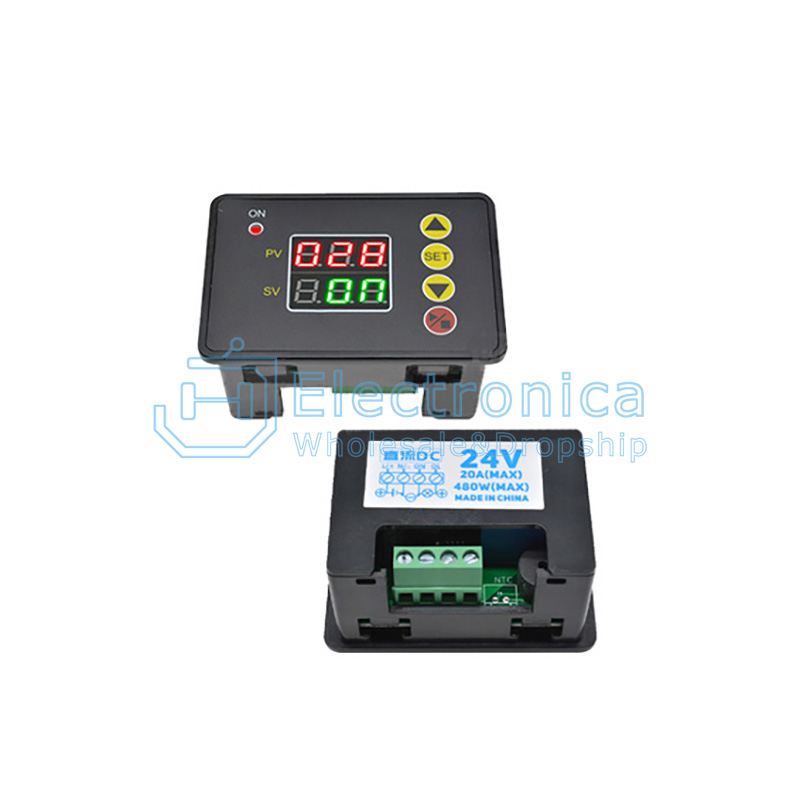

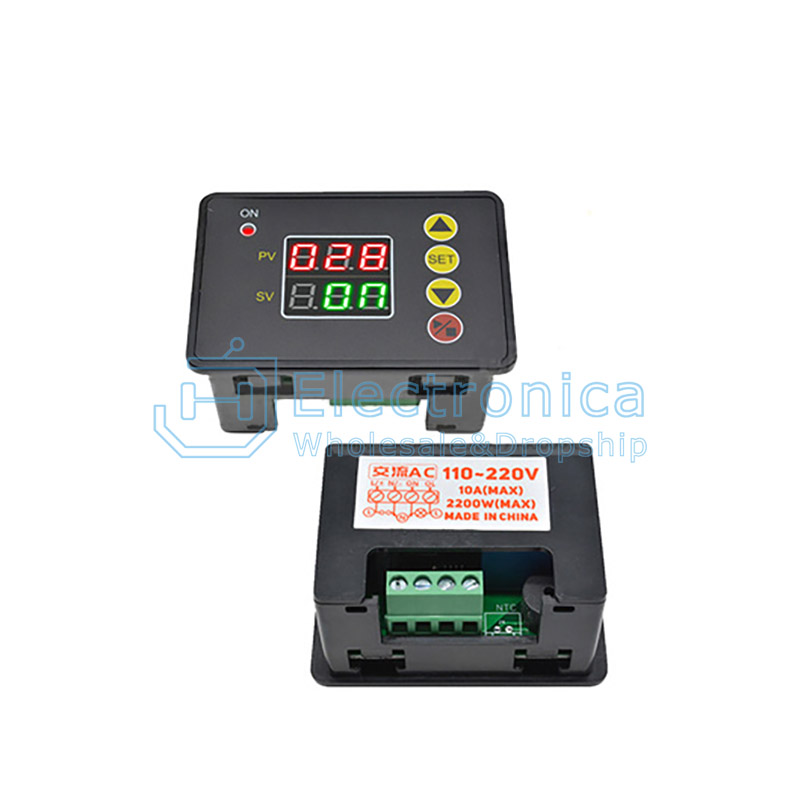

Type 3(Nixie tube)
Operating Voltage: D12V/DC 24V/AC 110-220V
Control circuit voltage: DC 12V/DC 24V/AC 110-220V
Relay carrying power: 240W/480W/2200W
Recommended power: ＜Relay carrying power×80%
Relay type: Normally open relay
Power consumption: ＜1W
Relay service life: 100000
Times Timing error: ±3s（in 24 hours）
Size: 67mm×45mm×34mm
Fixed way: Embedded Hole 63mm×42mm
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .
We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.
12V24V220V Dual Digital Display Time Delay Relay Module
SKU : YXB546 Brand : JH Sourcing
Style：

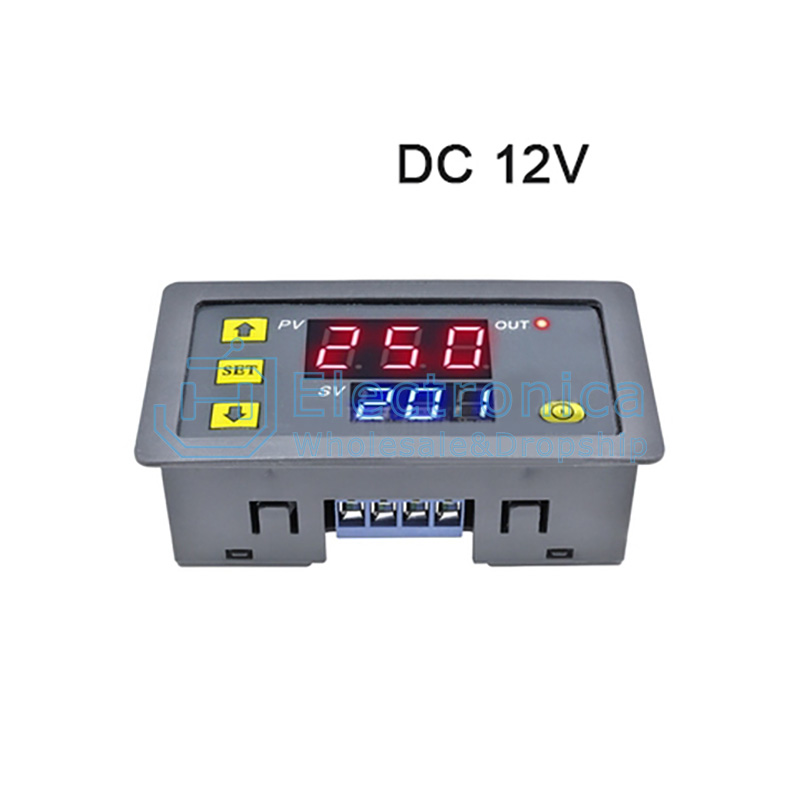

DC 12V

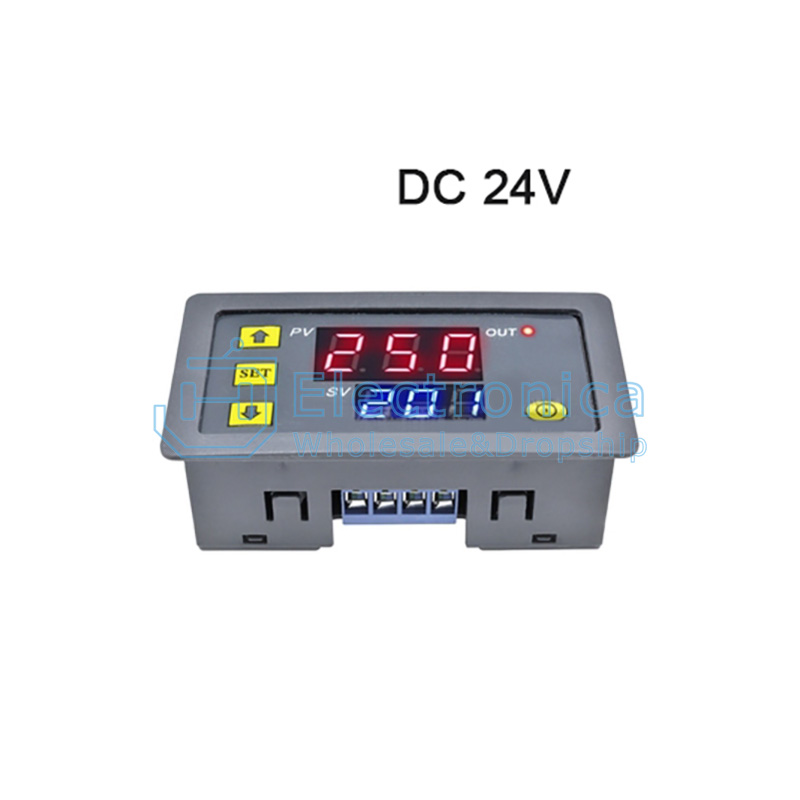

DC 24V

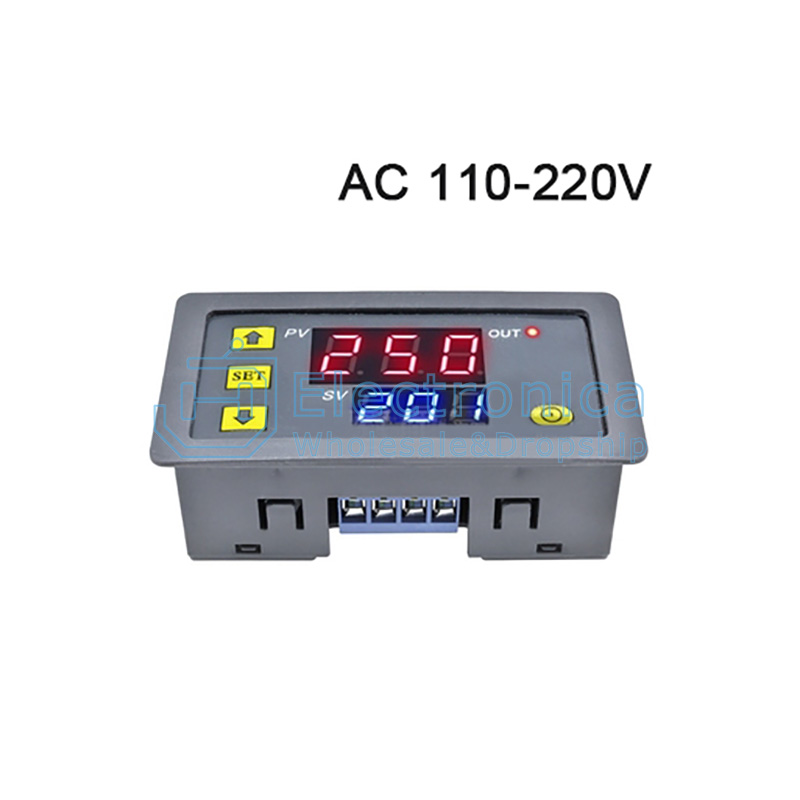

AC 110-220V

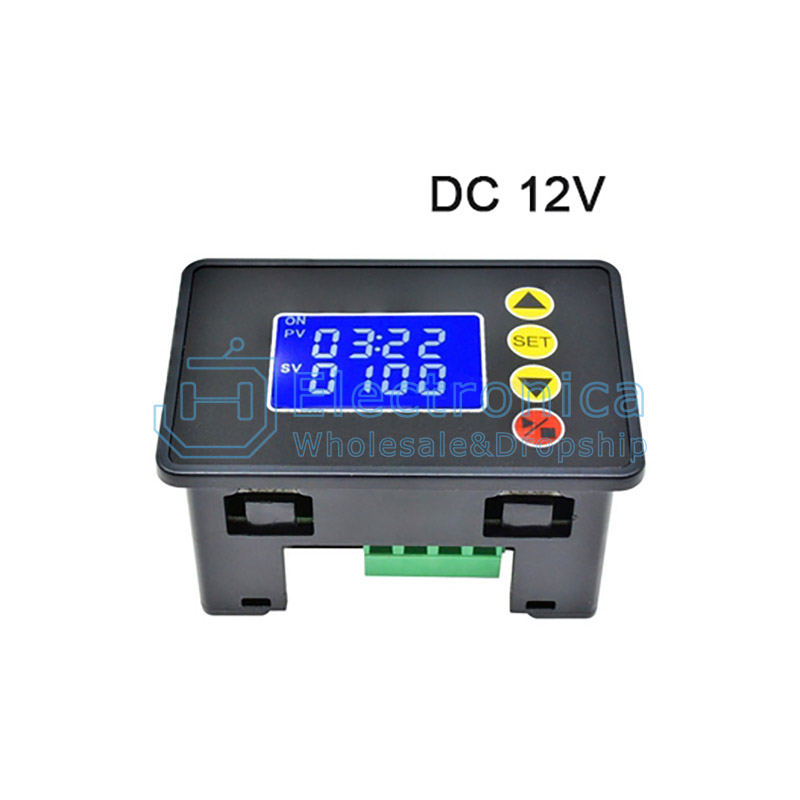

LCD display DC12V

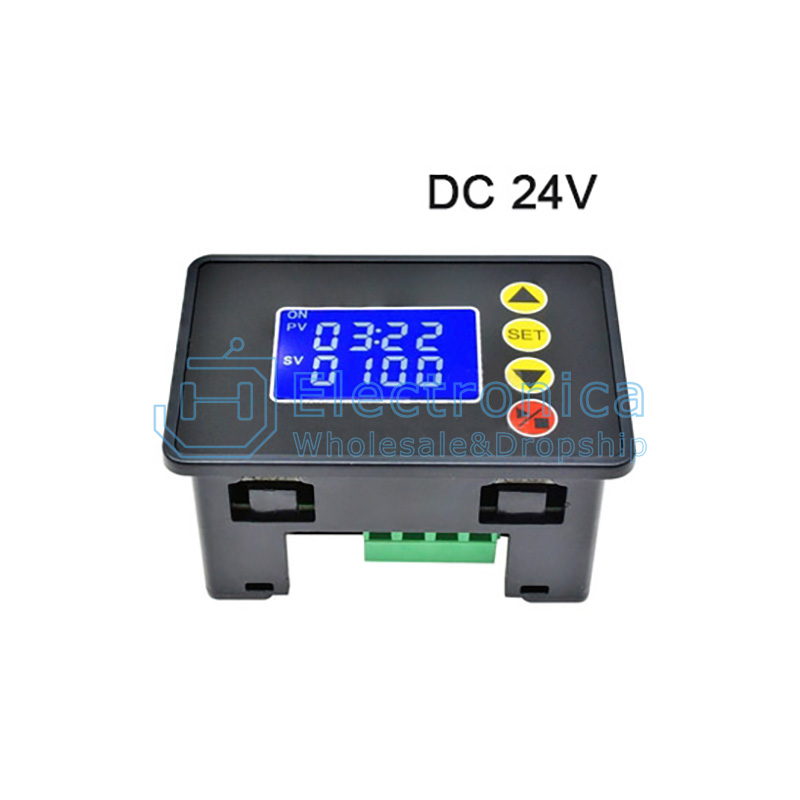

LCD display DC24V

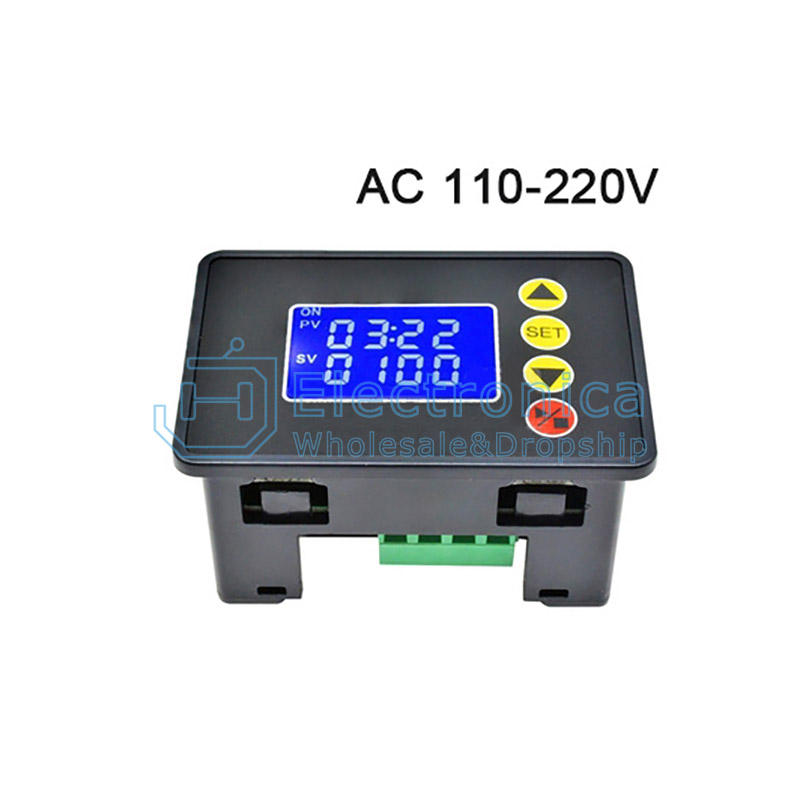

LCD display AC110-220V
Digital tube DC12v
Digital tube DC24v
Digital tube AC110v-220v

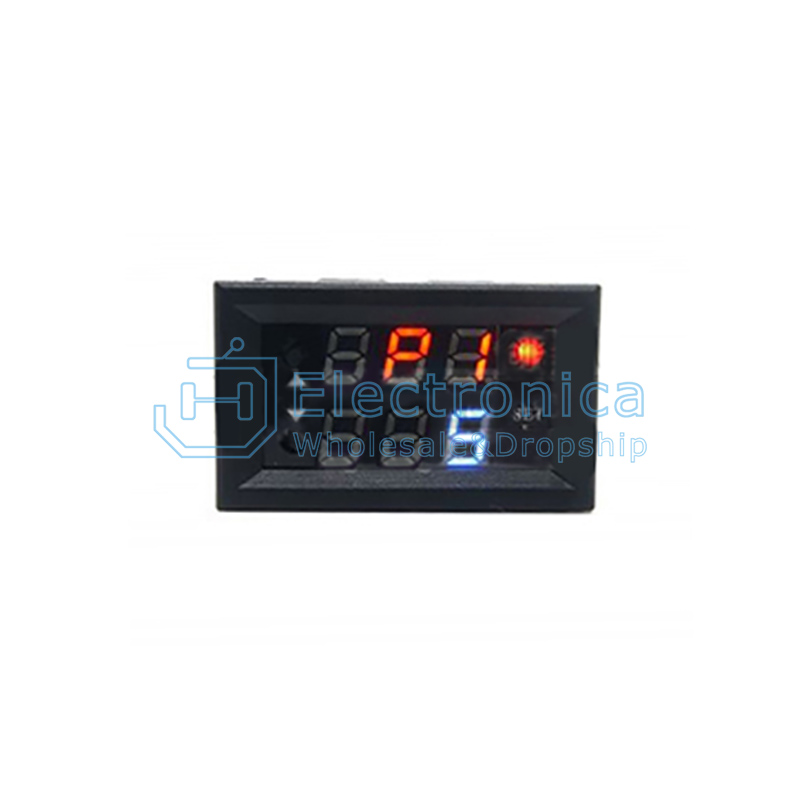

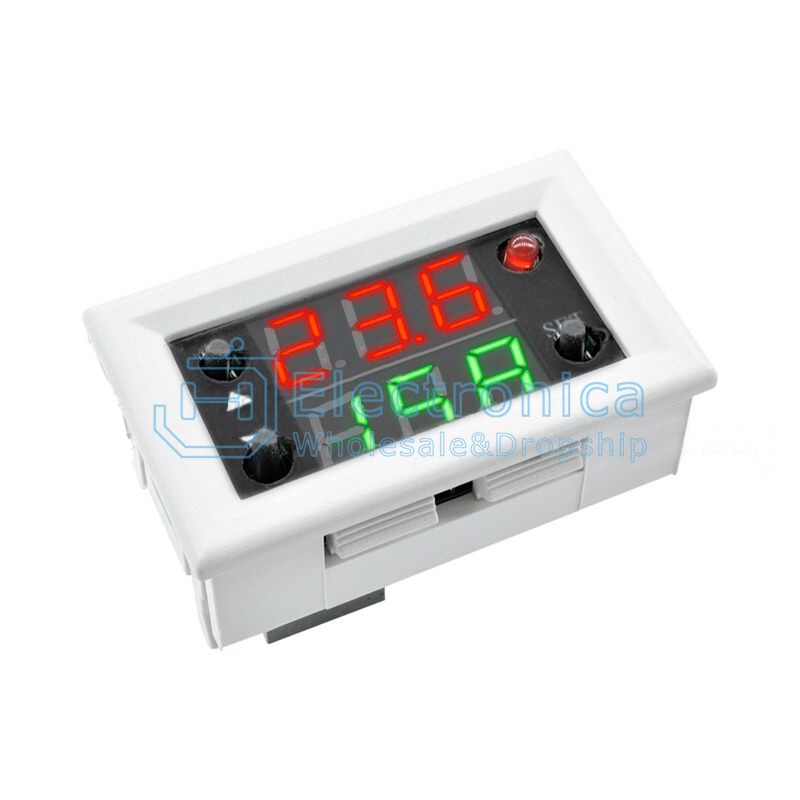

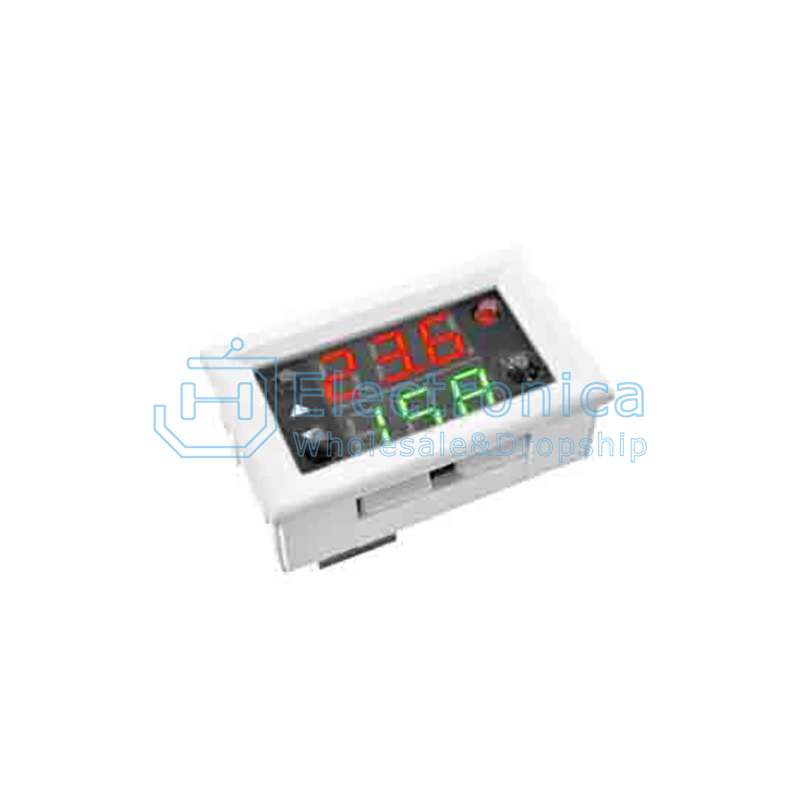

MiniDC 12V（white）
MiniDC 24V （black）
