Description
A control module designed specifically for triggering delayed disconnection, used for functional control of products such as health, industrial control, toys, etc
Trigger it and it will automatically stop after working for a period of time
After the module is connected to the power supply, the green indicator light flashes once, indicating normal power on. The relay is not operating at this time. When a trigger signal is received, the main control chip will immediately turn on the relay (green light on), and start a delay. After the time has passed, the relay will be disconnected
Note: After triggering the start (during the delay process), triggering again will not affect the timing. Triggering again during a delay is invalid
Product Features:
Using a dedicated time chip as the main control, the time is precise and stable
Adopting an adjustable resistor to adjust the time, with a delay range of 0-10 seconds/1-60 seconds/5-10 minutes. Multiple optional external trigger starts are availabel, and the module can be started with just a brief contact
Low level signal triggering, suitable for various NPN type sensors and sensors
Typical design working voltage is 12V DC
Standby power saving, only 3mA current
Power supply anti reverse protection. Connecting the positive and negative terminals of the reverse power supply will not work, nor will it burn out the module
This module adopts programmable chips that can be programmed and designed according to user functional requirements to meet personalized needs
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

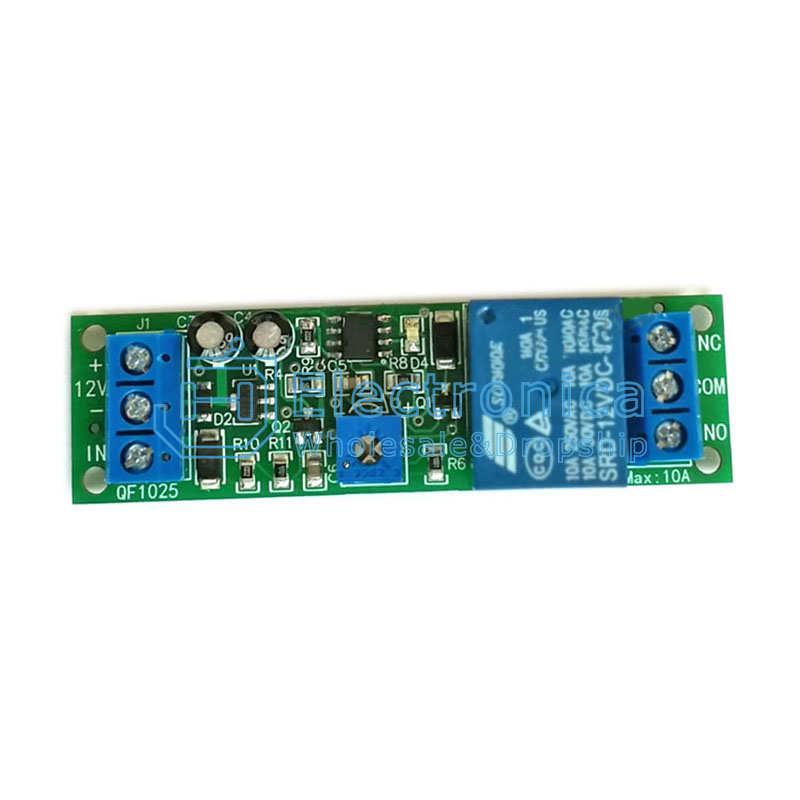

DC12V 10Minute Delay Relay Module
SKU : YXS1309 Brand :
Style：
.jpg)

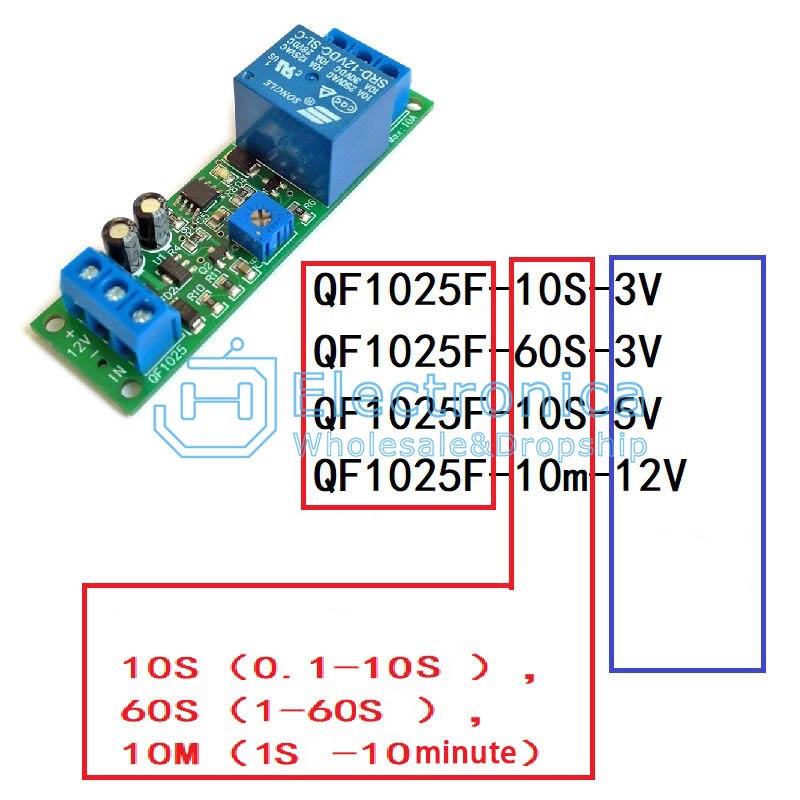

QF1025-10S-12V(adjustable for 10 seconds)
