Description
Voltage:220V AC (160V-250V can work)
Power consumption:1.0W
Time range:1-99 seconds or 1-99 minutes
Display method:2-digit red digital tube (remaining time is displayed during the countdown process, otherwise the set time is displayed)

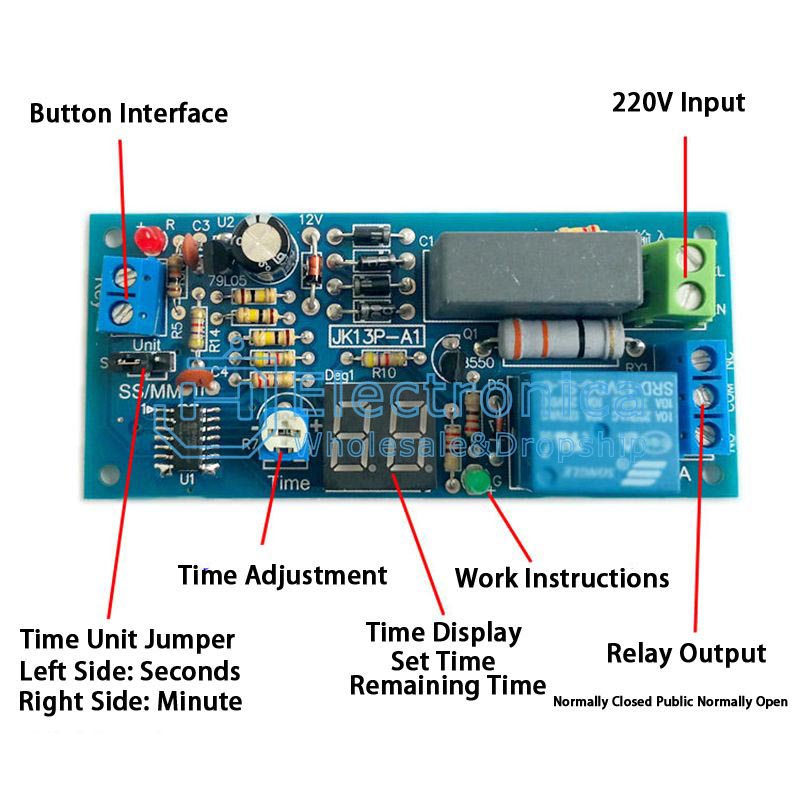

Time adjustment:Potentiometer (500K), dynamically displayed on the digital tube during adjustment
Accuracy:1(second or minute, based on jumper setting)
Error:2%
Triggering method:effective after short circuiting for more than 0.02 seconds
Output contacts:a set of normally open+normally closed
Output capacity:10A (voltage range 0-250V AC, or 0-30V DC)
Output method:passive (i.e. dry contact, not energized, switch quantity, equivalent to a switch)

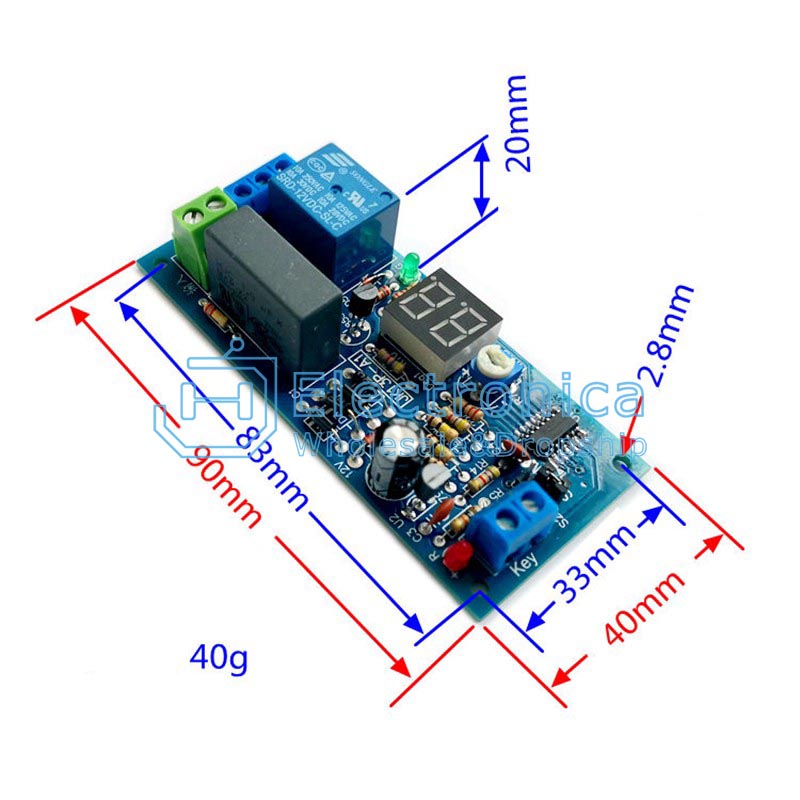

Size:90mm*40mm*20mm, as shown in the figure
Weight:40g
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

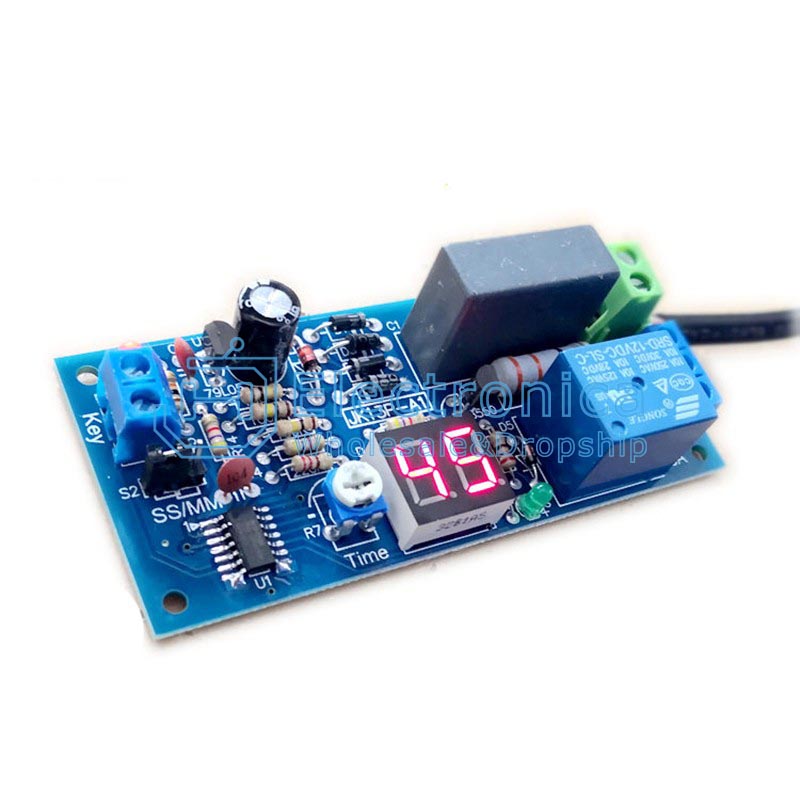

AC 220V Delay Relay Module
SKU : YXS1311 Brand :
Style：
JK13P-AR
