Description
.jpg)

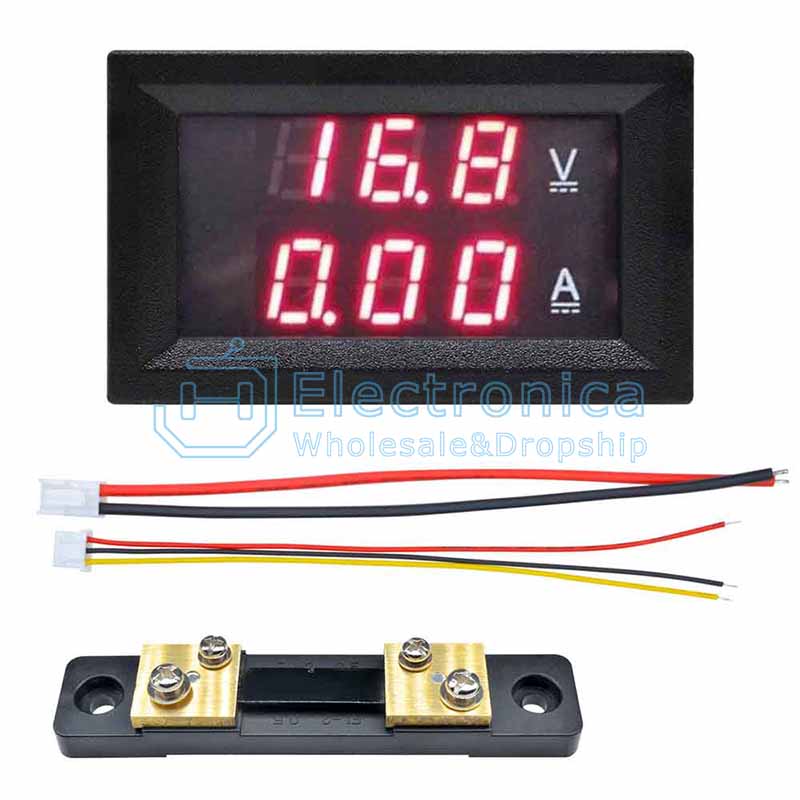

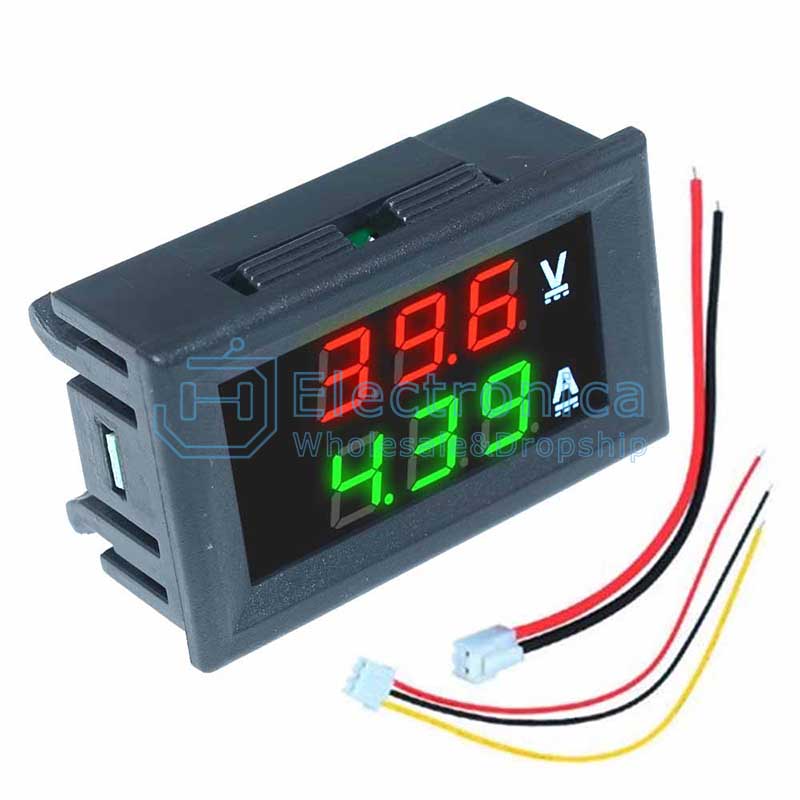

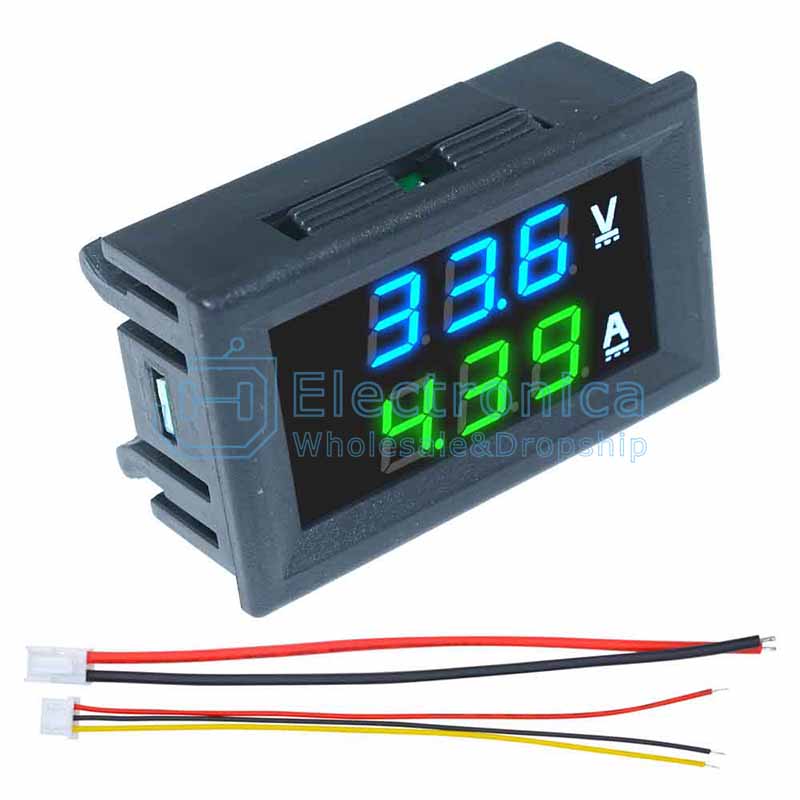

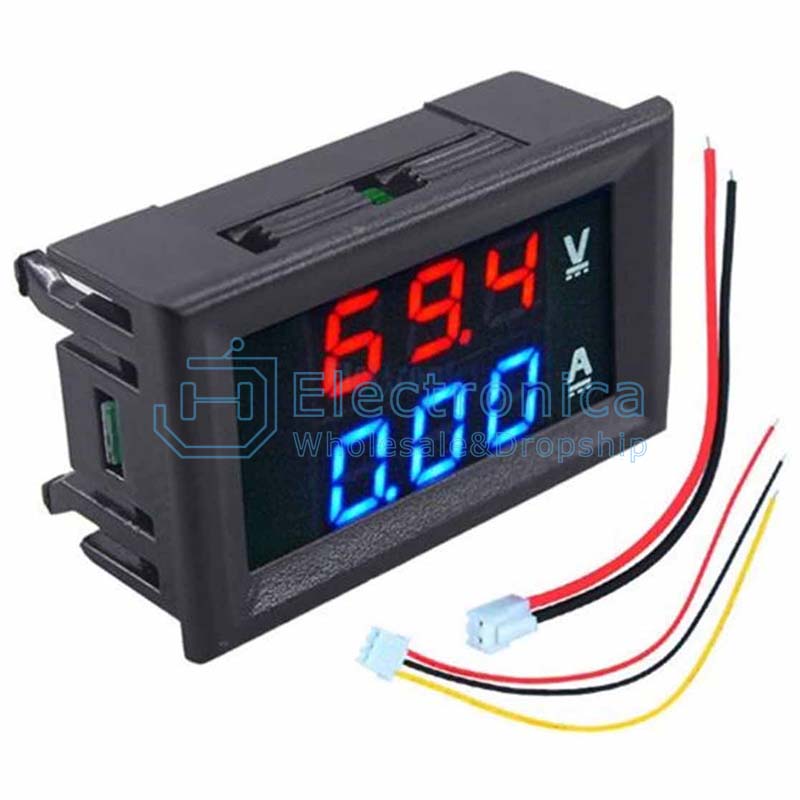

[3-digit display]
Display color: red + red, red + blue, red + green, green + green, green + blueVoltage measurement range: 0.0V-100V
Power supply range: DC4-28.0V
Working current: ≤20mA
Voltage error: ±0.1%
Current error: ±1%

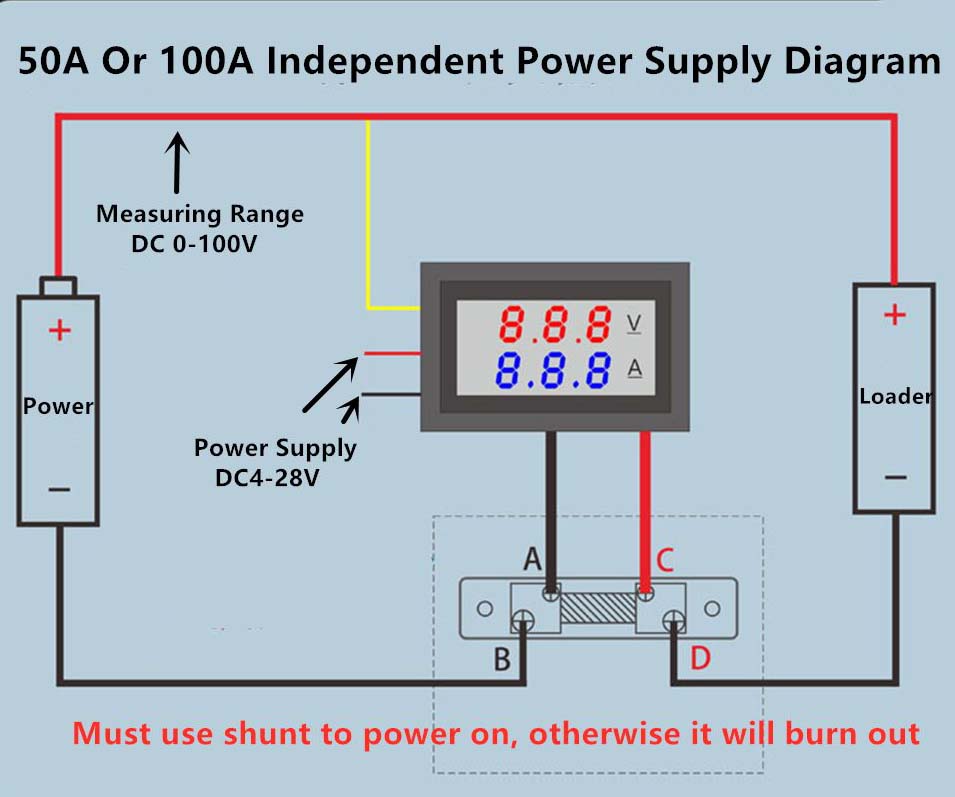

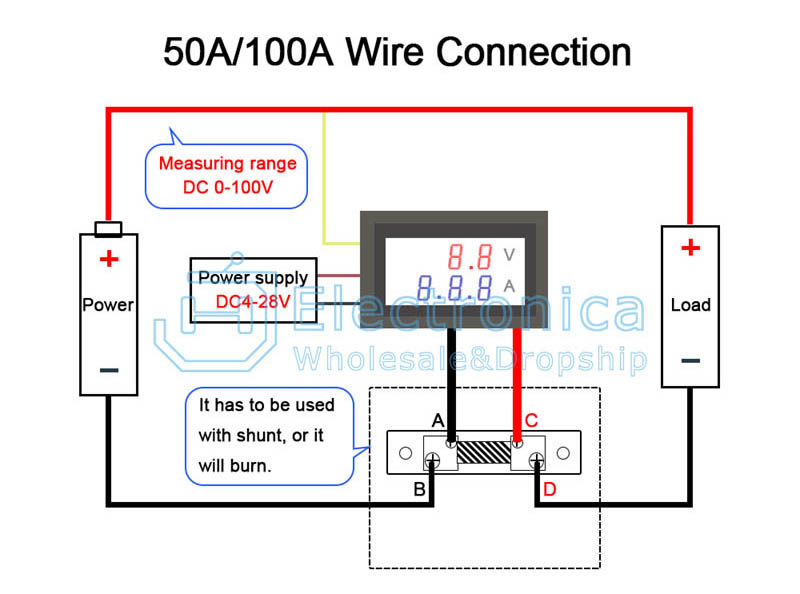

External shunt specifications: 75 milliohms
Refresh speed: about 300mS once
Display mode: dual three-digit 0.28" LED digital tube
Lead length: 15cm
Dimensions: 48 * 29 * 22 mm (length * width * thickness)
Mounting hole: 46 * 27 mm
Working temperature: -10℃~65℃

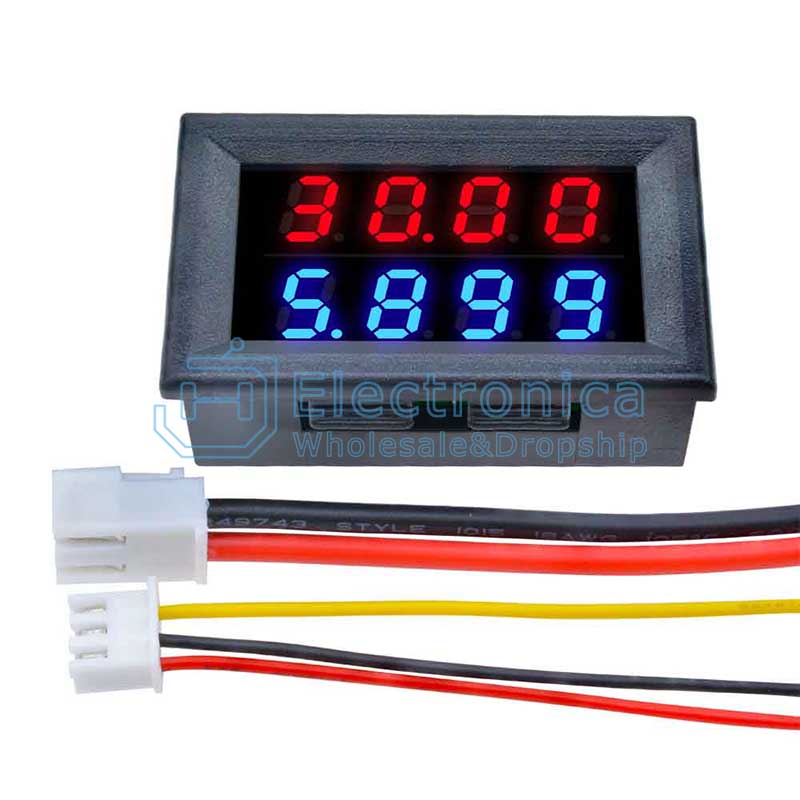

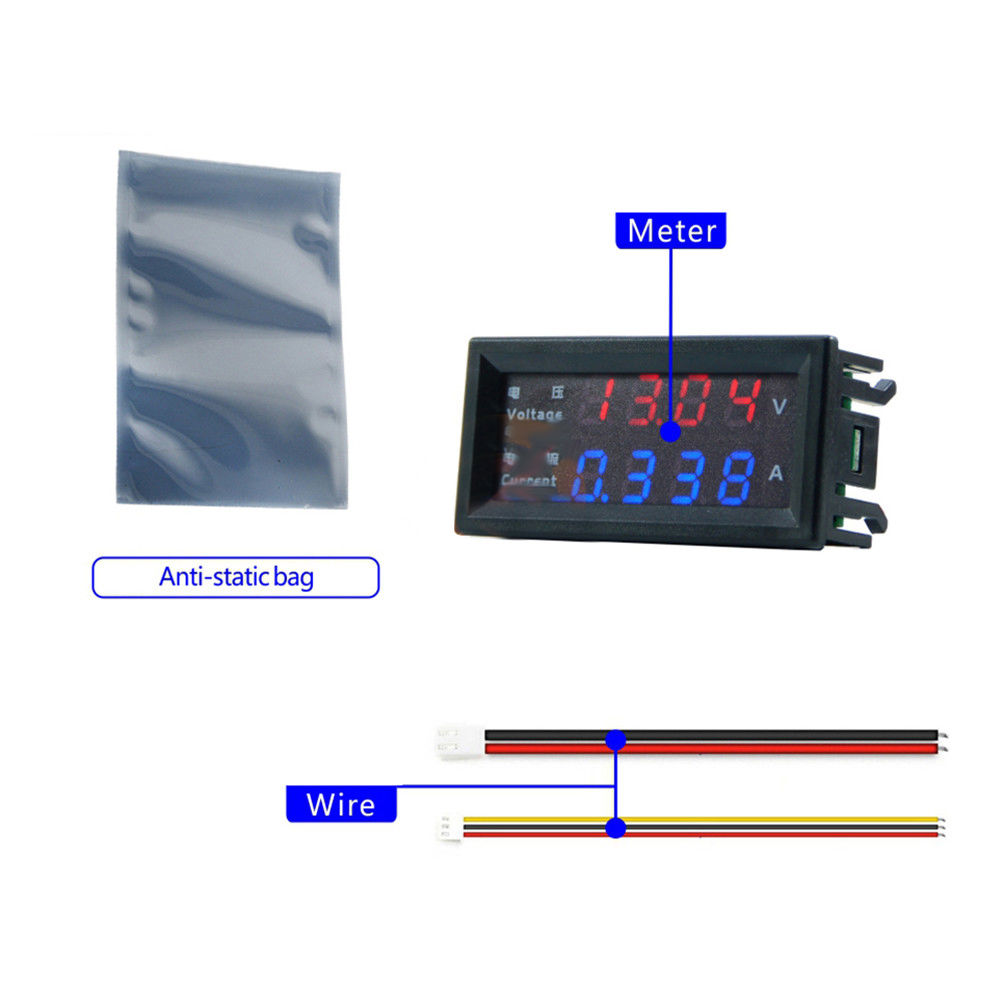

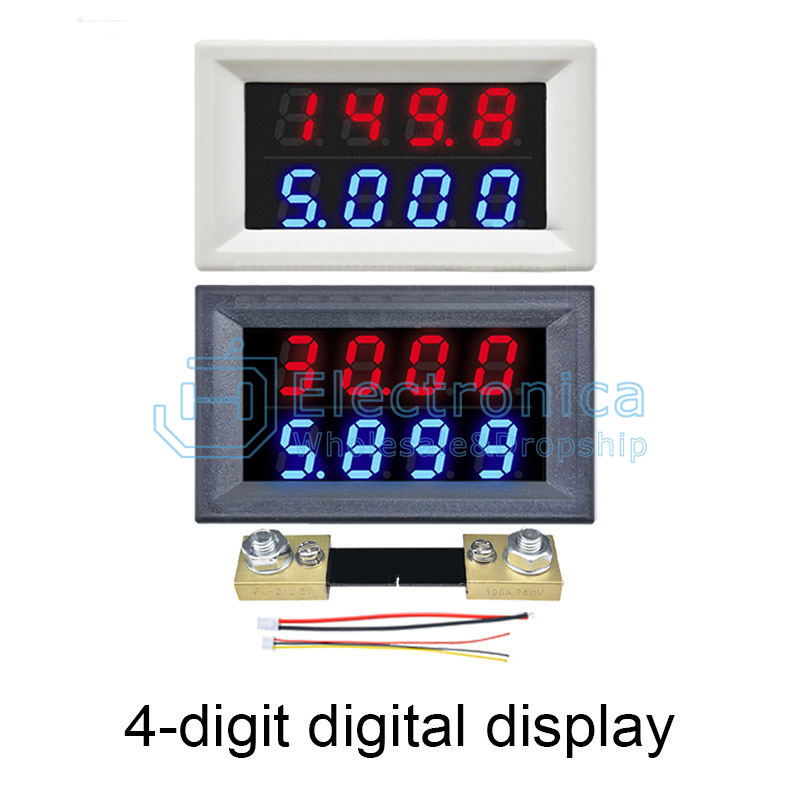

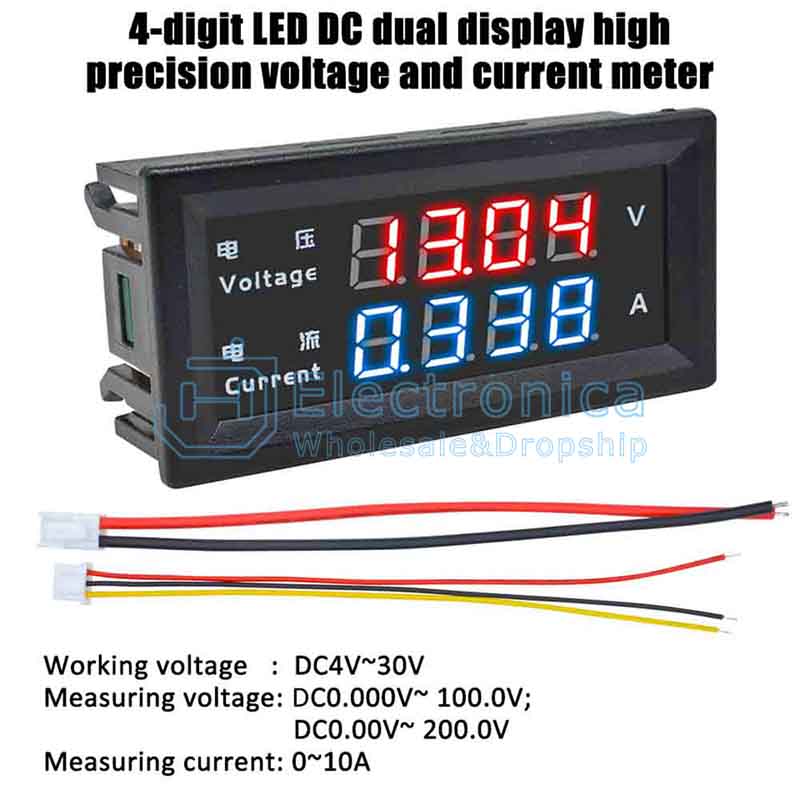

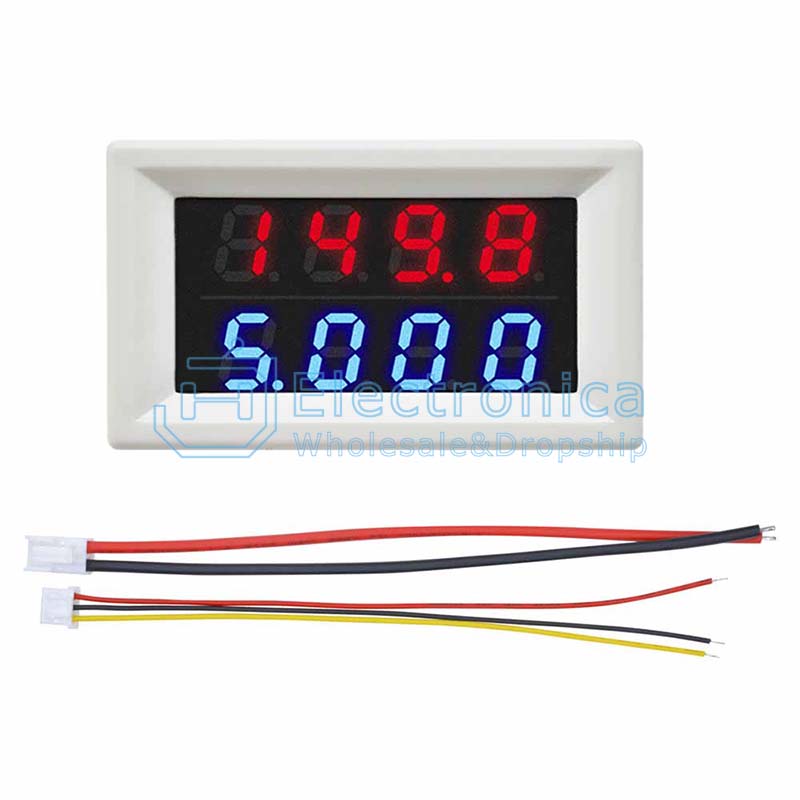

[4-digit display]
Display color：Red + Blue
Power supply range: DC4-28.0V
Working current: ＜20mA
Voltage measurement range:DC0V-100V 10A，DC0V-200V 10A
Display mode: 4-digit 0.28" LED digital tube
Refresh speed: about 1S/3 times
Working temperature: -10℃~65℃
Working pressure: 80kPa-106kPa
Dimensions: 48 * 29 * 20 mm (length * width * thickness)

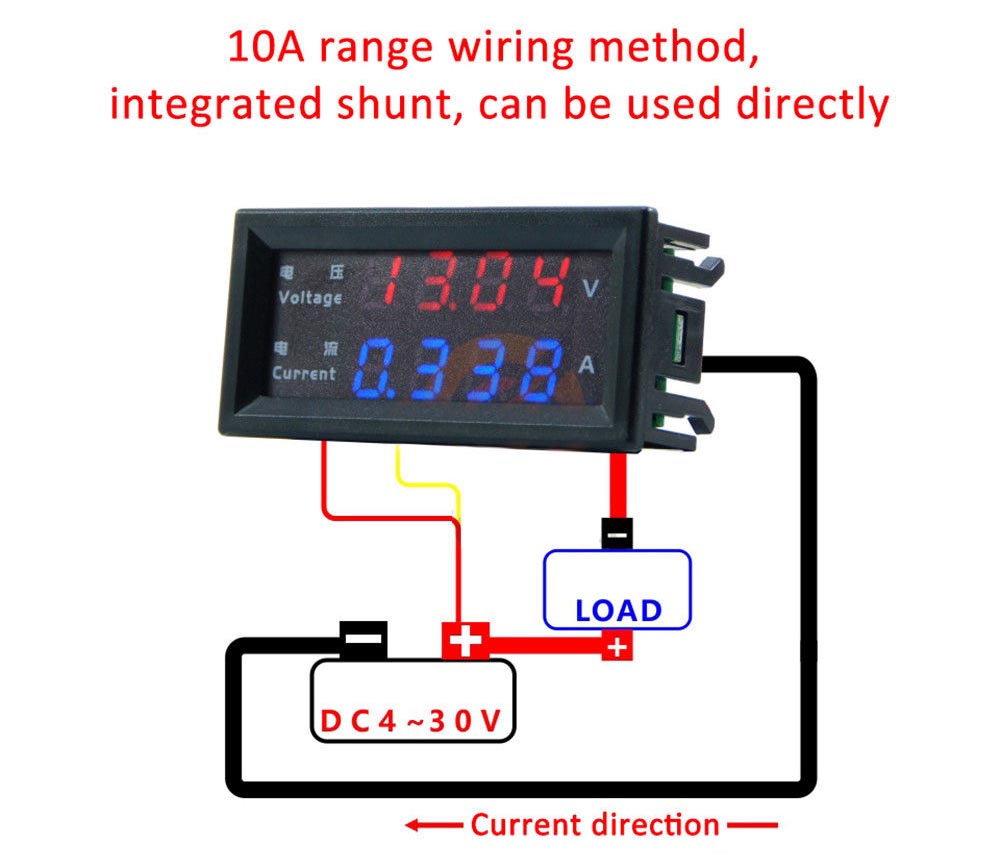

Shunt: built-in shunt

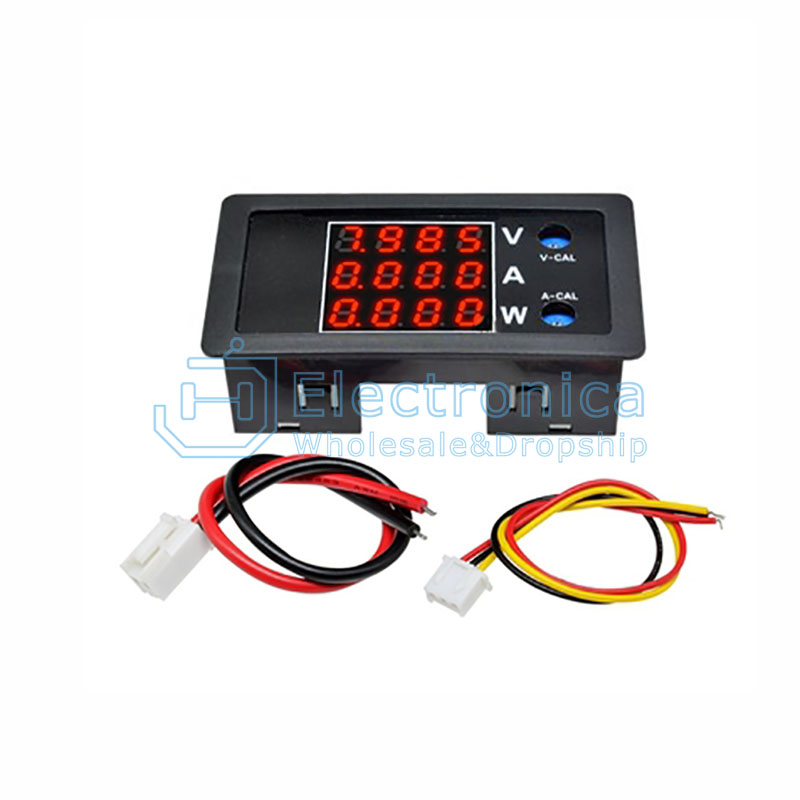

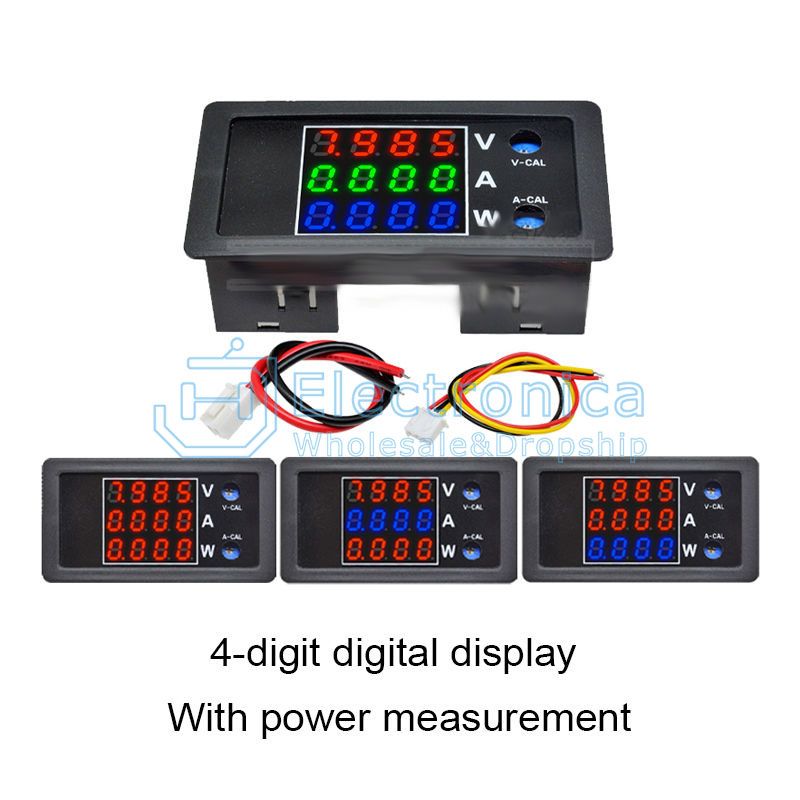

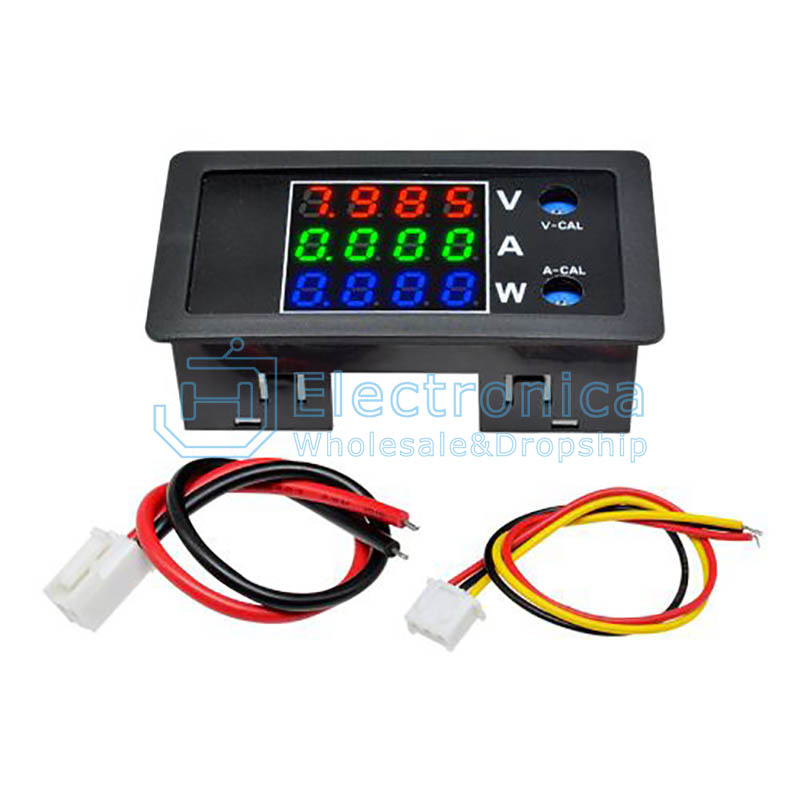

[4-digit display(with power measurement)]
Display color：Red-Red-Red, Red-Blue-Red, Red-Red-Blue, Red-Green-Blue
Display mode: 4-digit 0.28" LED digital tube
Power supply range: DC4-28.0V
Voltage measurement range:DC 0V-100V
Current measurement range:DC 0-9.999A
Power measurement range:DC 0-1000W
Refresh speed: ≥300ms/once
Voltage error: ±0.1%
Measurement error: ±1%
Working current: <30mA
Working temperature: -10℃~65℃
Working humidity：10-80%
Dimensions: 79.3 * 42.25* 24.38 mm
Mounting hole: 72 * 39 mm

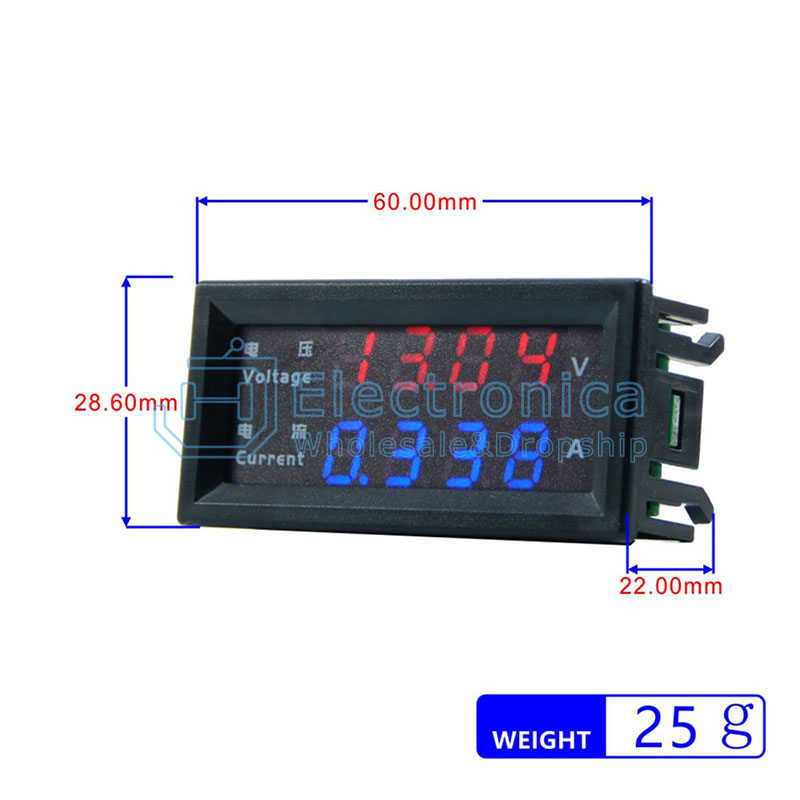

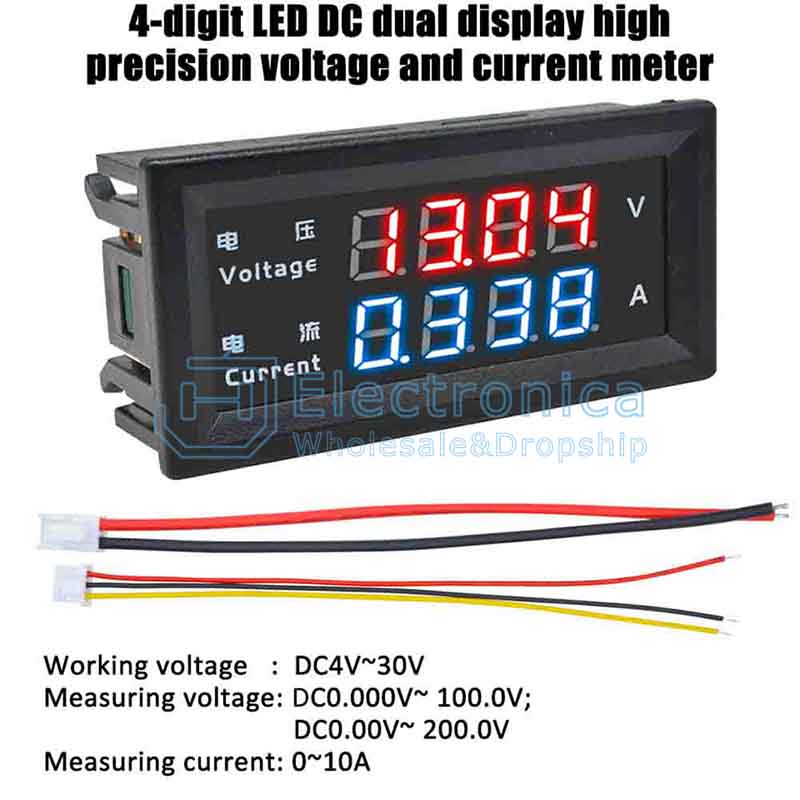

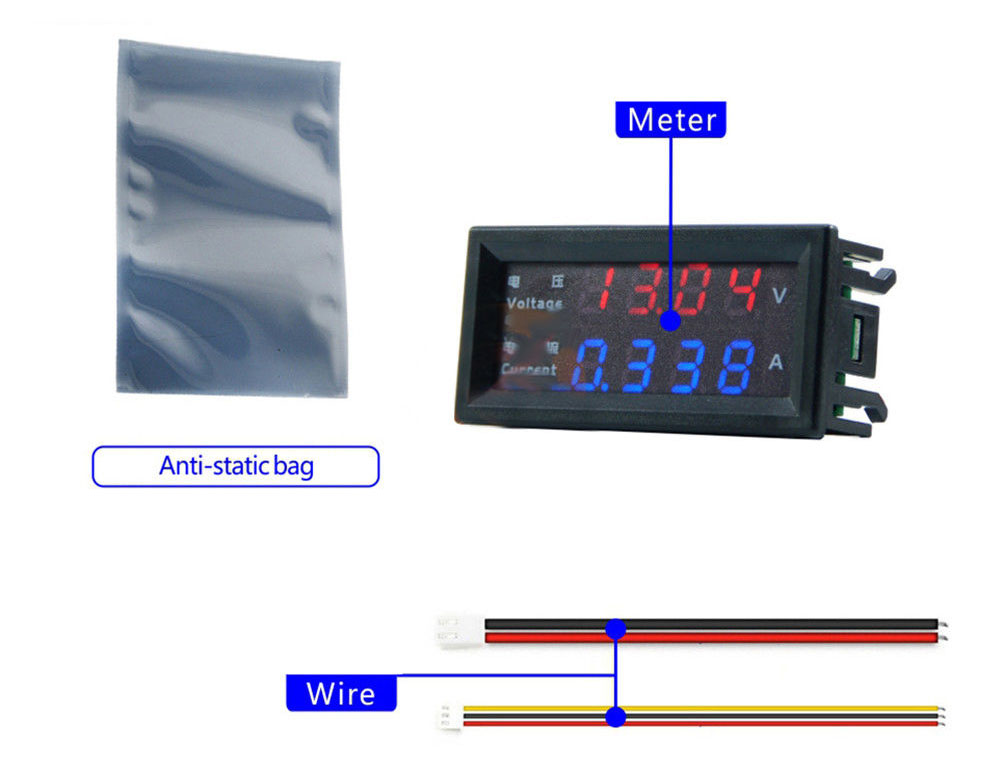

[ 4-digit display (updated version)]
Product Type: M4430
Working Voltage: DC4-28.0V (Suggestion: 5-12V)
Current measurement range:DC 10A 0-10A
Voltage measurement range:DC 0V-100V, 0V-200V,
Refresh speed: 300ms/once
Size: 60 * 28.6* 22mm
Mounting hole: 57.5*26mm
0.28" DC0-100V 10A/50A/100A LED Digital Voltmeter Ammeter Tester
SKU : YXB677 Brand : JH Sourcing
Style：

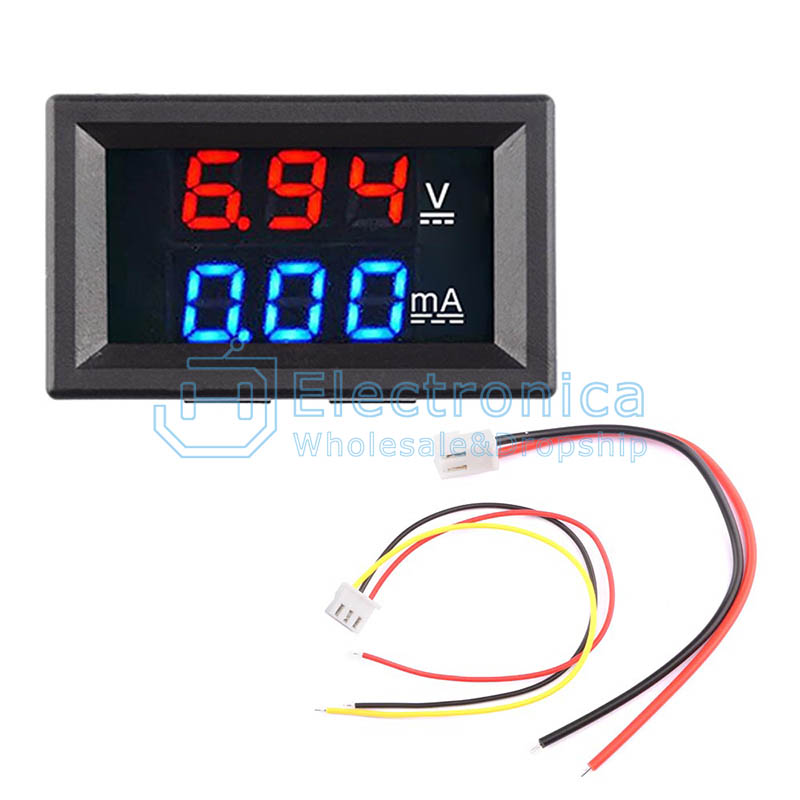

1A Red-Blue

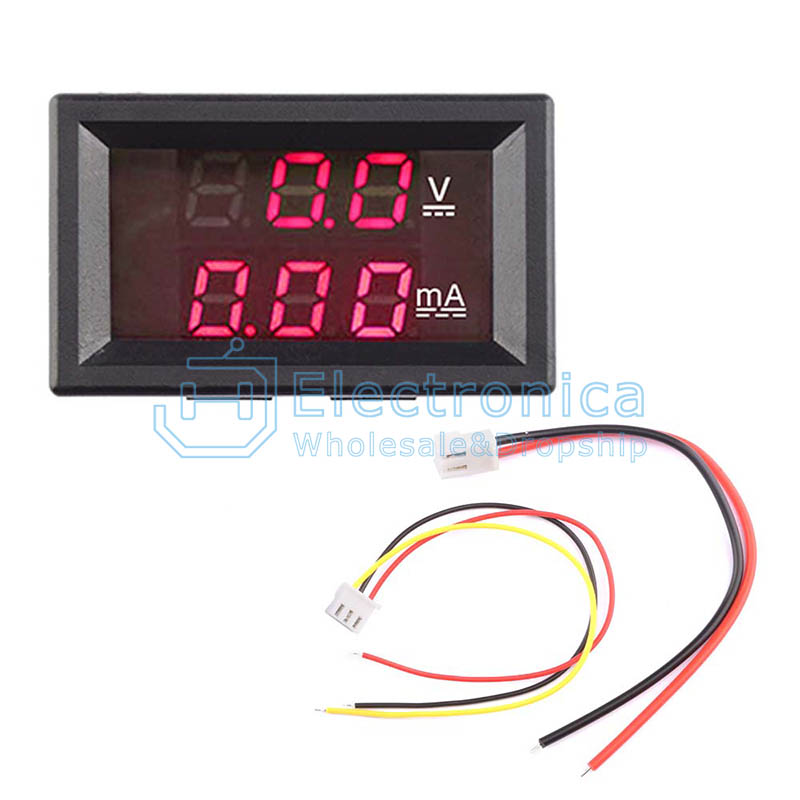

1A Red-Red
10A Red-Red
10A Red-Blue(Adjustable voltage)
10A Red-Blue(Adjustable voltage and current)
10A Red-Green

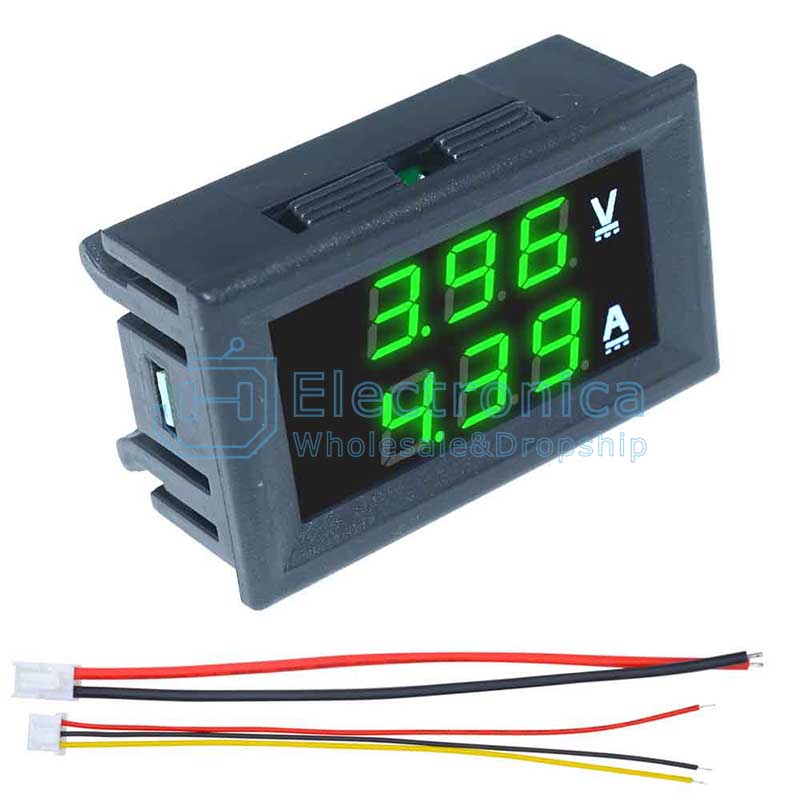

10A Green-Green
10A Blue-Green

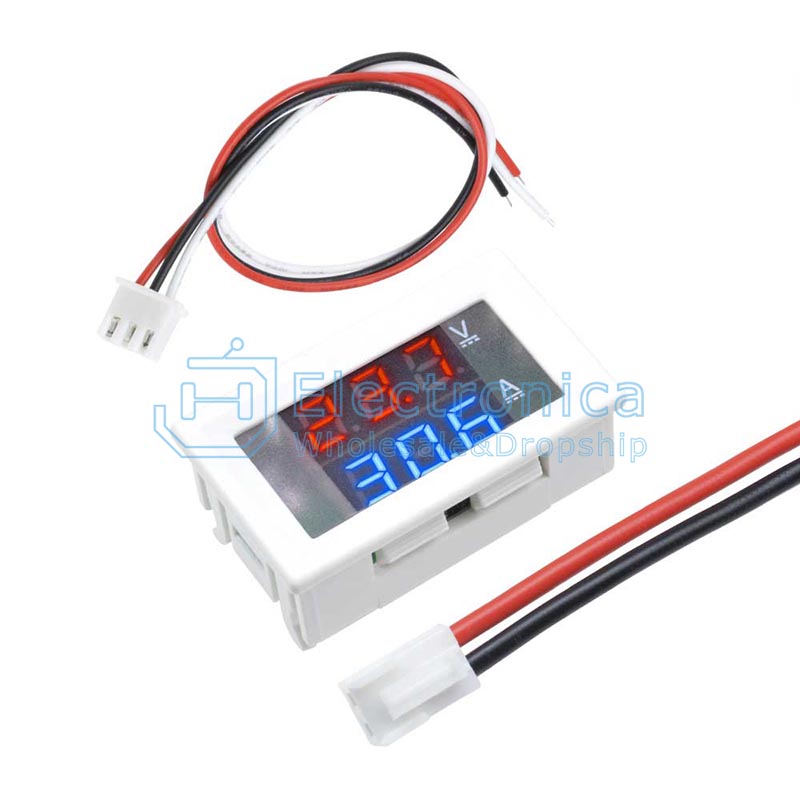

10A Red-Blue White Case

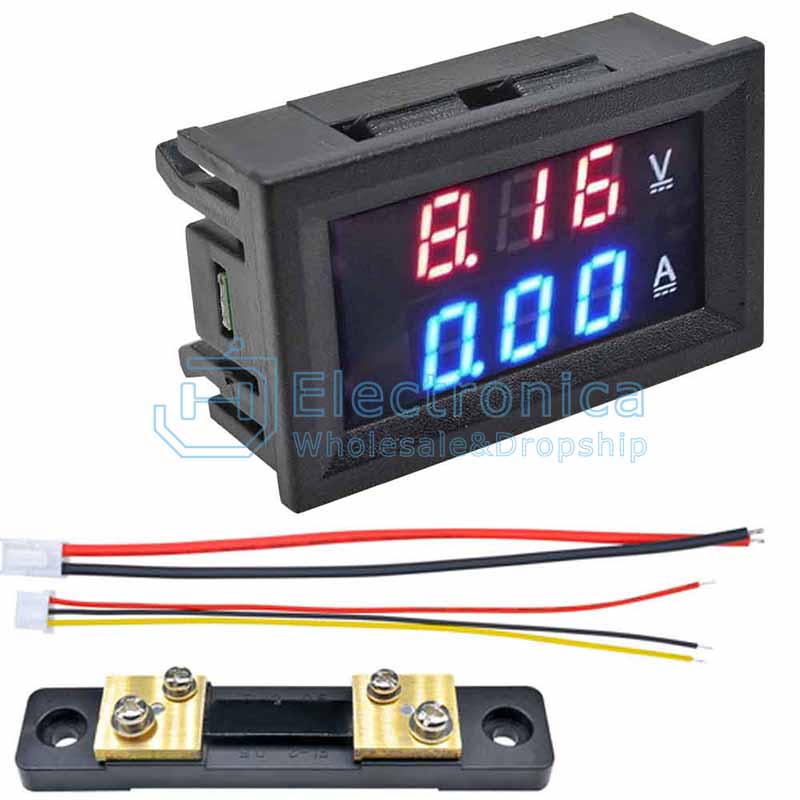

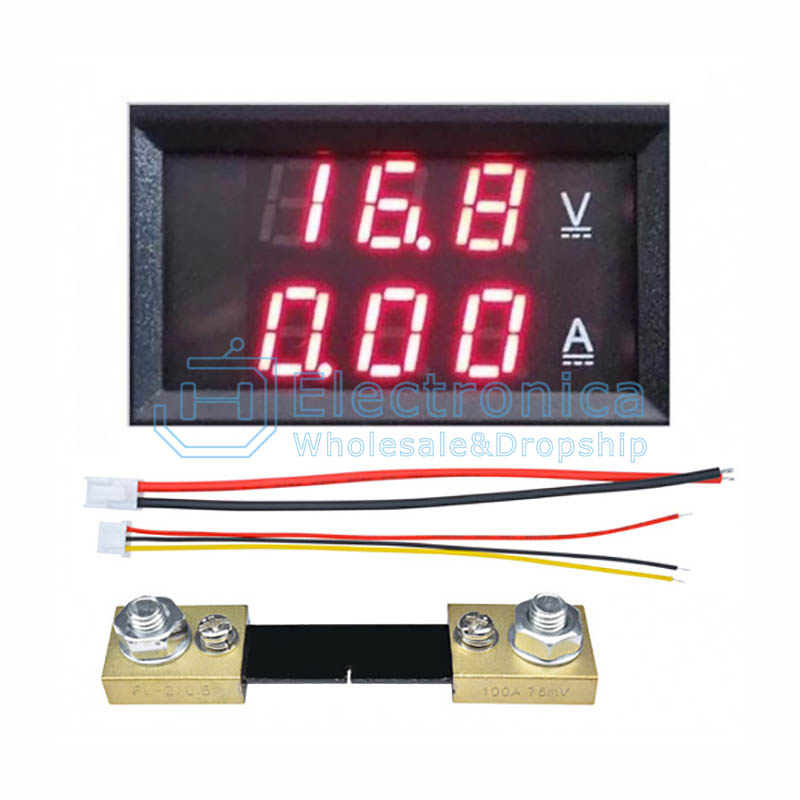

50A Red-Red + Shunt
50A Red-Blue + Shunt

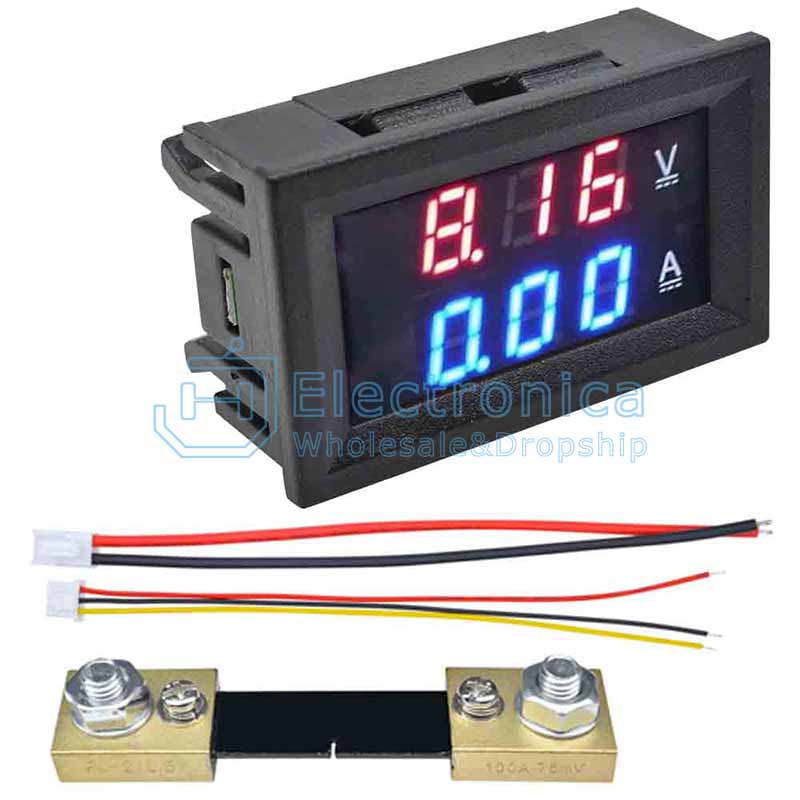

100A Red-Red + Shunt
100A Red-Blue + Shunt
4-digit display 0-200V 10A Red-Red(Black Case)
4-digit display 0-200V 10A Red-Blue(Black Case)
4-digit display 0-100V 10A Red-Blue(Black Case)

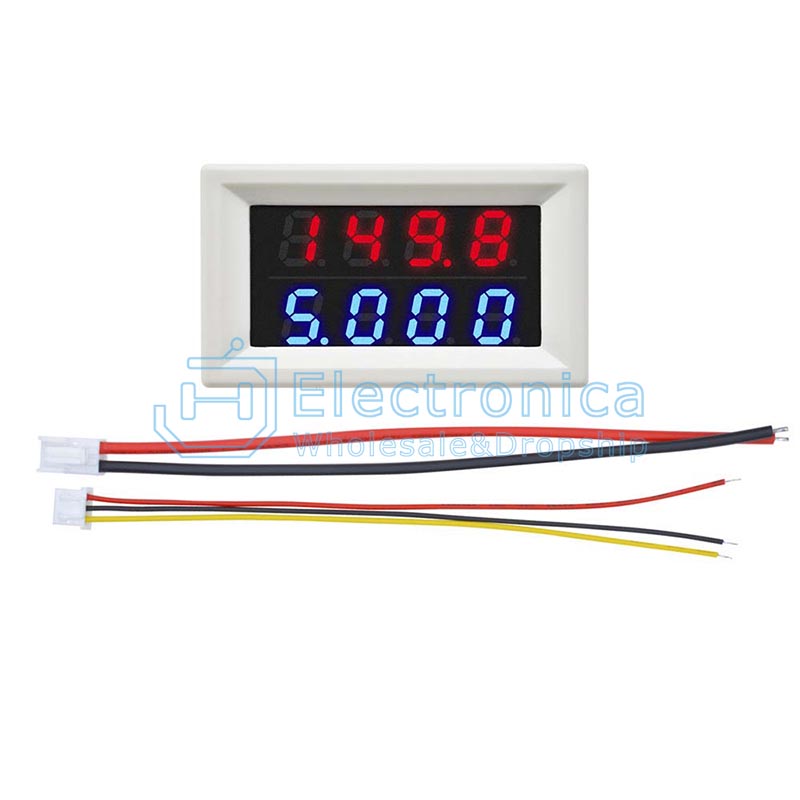

4-digit display 0-200V 10A Red-Blue(White Case)
4-digit display 0-100V 10A Red-Blue(White Case)
4-digit display 0-100V 10A Red-Red-Red.jpg)
4-digit display 0-100V 10A Red-Green-Blue
4-digit display 0-100V 10A Red-Blue(updated version)
4-digit display 0-200V 10A Red-Blue(updated version)
5-digit display 0-200V 10A Red-Red-Red( with power detection)
