Description

Product Name: double display digital thermometer
Display color: Red + red, red + blue. Optional*
Product model: h28tt
Operating temperature: - 10 ~ + 65 ° C
Power supply: DC4-28V
Working humidity: 10 ~ 80% (no condensation)
Measurement range: - 55 ~ + 120 ° C
Working pressure: 80 ~ 106kpa
Temperature control accuracy: 0.1 ° C
Sunlight exposure: no direct exposure
Allowable error: 1% (+ 1 word)
Overall dimension: 48x 29x22mm, length x width x thickness;
Working current: < 15mA
Opening size: 46x27mm, length x width recommended
Length of power supply line: 150mm
Display mode: double three digit 0.28 "led nixie tube
Measurement input: ntc10k waterproof temperature probe
Probe lead: the standard probe diameter is 5mm and the lead length is 1m

purpose：
? measure the temperature inside and outside the vehicle;
? measure the temperature inside and outside the air-conditioned room;
? measure the temperature inside and outside the refrigerator;
? measuring the water temperature of the fish pond
? measure the water temperature of the baby's bath;

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

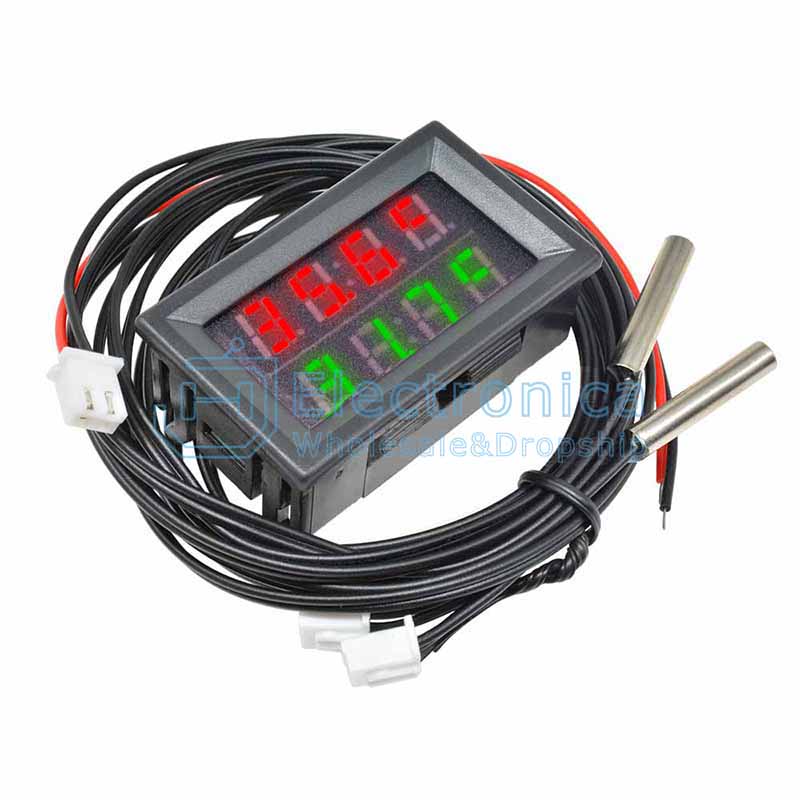

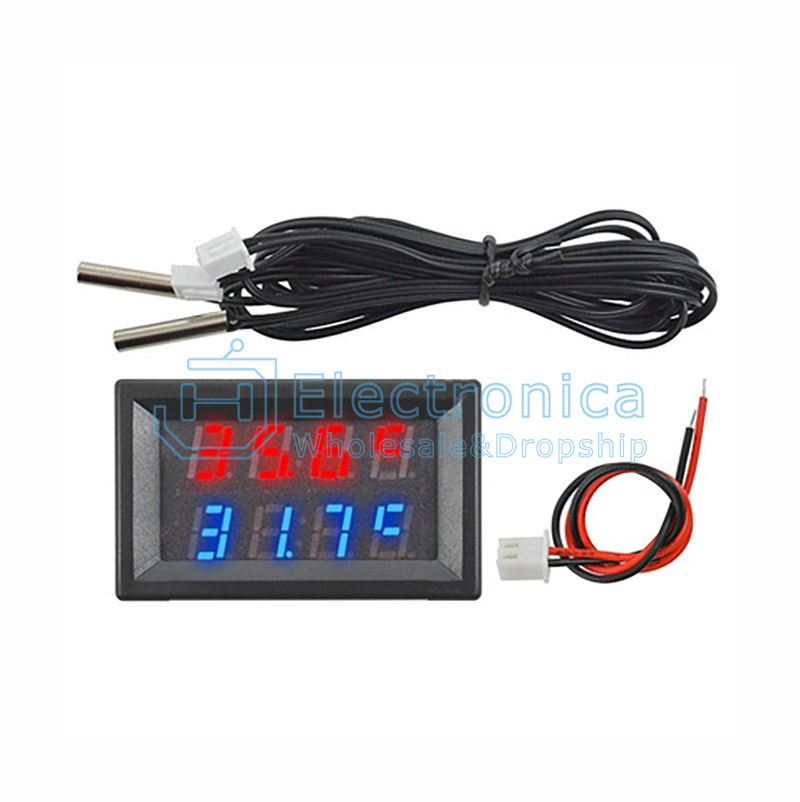

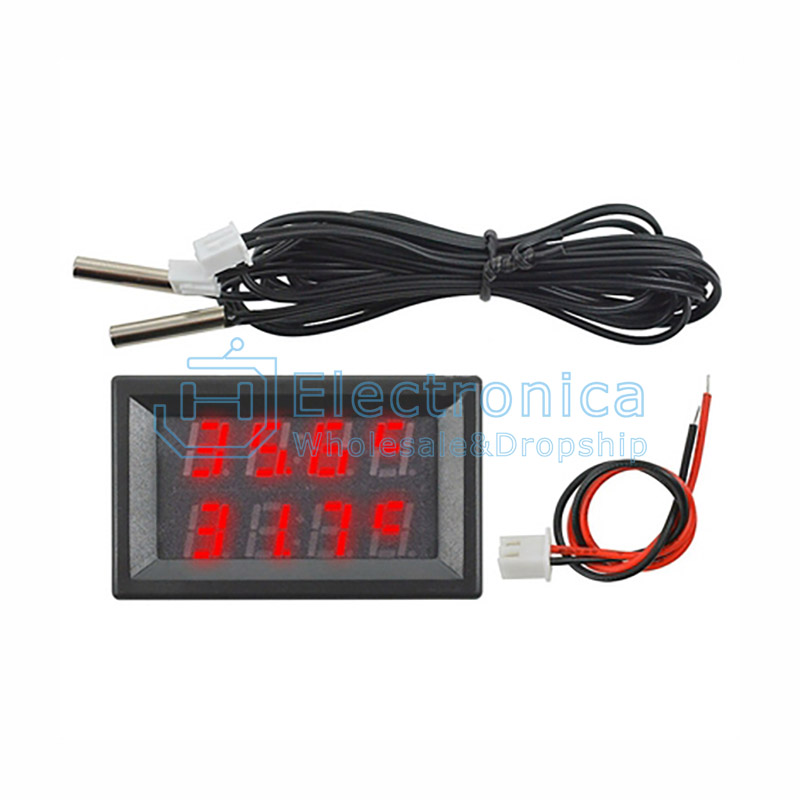

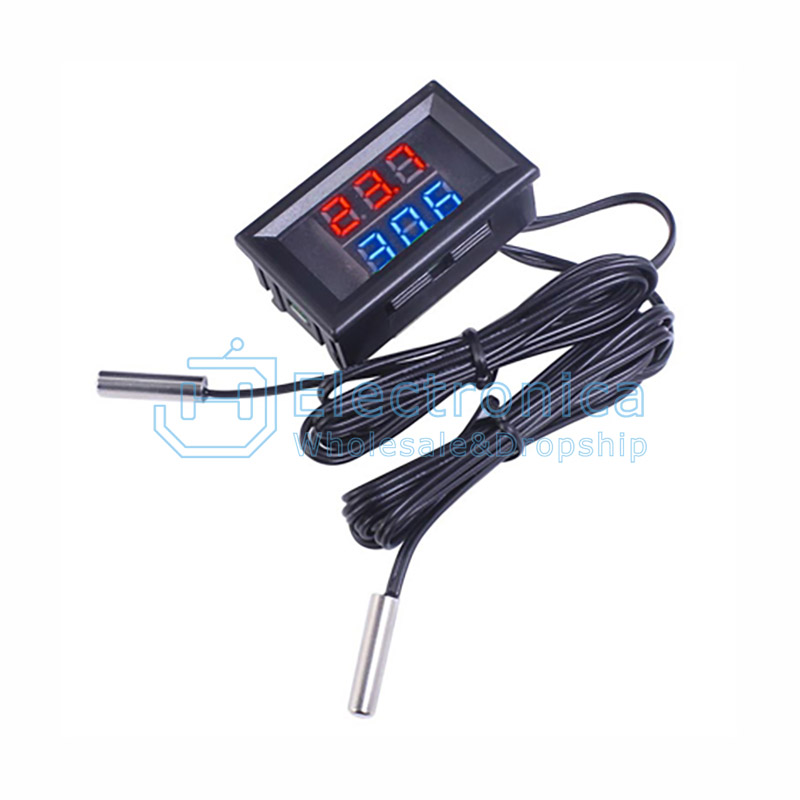

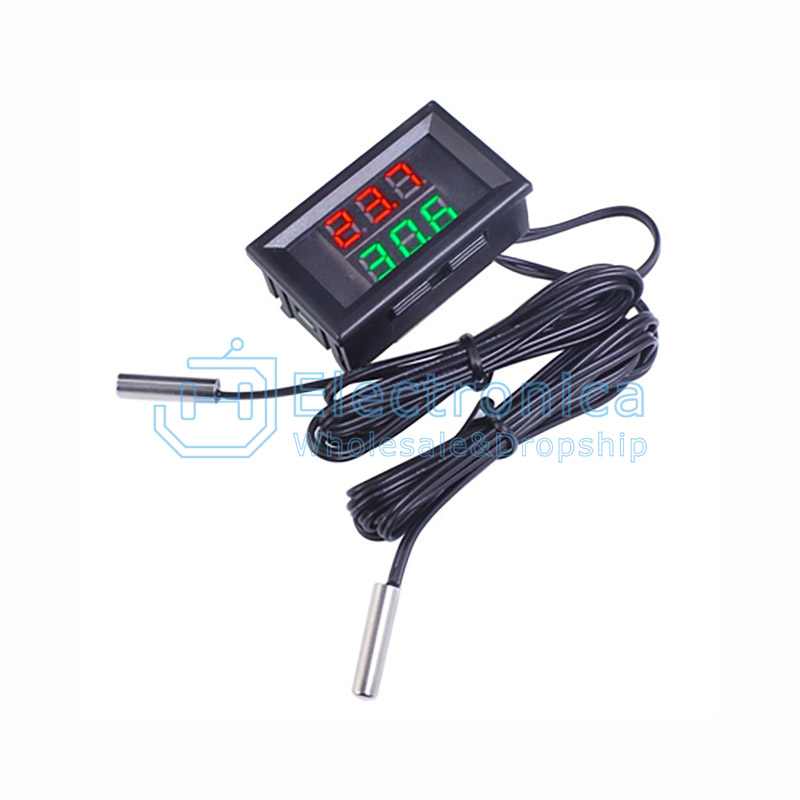

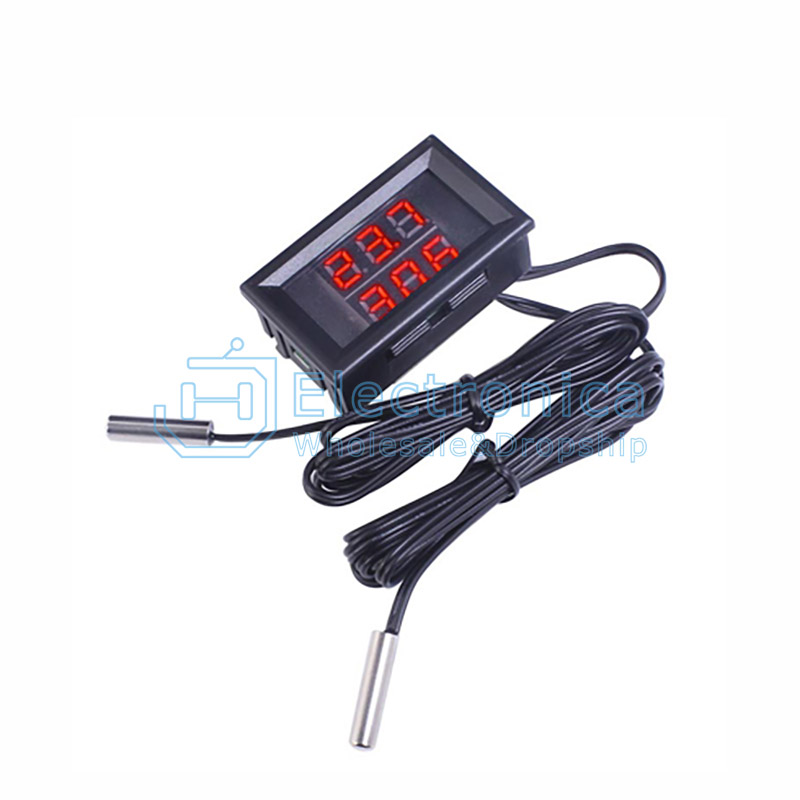

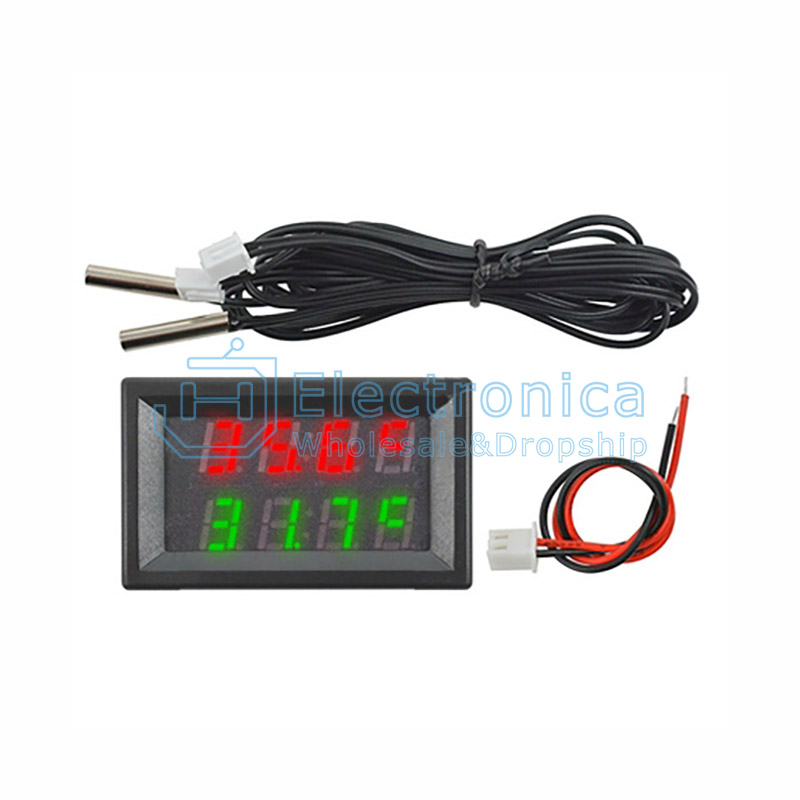

-55℃-120℃ High Precision Dual-display Digital Thermometer

SKU : YXB633 Brand : JH Sourcing

Price : $ 1.95~2.79

100 +: $1.95~2.79500 +: $1.95~2.791000 +: $1.95~2.79

Style：

Three digit red and red
Three digit red and blue
Three digit green and red
Four digit red and red
Four digit red and blue
Four digit and red

Quantity :

- +
