Description

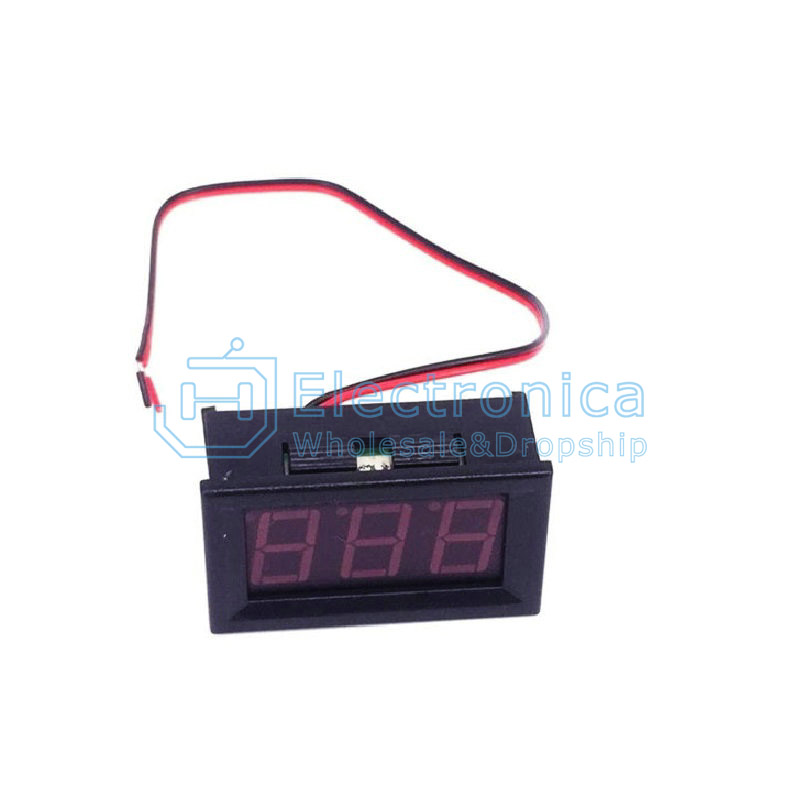

This Red DC Voltage Meter with DC4.5-30V range.
It is easy to read, install and use
And it is self-powered version and supports Reverse polarity protection.
When the voltage is under 10V, there will 2 readings after decimal point, which mean the accuracy is 0.01 when it is under 10V; when it is above 10v, the accuracy is 0.1
Parameter:

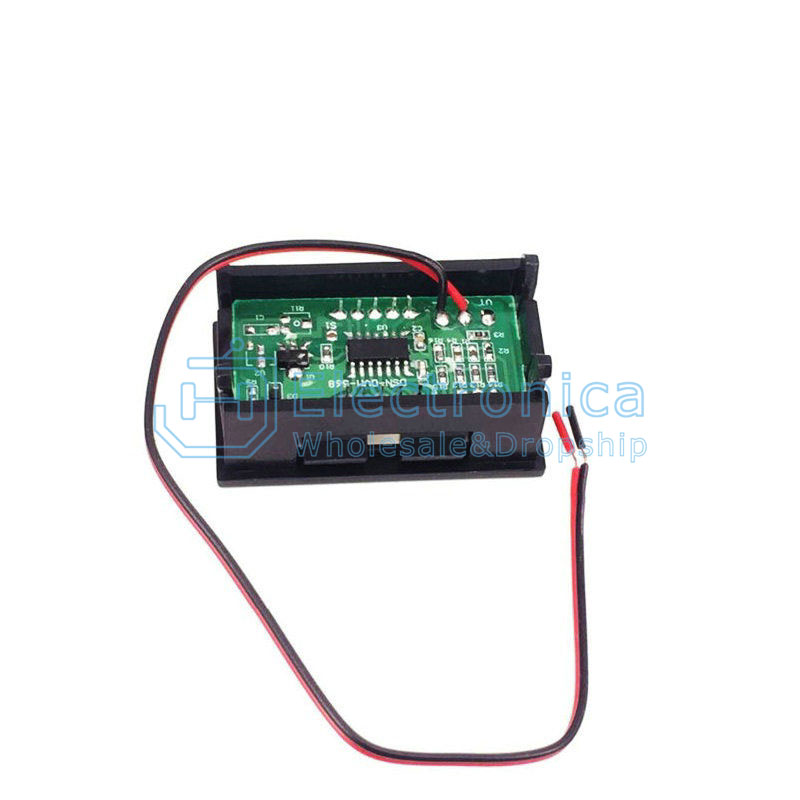

Measure Voltage: DC 4.5-30V two-wire access
Display: Three digit 0.56" LED, Red/Blue/Green color
Refresh Speed: Approx.300mS/time
Highest input:DC 30V (higher than 30v has the risk of burn up)
Minimum input:DC 4.5V(below than 4.5V,measurement is inaccurate
or does not show)
Minimum Resolution:0.01V(<10V)/0.1V(>10V)
Resolution:1%plusmn1digit
Working Temperature:-20℃~65℃
Size:Approx. 48mm x 29mm x 22mm(L*W*H)
Hole Size: Approx.46*27mm
Current Consumption:<23mA
LED Color: Red/Blue/Green color

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

DC 5V-120V DC4.5V-30V 0.56" LED 2 Wires Digital Voltmeter Tester

SKU : YXB452 Brand : JH Sourcing

Price : $ 0.90~1.53

100 +: $0.90~1.53500 +: $0.90~1.531000 +: $0.90~1.53
