Description

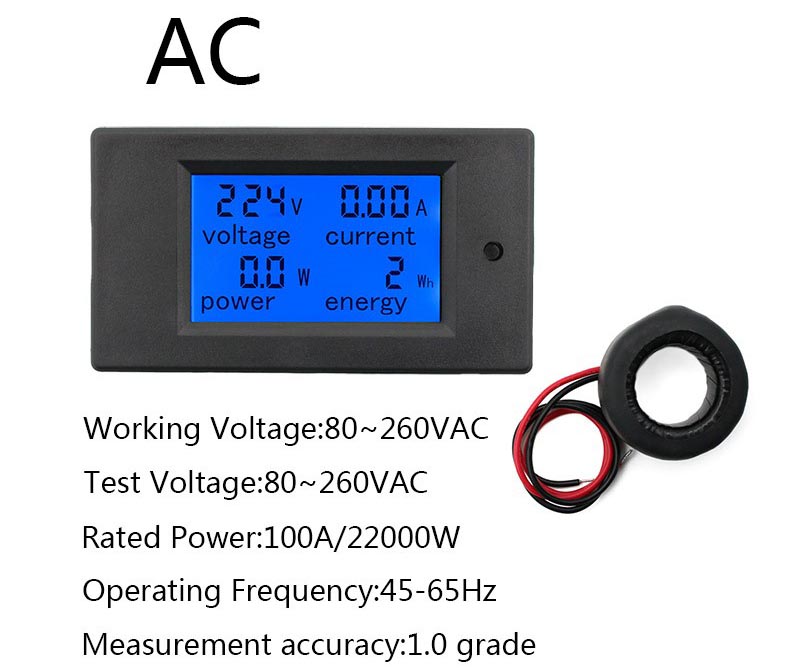

1. Working voltage: 80 ~ 260VAC

2. Test voltage: 80 ~ 260VAC
3. Rated power: 100A(20A) /22000W
4. Operating frequency: 45-65Hz

5. Measurement accuracy: 1.0 grade

Display format

1. Power: test range: 0~22kW

Within 1kW, the display format is 0.0~999.9W;
Within 1kW~10kW, the display format is 1000~9999W;
10kW and above, the display format is 0.1~22.0kW.
2. Energy: test range: 0~9999kWh
Within 10KWh, the display format is 0~9999Wh;
10kWh and above, the display format is 10~9999kWh.
3. Voltage: test range: 80~260V
Display format: 80~260V

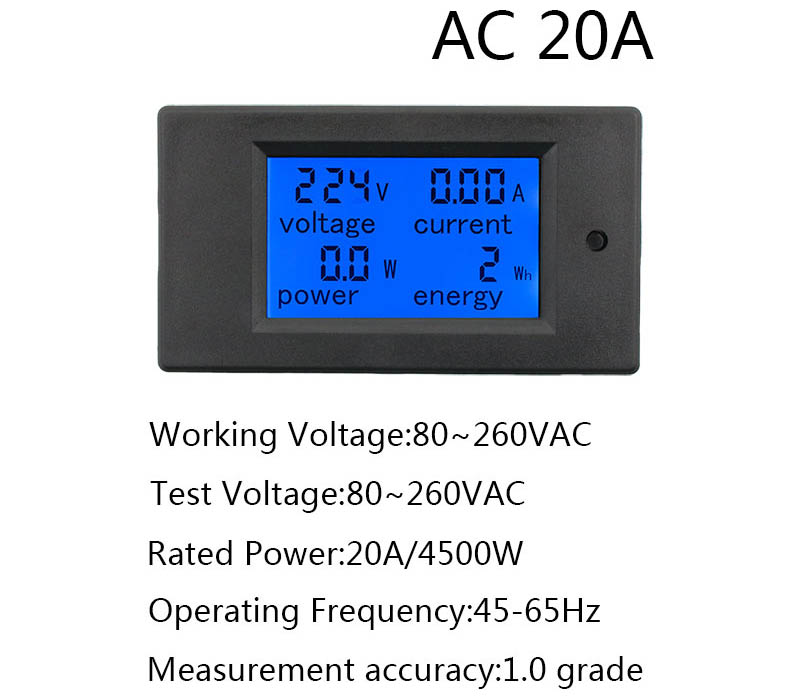

4. Current: test range: 0~100A/0~20A
Display format: 0.00~99.99A

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

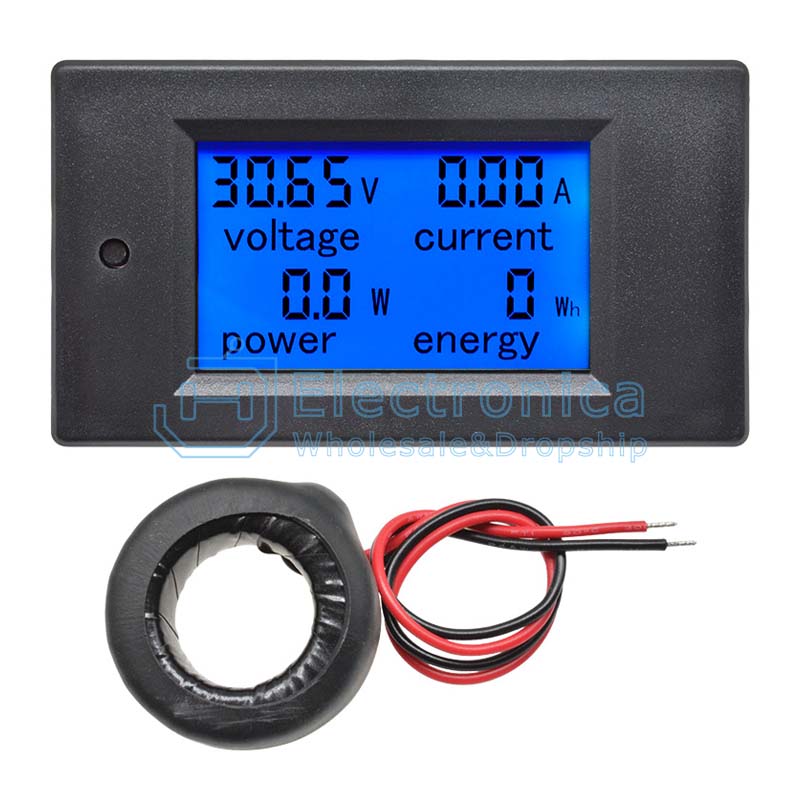

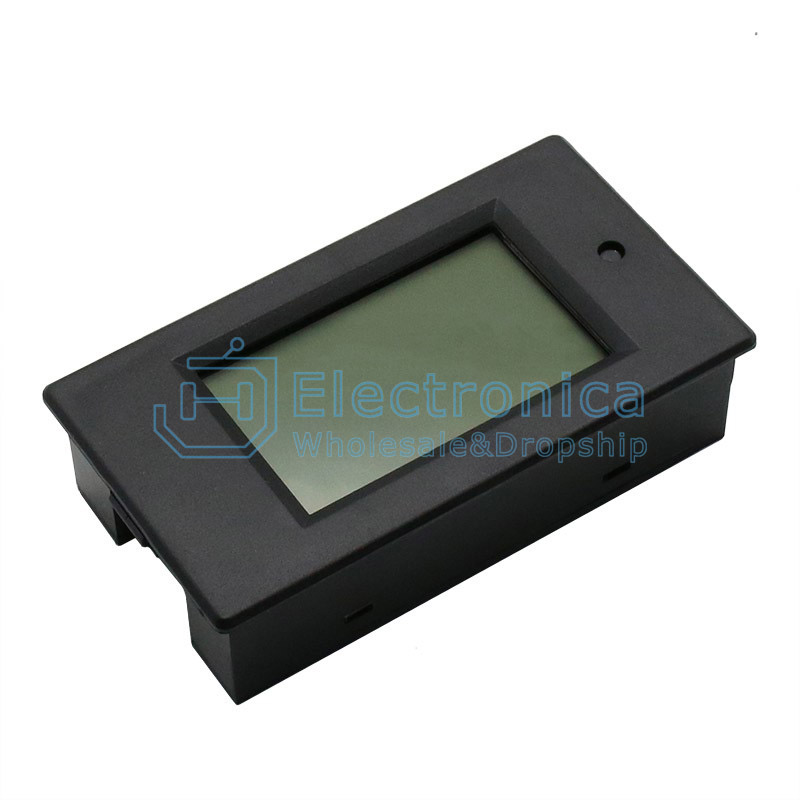

AC80-260V 0-100A 0-20A Digital Voltmeter Ammeter

SKU : YXB448 Brand : JH Sourcing

Price : $ 5.89~8.53

100 +: $5.89~8.53500 +: $5.89~8.531000 +: $5.89~8.53
