Working power:DC 5V power supply or 18650 battery(need to bring your own)
Applicable battery:meet the stop discharge voltage 2.5~3.5V,2.8V start~4.2V full battery is applicable
Power supply interface:Type-C interface,power supply line self-provided(C port mobile phone line)
System language:Chinese(default),English
Number of tests:1-way charging and discharging measurement(only the right battery bit)
Internal resistance measurement:Yes,the internal resistance is tested by DC two-wire method
Charging function:support,full charge automatic cut off charging(do not support lithium iron phosphate battery charging)
Discharge function:support,automatic stop when the condition is reached,discharge current is not adjustable
Auto charge & discharge:yes,the battery is fully charged at the end of Auto mode
Cycle charging and discharging: support,1~9 cycles adjustable(only supported in automatic mode)
Status tip:yes
Stop discharge voltage:2.5V,2.6V,2.7V,2.8V,2.9V,3.0V,3.1V,3.2V,3.3V,3.41V,
3.5V total of 11 adjustable steps
Discharge current:two resistors,up to about 1A current,non-adjustable,do not support independent transformation
Charging voltage:special battery charging chip control,up to about 1A charging,full voltage 4.2V
Net weight:80g
Package weight:120g
Size:110mm*88mm*30mm
Package weight:153*100*42mm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

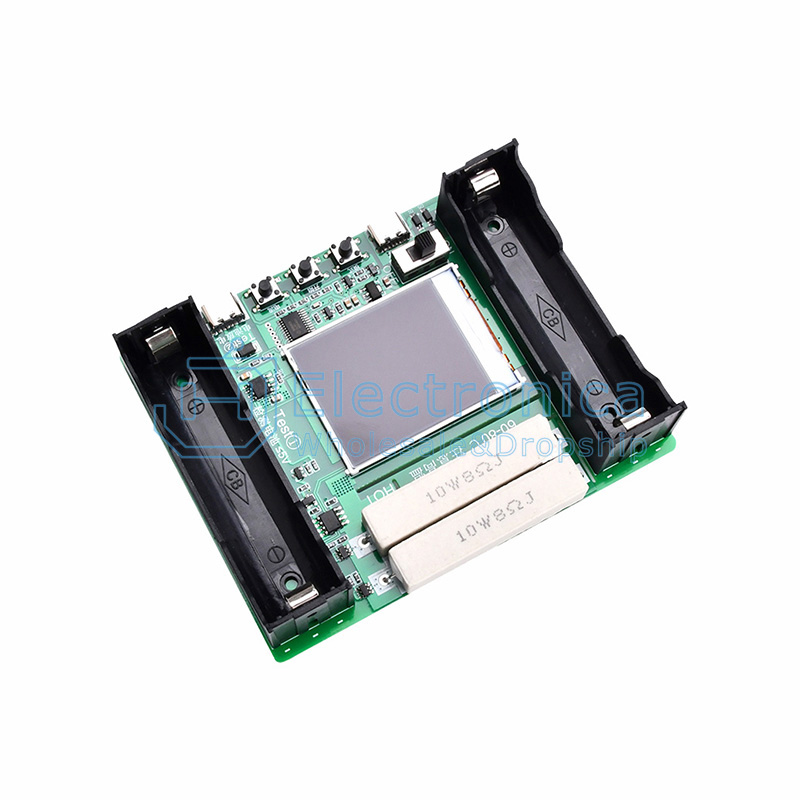

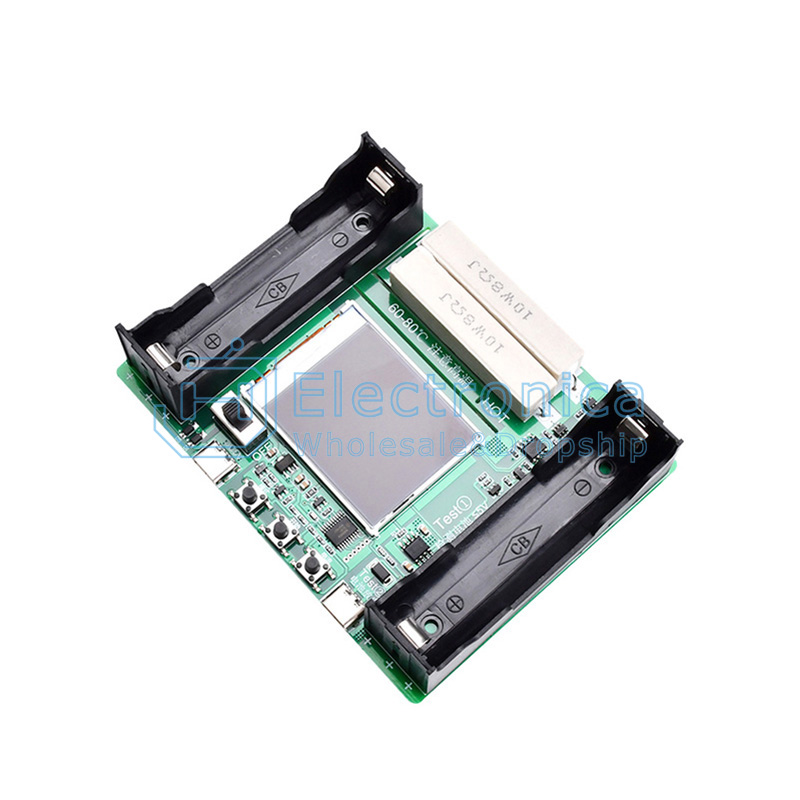

18650 Battery Capacity Internal Resistance Tester

SKU : YXS1345 Brand :

Price : $ 0.85~11.27

100 +: $0.85~11.27500 +: $0.85~11.271000 +: $0.85~11.27

Style：

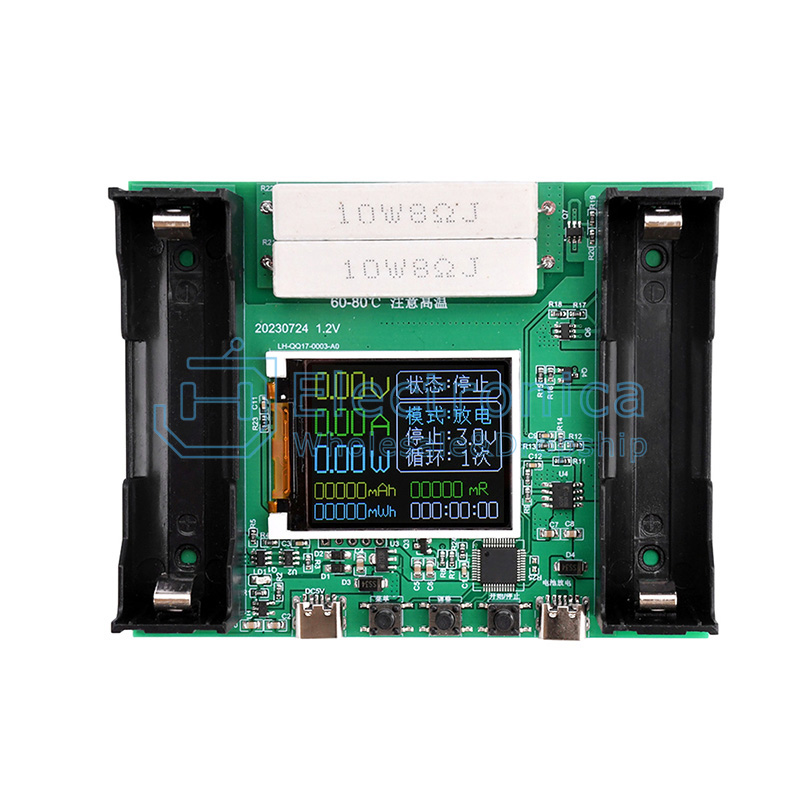

18650 Battery capacity internal resistance detector automatic charging and discharging module type-C port
Type-C port internal resistance tester four positions(Chinese)
Type-C port internal resistance tester four positions(English)

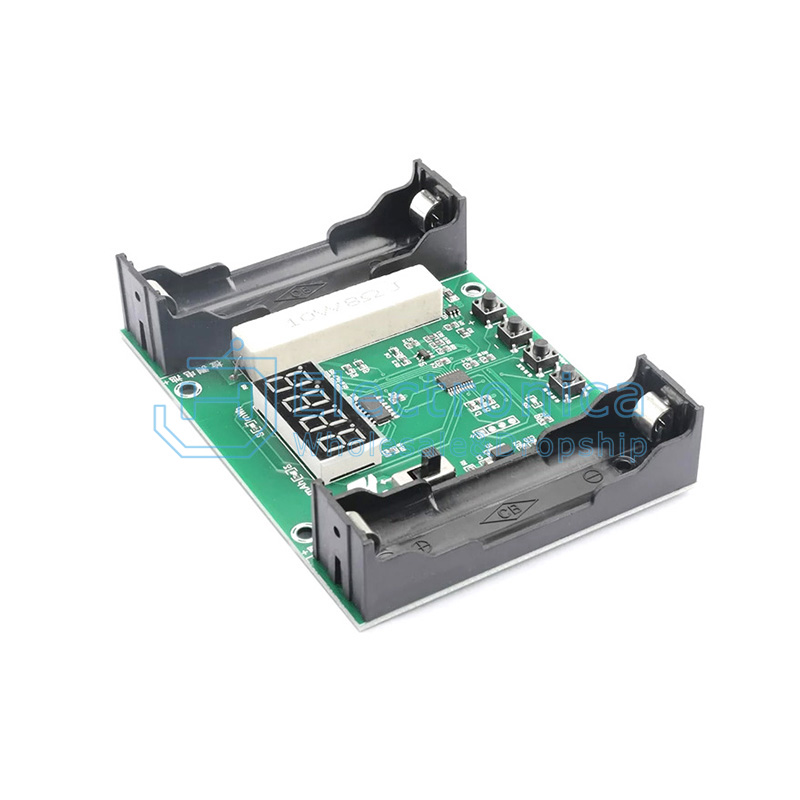

18650 Battery capacity tester red display

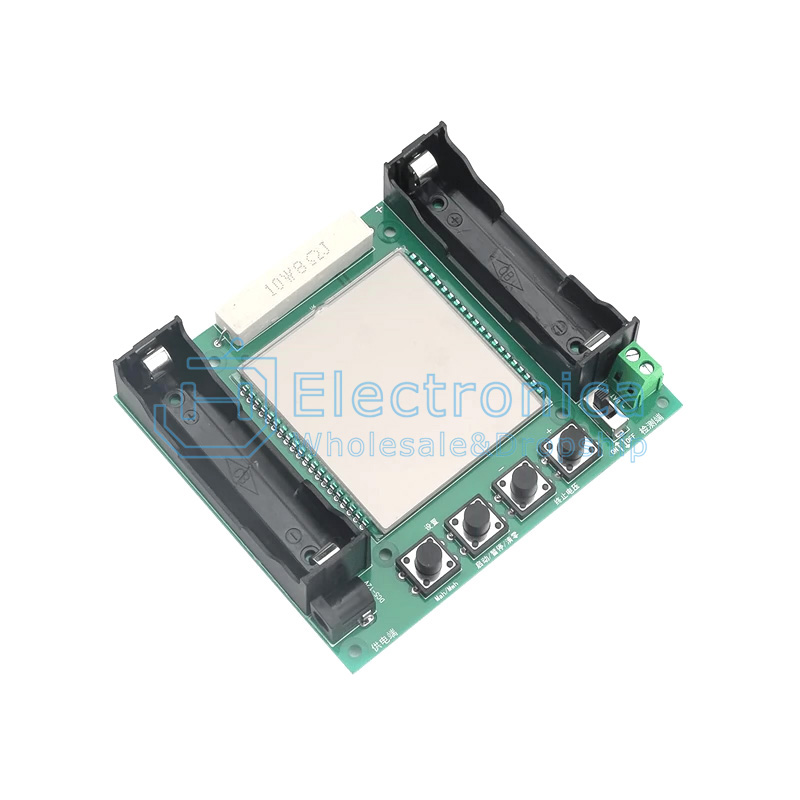

LCD capacity tester module

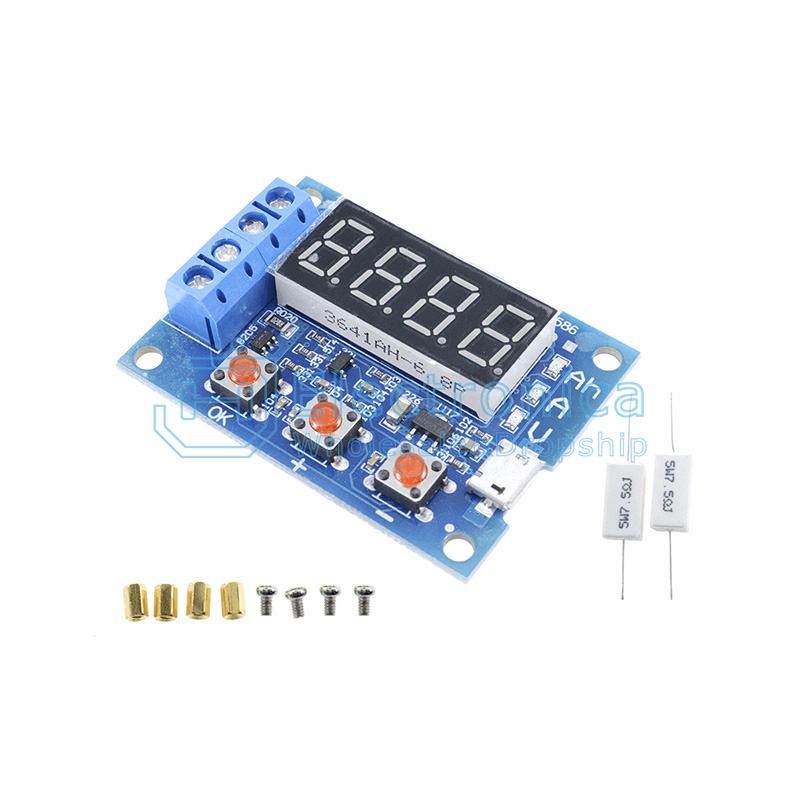

18650 Lithium battery capacity tester module

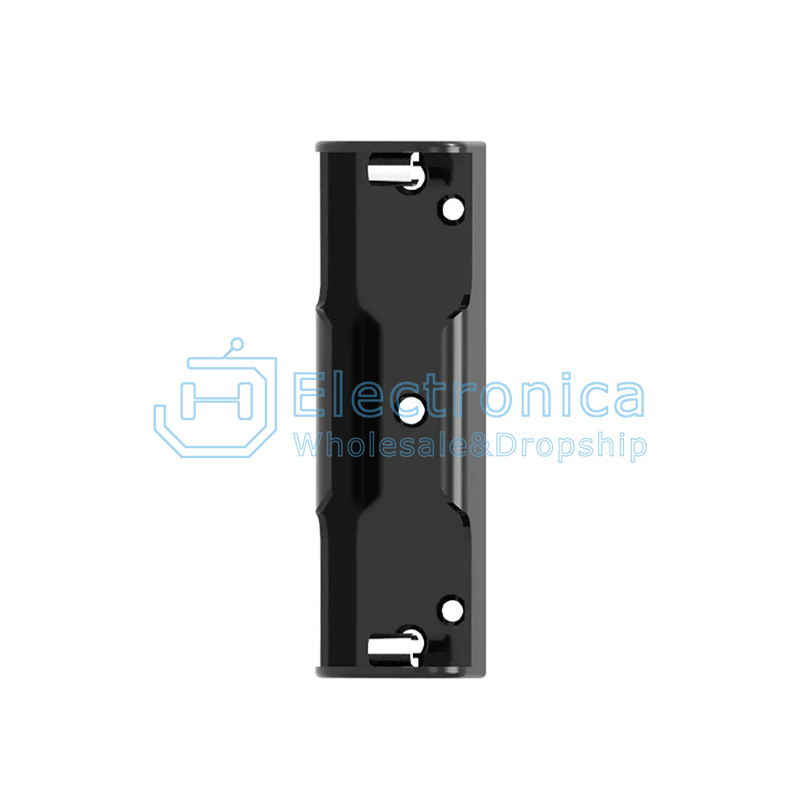

21700 Battery case

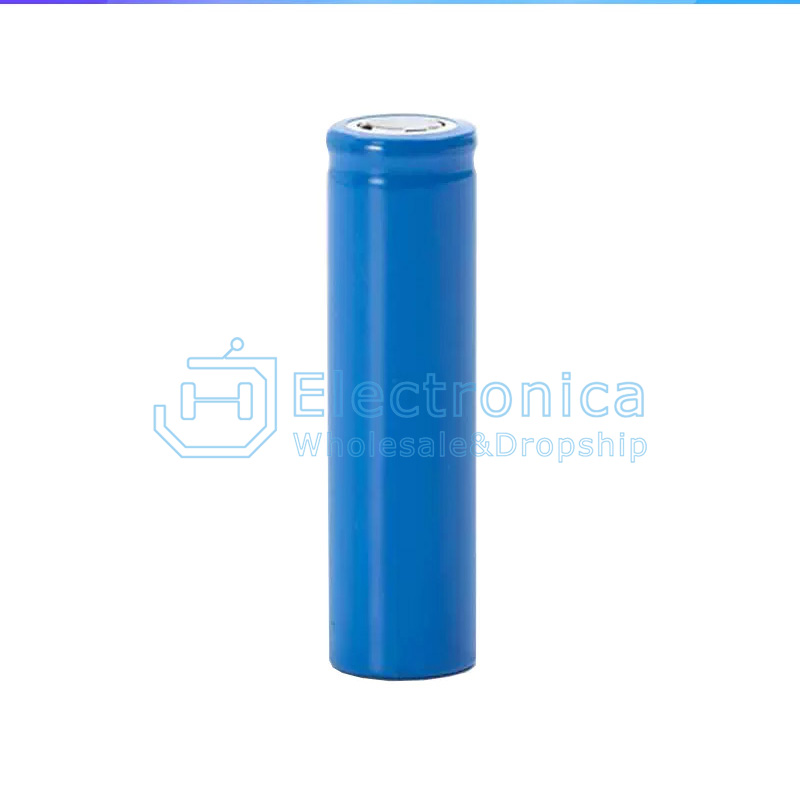

2600mAh Lithium battery
