Description

1. Product style:

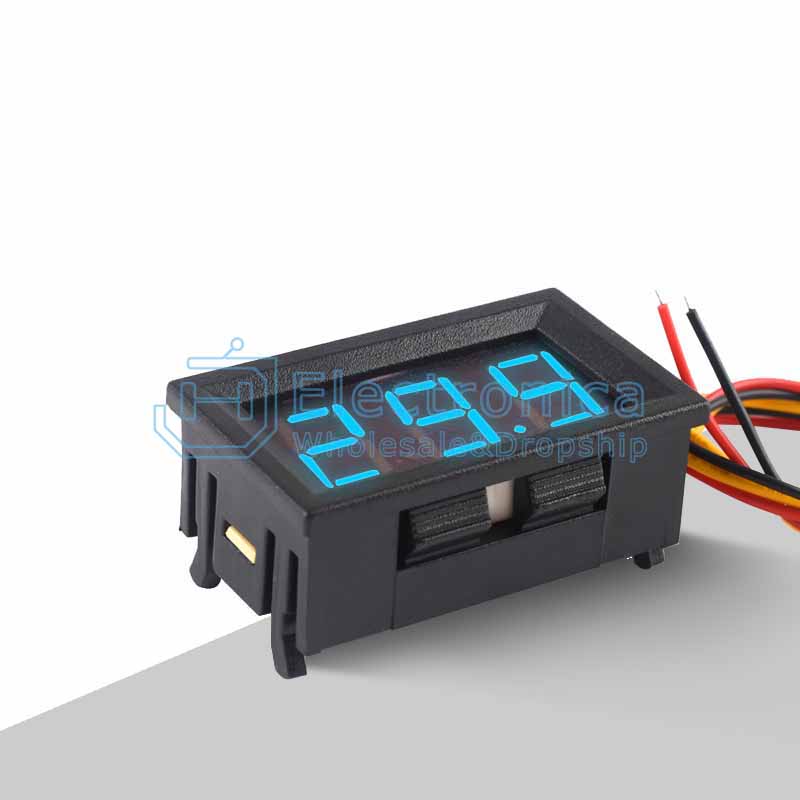

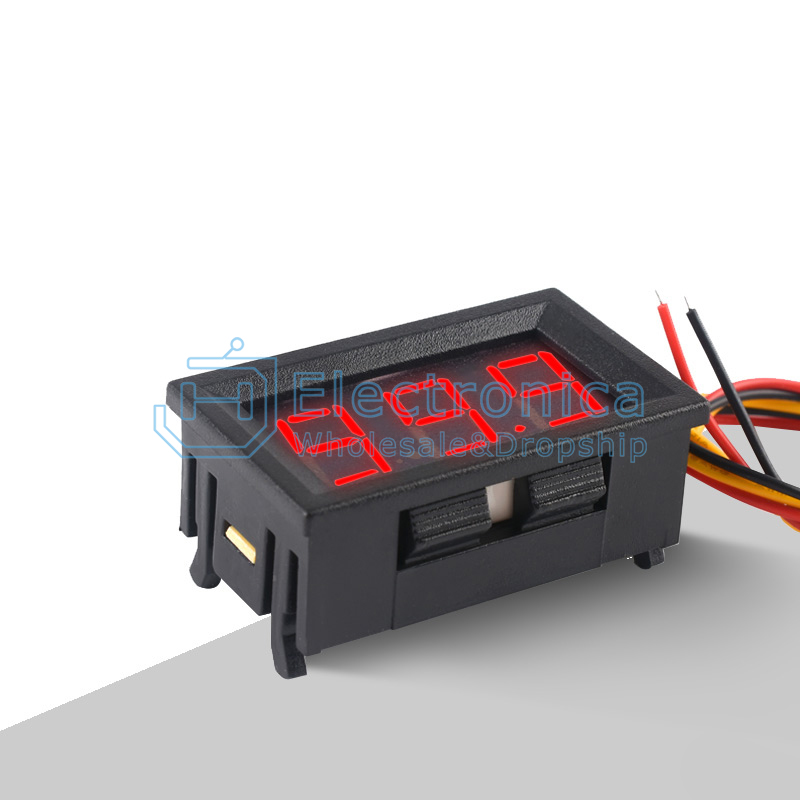

0.56inch: 3 Wires, 0-100V

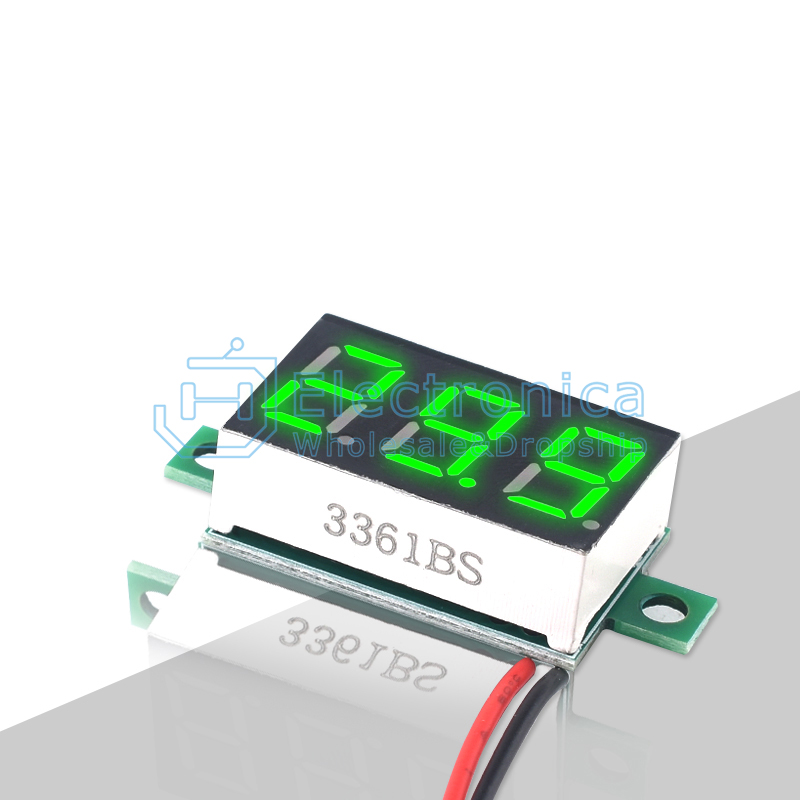

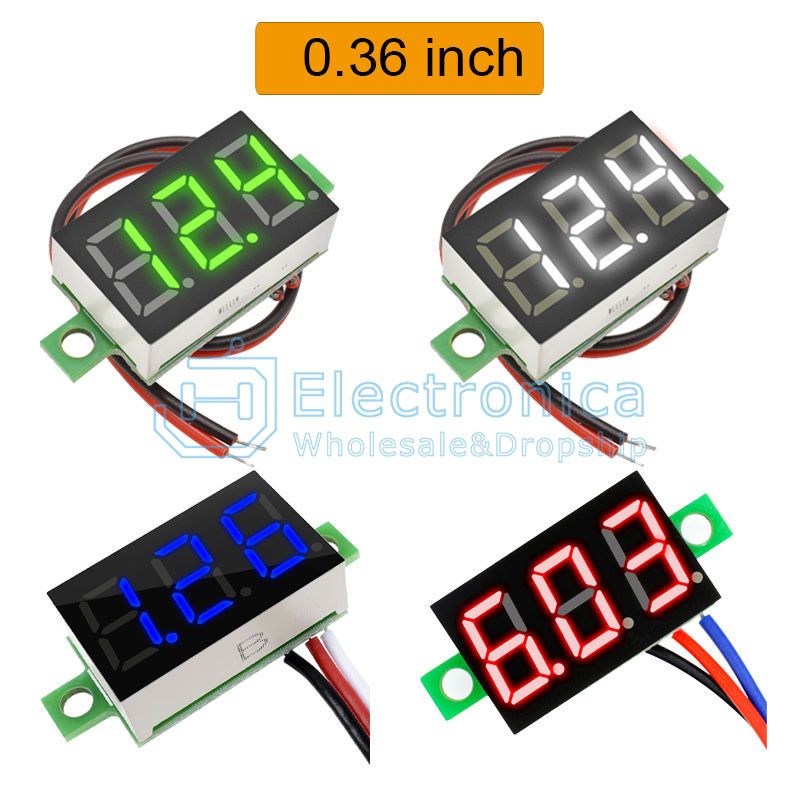

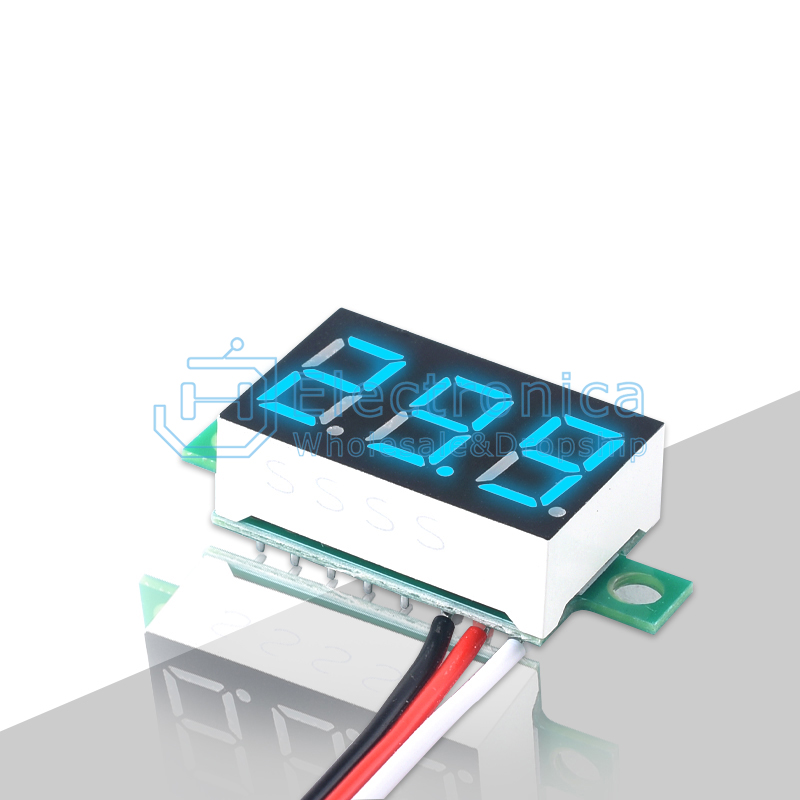

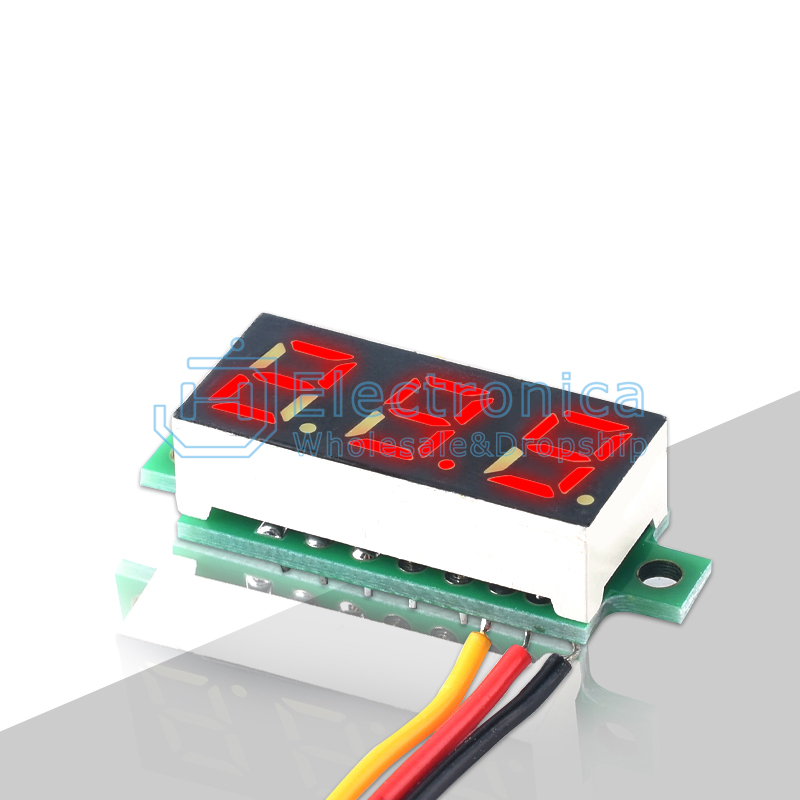

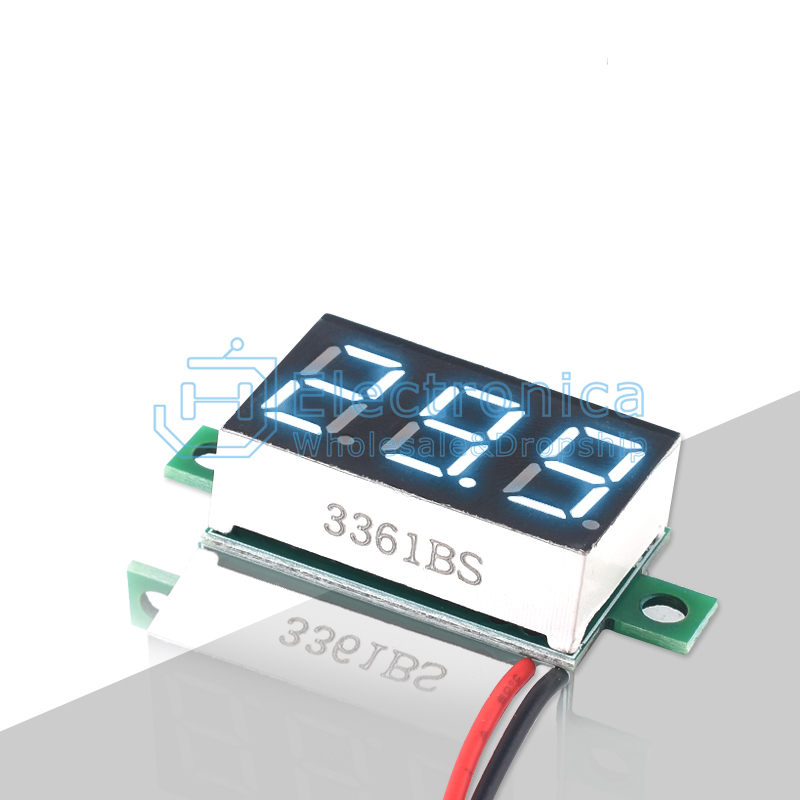

0.36inch: 2 Wires, 4-30V

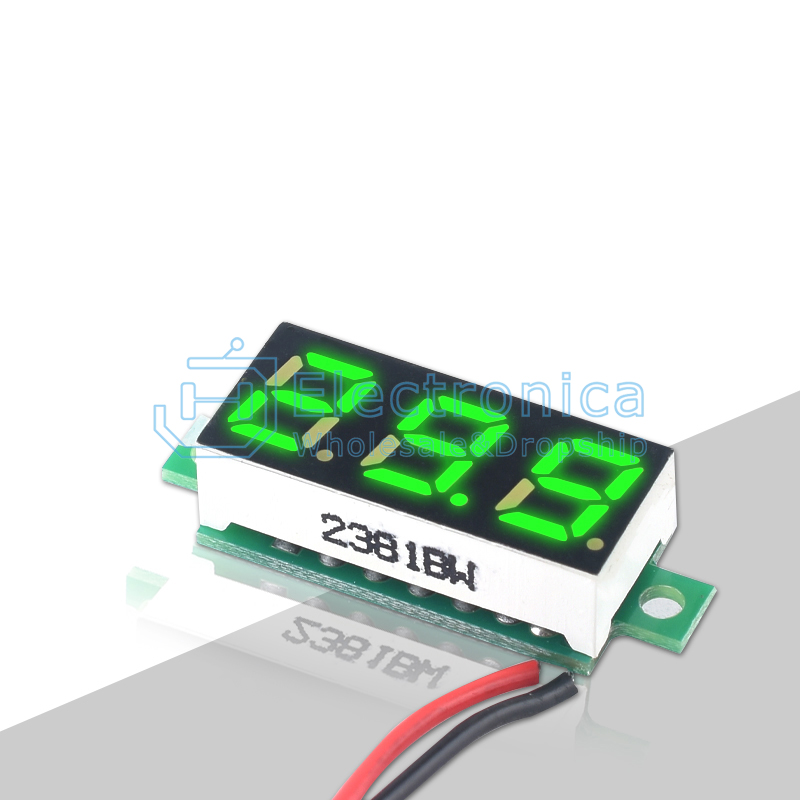

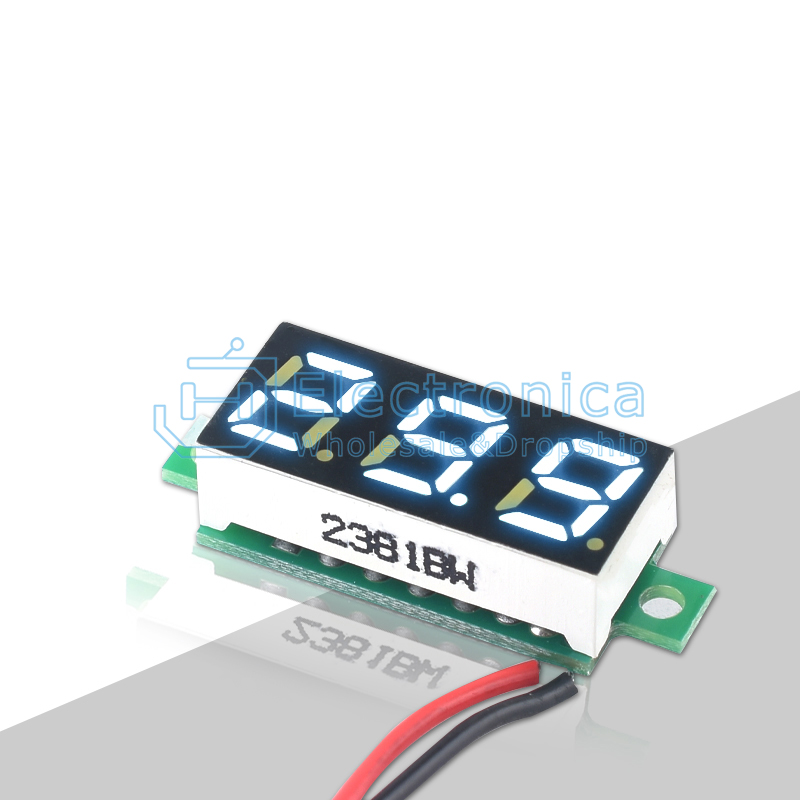

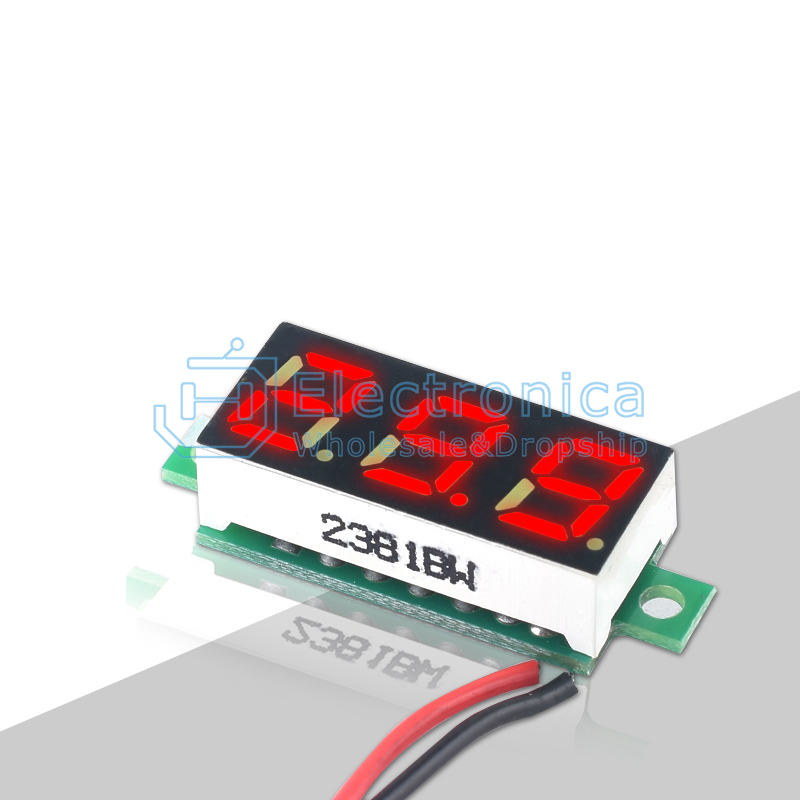

0.28inch: 2 Wires, 2.5-30V
2. Size (L*W*H)
0.56inch: 48mm*29mm*22mm
0.36inch: 33mm*14mm*10mm
0.28inch: 30mm*10mm*9.5mm
3. Wire length
0.56inch: 20cm
0.36inch: 15cm
0.28inch: 15cm
4. Mounting hole:
0.56inch: square hole 46*27.5mm
0.36inch: hole distance: 27.5mm, aperture 2.3mm
0.28inch: hole distance: 26mm, aperture 2.3mm
5. Operating temperature: -10℃~65℃
6. Operating humidity：10~80%
7. Operating pressure：80~160kPa
8. Operating current: Red ＜25mA, Green＜20mA, Blue＜20mA
9. Input resistance：＞100KΩ
10. Voltage:
Minimum supply voltage: DC4.3V
Maximum power supply voltage: DC32V
