Description
1.Size:65*29*19mm
2.Work Current:30mA (at 12V)
3.Work Voltage:DC4.0V-40V (recommended for use at 5V-35V)
4.Work mode:Trigger mode
5.Trigger signal:Low level trigger(<2V)
6.Display:0.56" 4bit Red
7.Work Temperature:-25℃~85℃
8.Work Humidity:0%~95%RH
9.Input: Count(+1),clear to zero,low level active
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

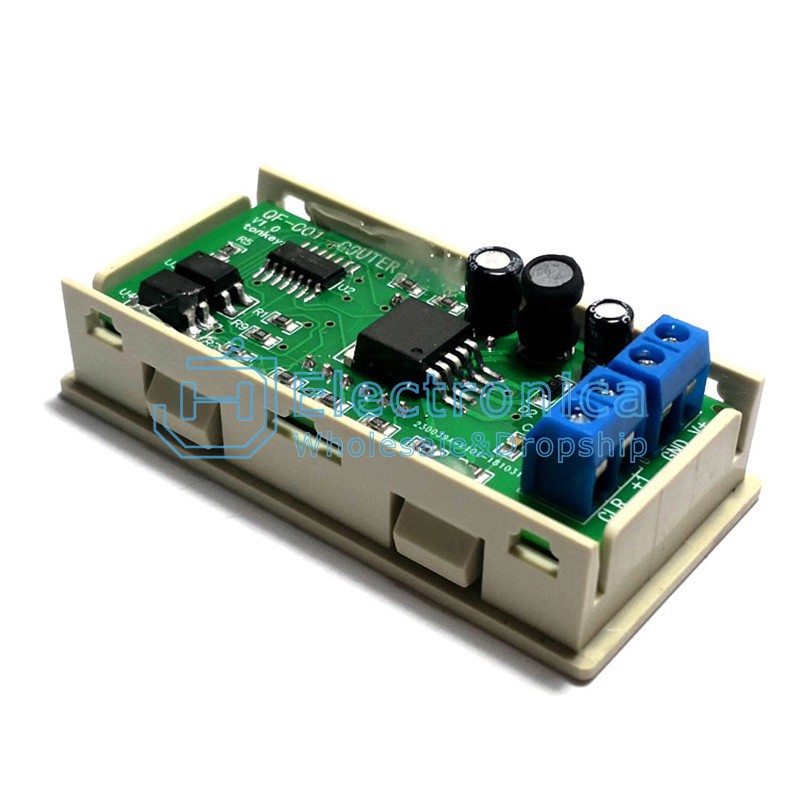

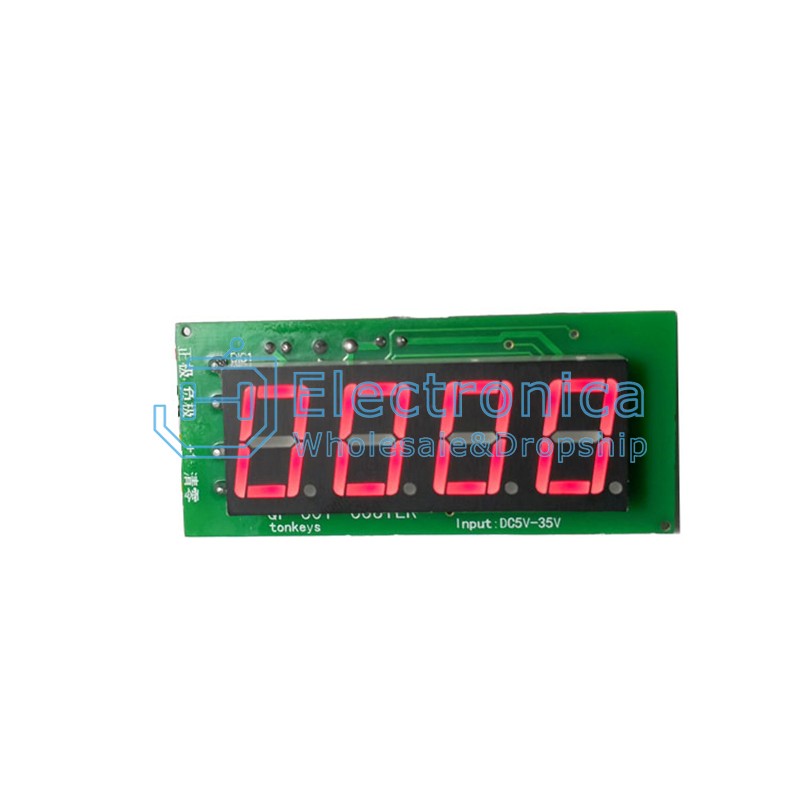

0.56inch 4 Bit Trigger Counter Module
SKU : YXS1310 Brand :
Style:
Low level/original version,red light,counting module(without shell)
