Description

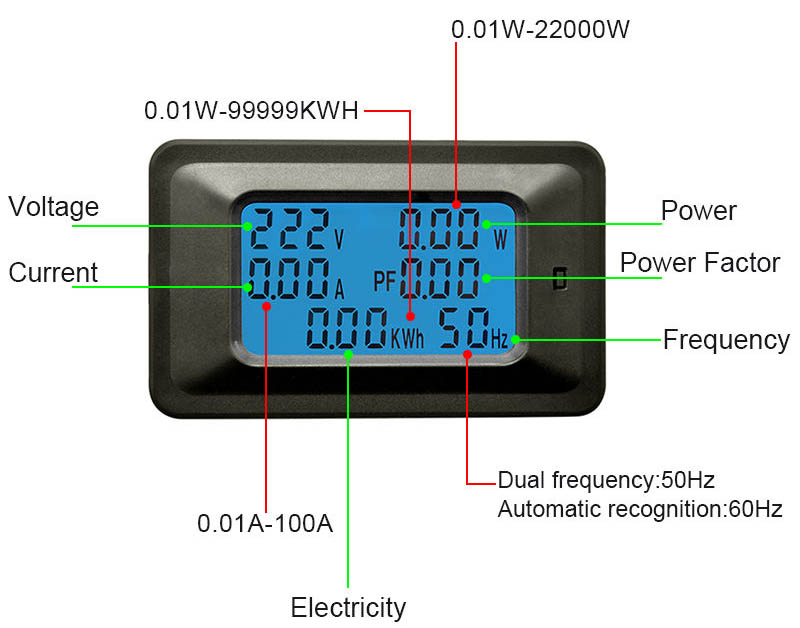

Can display voltage , current , power , power factor , energy and
frequency at the same time
Made of PC flam retardant material , which will be more safe for using ,Backlight control , short press to turn on/off backlight
Hold press for 3 second to enter the over-load power setting , hold press
for 5 second , system reset , cumulative capacity turns zero , overload power setting restore default value
Voltage measurement range is AC 50-300V , current measurement range
is 0.01-100A , frequency measurement range is 45-65Hz , energy measurement range is 0.01Wh-99999kWh

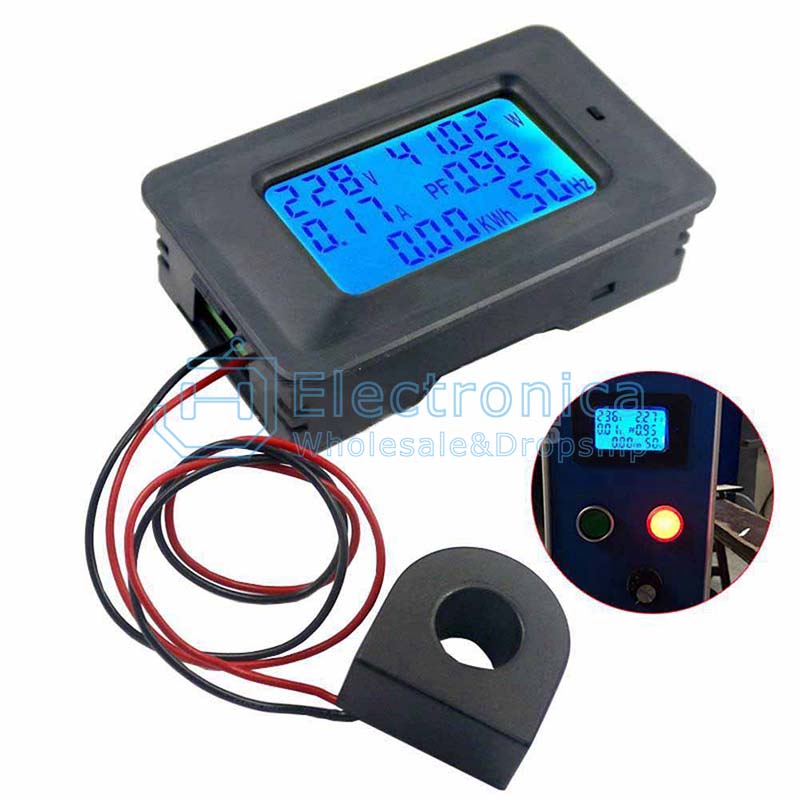

The volt amp power energy frequency panel monitor is designed with
built-in CT , no need to buy separately , powered by power grid directly
(AC 220V) , no need external power supply

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

AC110~250V 20A/100A Digital Power Energy Voltmeter Ammeter Wattmeter Tester

SKU : YXB449 Brand : JH Sourcing

Price : $ 6.57~7.04

100 +: $6.57~7.04500 +: $6.57~7.041000 +: $6.57~7.04
