Description

Low and high precision
Low starting voltage, red as low as 4.5v, green as low as 4.7v, blue as low as 5.0v.
With reverse connection protection, reverse connection does not burn.
technical parameters:
Measuring range:Red dc4.50-30.0v, green dc4.70-30.0v, blue dc5.00-30.0v
Scope of supply:No additional power supply is required. The voltage under test is used as the power supply. The range is the same as above
Limit input:DC30.0 V. Note: input voltage higher than 30V May be permanently damaged!
Margin of error:Plus or minus 1%; When it is greater than or equal to 10V, the error is 0.3v; When it is less than 10V, the error is 0.10
the input impedance:> 100 k
Working current:Red < 23mA, green < 18mA, blue < 13mA
The refresh rate:About 300 ms
Display mode:Three-digit "0.56 "LED digital tube
According to the color:Red, green and blue are optional
The length of the lead:20 cm
Overall dimensions:48 x 29 x 22 mm, length x width x thickness;
The size of hole:46 x 27 mm
Net weight:18 g
Gross weight:25 g Working temperature:- 20 ℃ ~ 65 ℃

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

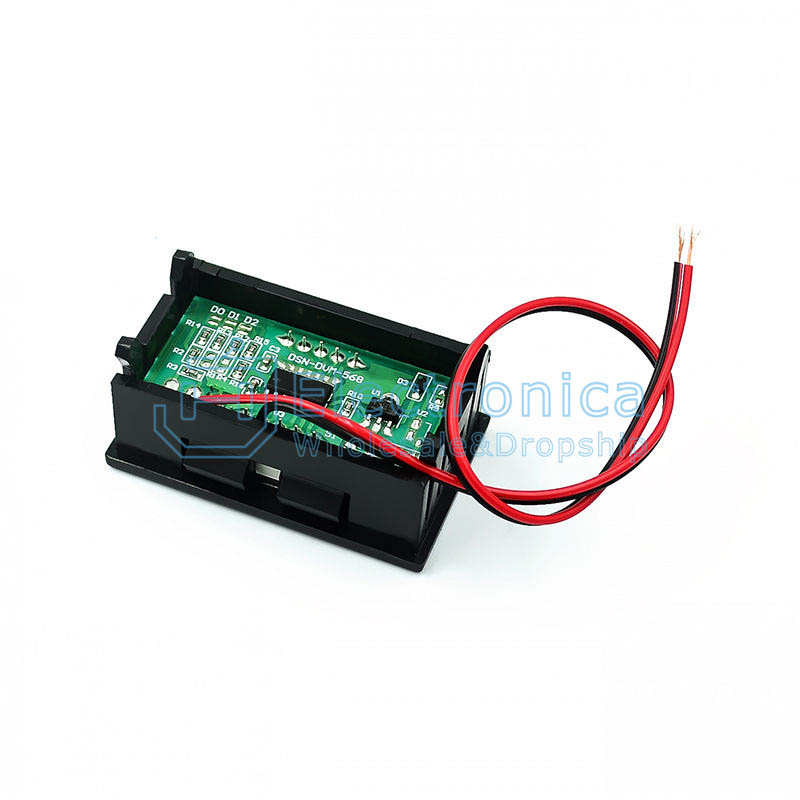

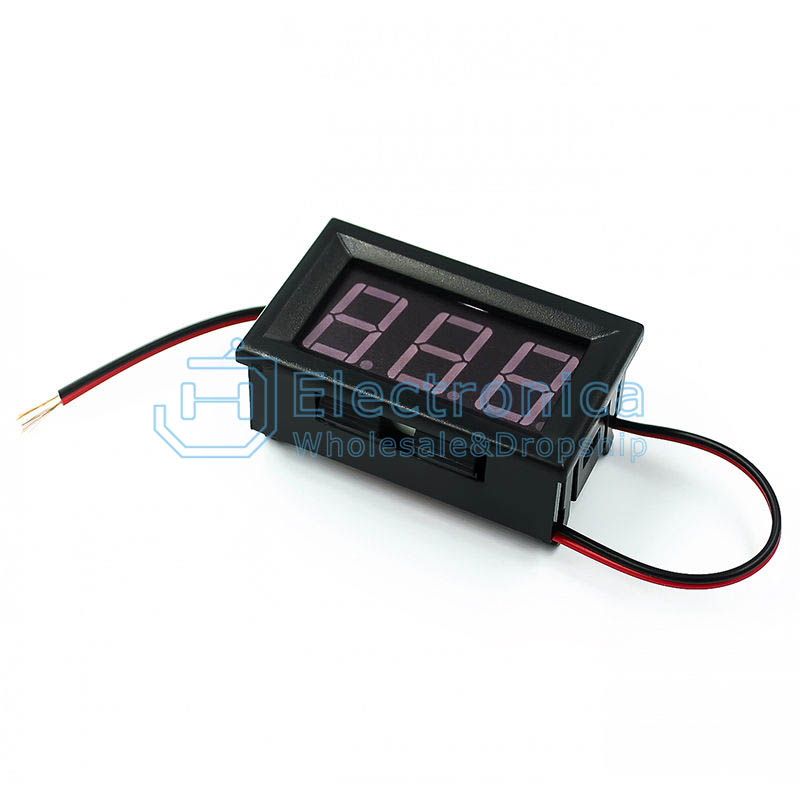

DC4.5V-30.0V Two-wire DC Voltage Meter Head

SKU : YXA630 Brand : JH Stock

Price : $ 0.30~0.34

100 +: $0.30~0.34500 +: $0.30~0.341000 +: $0.30~0.34
