Description

Product Features:
1.24 Channels,Constant-Current Sink Output
2.30mA Capability (Constant-Current Sink)
3.12-Bit (4096 Steps) PWM Grayscale Control
4.LED Power-Supply Voltage Up to 30V
5.VCC=3.0V to 5.5V
CJMCU-5947 is a 24-channel, constant-current sink LED driver. Each channel is individually adjustable with 4096 pulse-width modulated (PWM) steps. PWM control is repeated automatically with the programmed grayscale (GS) data. GS data are written via a serial interface port. The current value of all 24 channels is set by a single external resistor
CJMCU-5947 has a thermal shutdown (TSD) function that turns off all output

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

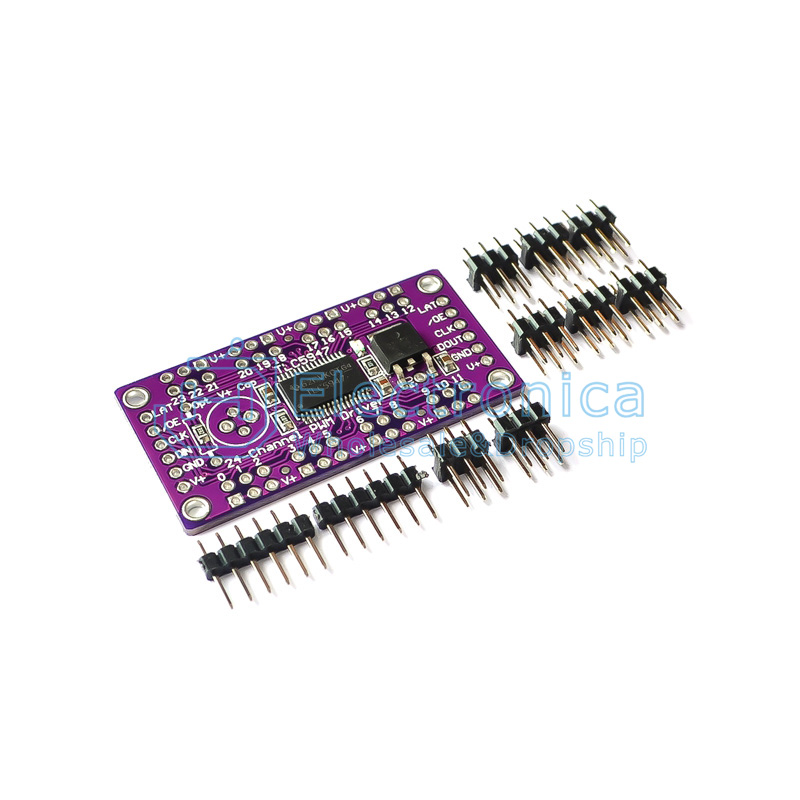

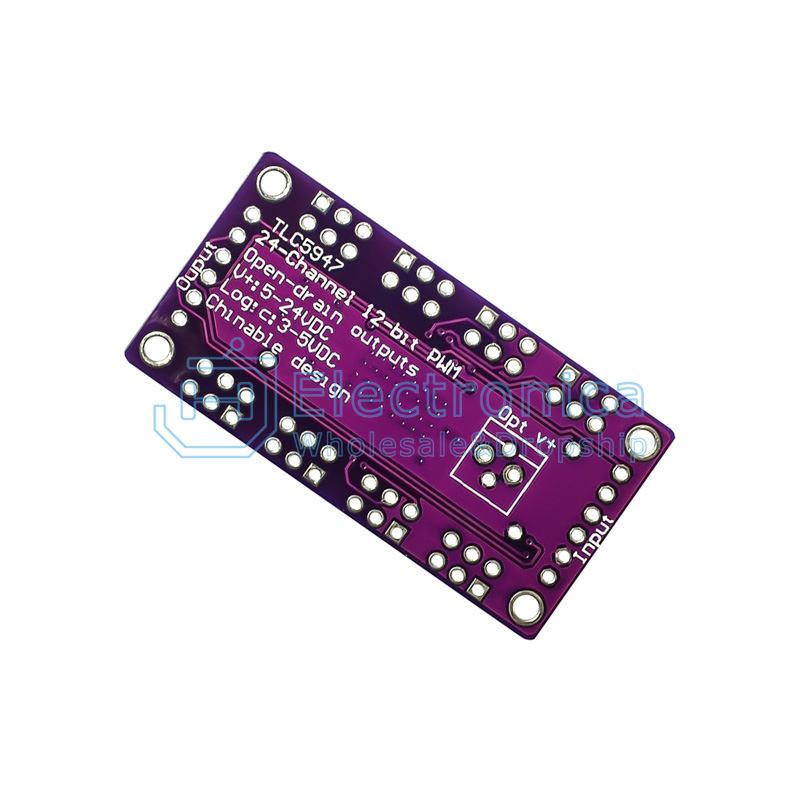

TLC5947 12-Bits 24-Channel PWM LED Drive Module

SKU : YXS1598 Brand :

Price : $ 4.78

100 +: $4.78500 +: $4.781000 +: $4.78

style：

TLC5947 12-Bits

Quantity :

- +

ADD TO CART
