Description

Size:35×33mm
Main chip:NE555
Input voltage:5V-15VDC. When powered by 5V, the output current can be around 15MA; When powered by 12V, the output current can be around 35MA
Input current:≥100MA
Output amplitude:4.2V V-PP to 11.4V V-PP (The output amplitude may vary depending on the input voltage)
Maximum output current:≥15MA (5V power supply, V-PP greater than 50%), ≥35MA (12V power supply, V-PP greater than 50%)

Applicable scope:
1. Used as a square wave signal generator to generate square wave signals for experimental development
2. Used to generate square wave signals that drive stepper motor drivers
3. Generate adjustable pulses for MCU use
4. Generate adjustable pulses and control related circuits

Features:
1. Output with LED indication, whether there is an output or not can be directly understood (LED on at low power level, LED off at high power level, LED flashing at relatively low frequency)
2. Optional output frequency range and grade, making the output frequency more continuous and adjustable
Low frequency range:1Hz~50Hz
Medium frequency range:50Hz~1kHz
Medium and high frequency range:1KHz~10kHz
High frequency range:10kHz~200kHz
3. Adjustable output frequency

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

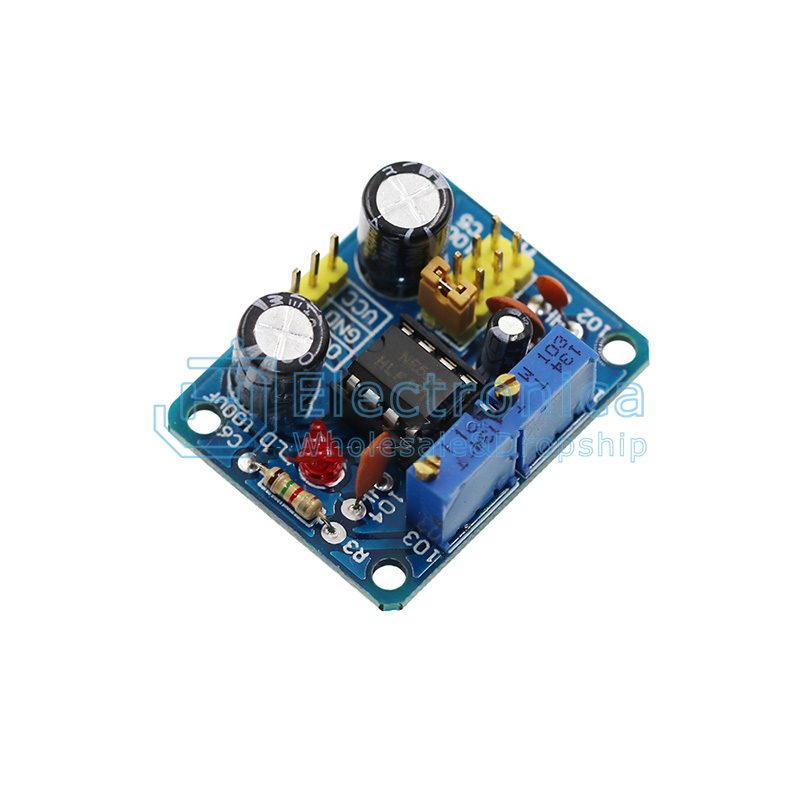

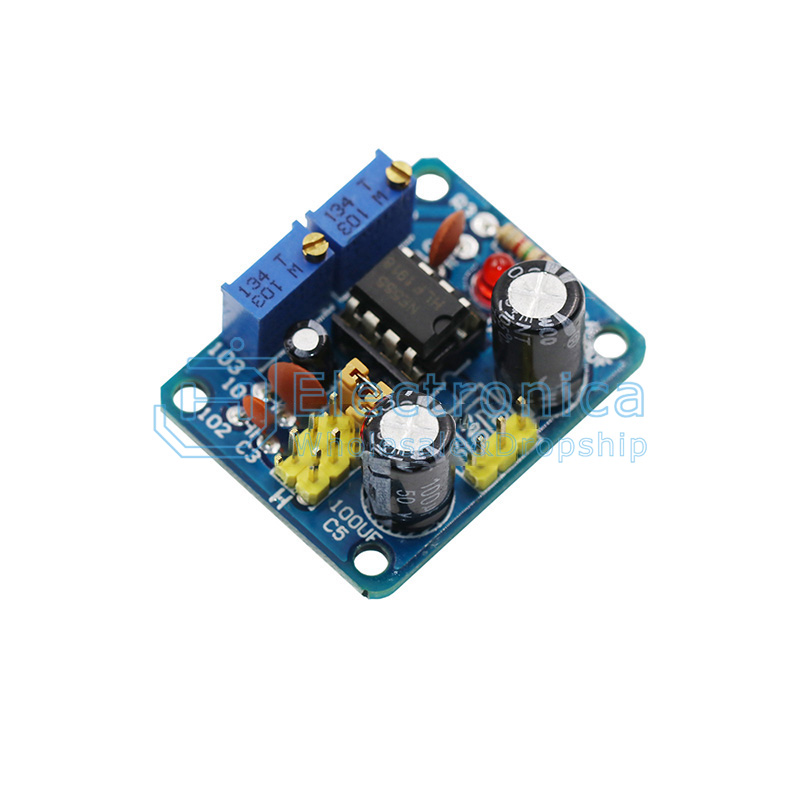

NE555 Pulse Module

SKU : YXC1075 Brand :

Price : $ 0.72

100 +: $0.72500 +: $0.721000 +: $0.72

Quantity :

- +

ADD TO CART
