Description

Power supply voltage range:3V-27V
Continuous output drive current:1500mA
Short output drive current:2500mA
Trigger method:falling edge trigger
Output state:high/open,output high level is equal to the supply voltage
The output of the module is equipped with a freewheeling diode,which can directly drive inductive components such as relays,electromagnets, and motors
The maximum switching speed can be up to 6 times/second.
Size:10.5mm*11.8mm*4.3mm(without pin length)
Quiescent current of the module at each supply voltage:
3V-10μA
5V-240μA
12V-1.7mA
24V-4.5mA

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

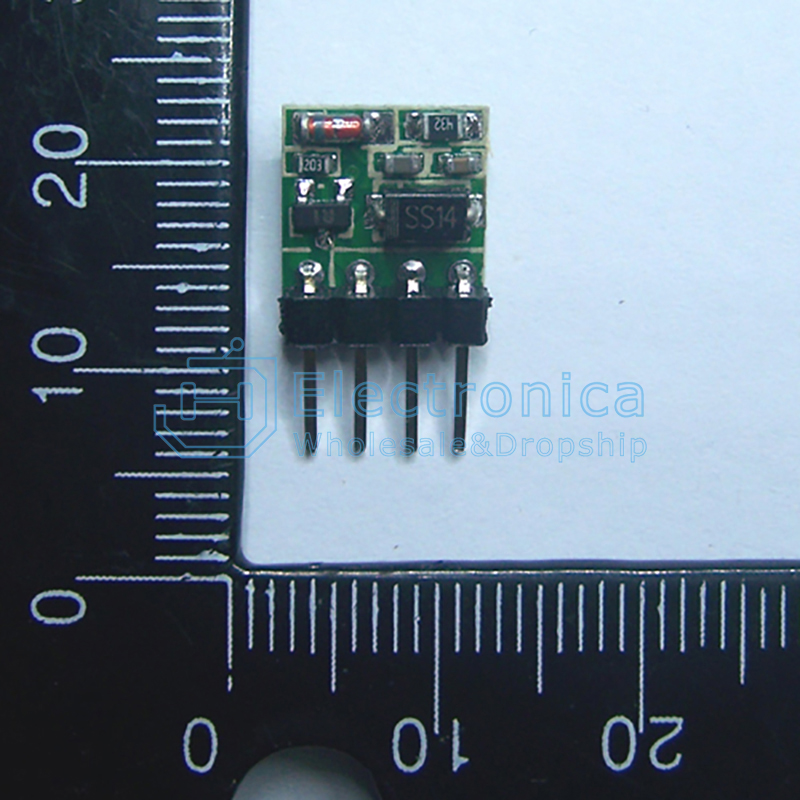

KY002 Single Button Bistable Switch Module

SKU : YXS1378 Brand :

Price : $ 1.27

100 +: $1.27500 +: $1.271000 +: $1.27
