Description

1. Working voltage: 3.3 ~ 30V;
2. Frequency range: 1Hz ~ 150KHz;
3. Frequency accuracy: the accuracy in each range is about 2%;
4. Signal load capacity: the output current can be about 5 ~ 30ma;
5. Output amplitude: PWM amplitude equal to the supply voltage;
6. Ambient temperature: -20 ~ +70 ℃

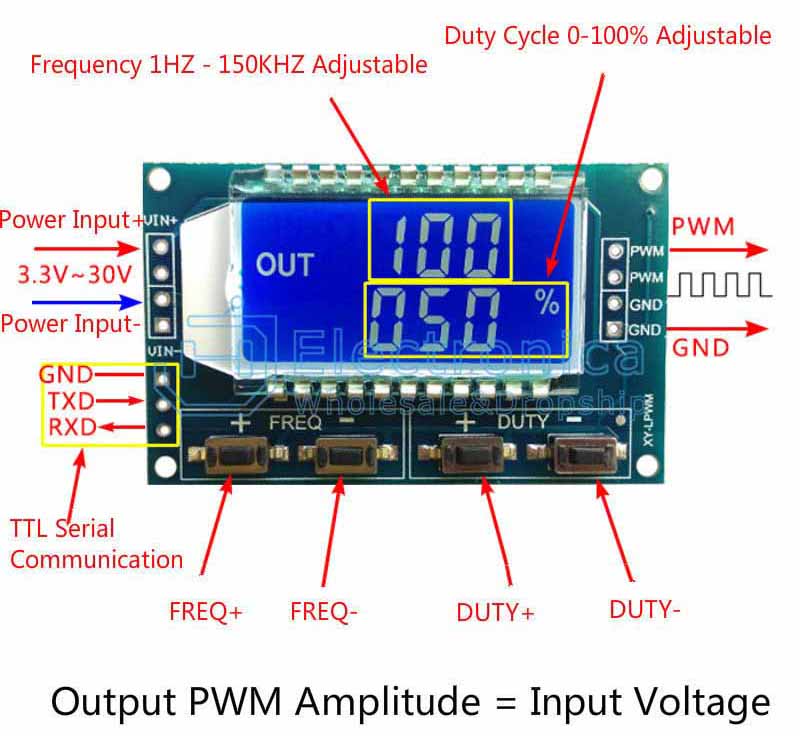

Module Highlights:
1.LCD LCD display frequency and duty cycle,very clear,PWM output can set frequency and duty cycle respectively
2.Wide frequency range and high precision
3.Serial port communication

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

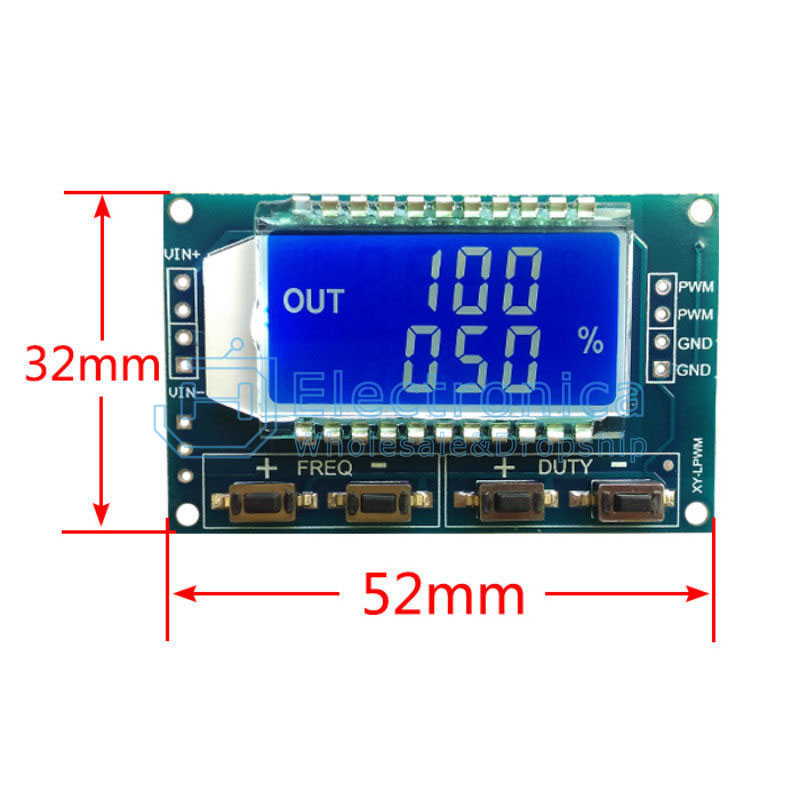

1 Channel PWM Pulse Frequency Signal Generator Module

SKU : YXB585 Brand : JH Sourcing

Price : $ 1.39
