Description

1.Model: YYNMOS-1 (input and output are completely isolated)
2.Input Signal: 3-20V PWM signal
3.PWM Frequency: 0-20KHz
4.Output Capacity: DC 3.7-27V, and the current is within 10A
5.Application: output port can control high power devices, such as motors, lamps, LED lamp strings, DC motors, micro water pumps, electromagnet valves; it can input PWM to control motor rotate speed and the brightness of lamp

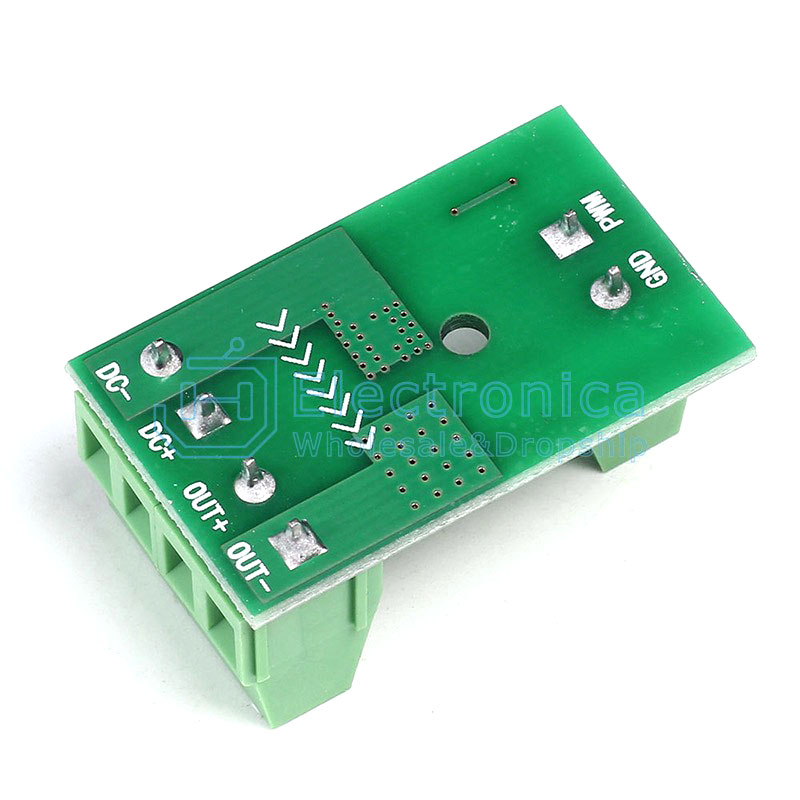

Interface Introduction:
1.DC+: device DC power positive
2.DC-: device DC power negative
3.PWM: signal input port (connects MCU IO ports, PLC interface, DC power)
4.GND: signal negative port
5.OUT+: output port positive (connects device positive)
6.OUT-: output port negative (connects device negative)

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

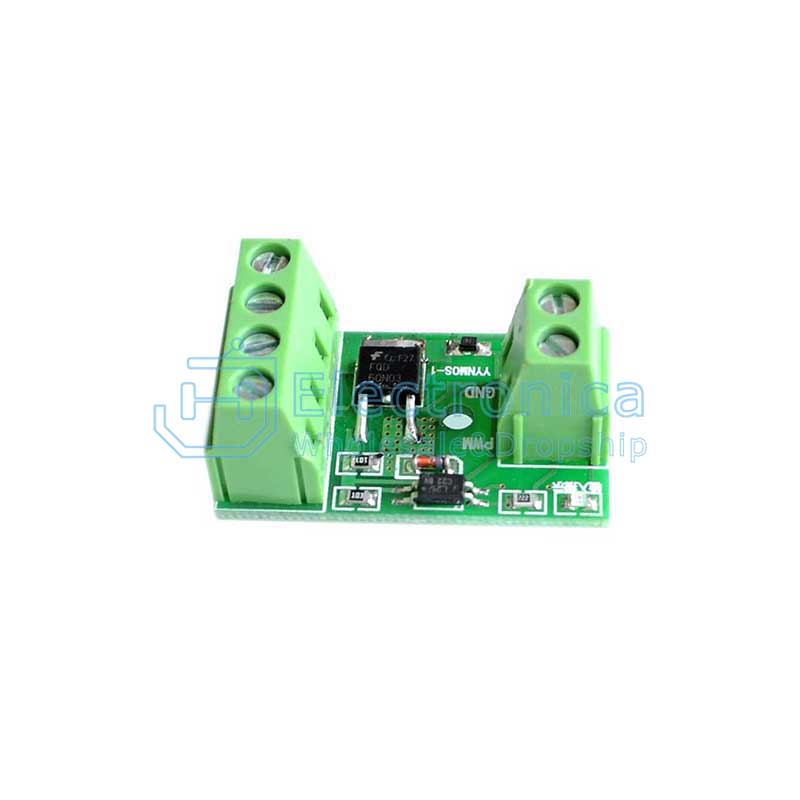

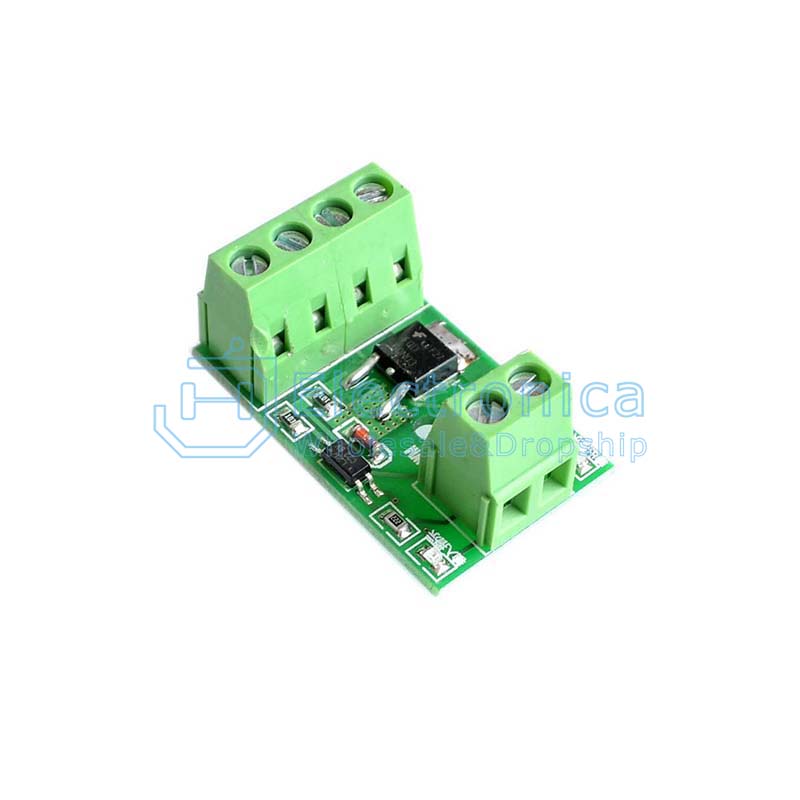

MOSFET PWM Switch Control Board

SKU : YXA307 Brand : JH Stock

Price : $ 0.53

100 +: $0.53500 +: $0.531000 +: $0.53

Quantity :

- +

ADD TO CART
