Description

Working voltage: DC5V-36V
Trigger signal source: digital high level (DC3.3V-20V), can be connected to the microcontroller IO port, PLC interface, DC power supply, etc., can connect PWM signal, support signal frequency 0-20khz
Output: DC5V-36V, continuous current at room temperature 15A, power 400W, assisted cooling conditions, the maximum current up to 30A.
Applications: Output can control high power equipment, motors, light bulbs, LED lights, DC motors, mini pumps, solenoid valves, etc., you can enter the PWM, control the motor speed, lamp brightness and so on.
Operating temperature: -40~85 ° C
Size: 3.4 x 1.7 x 1.2cm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

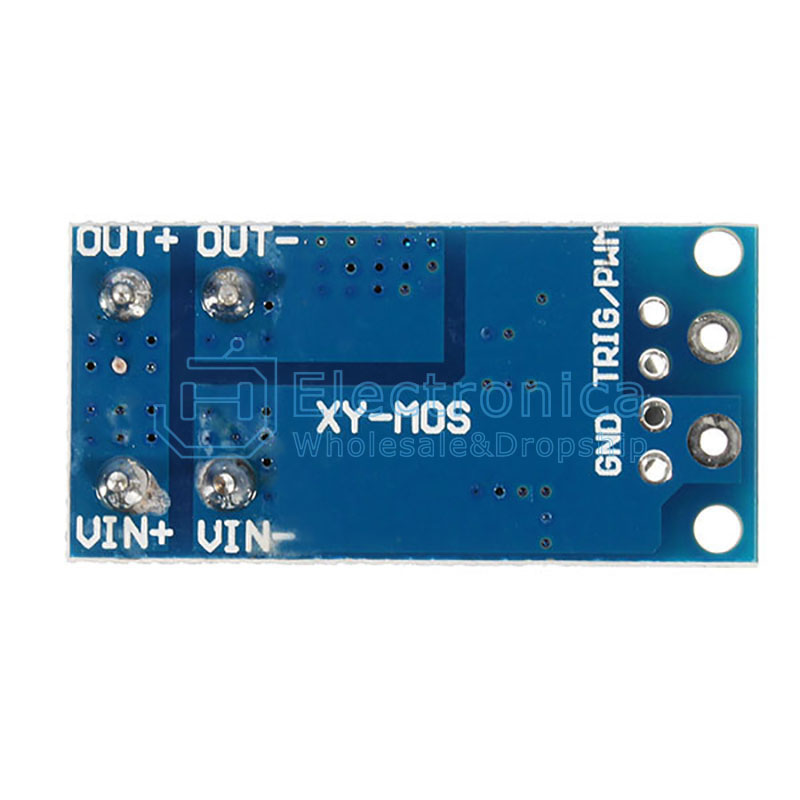

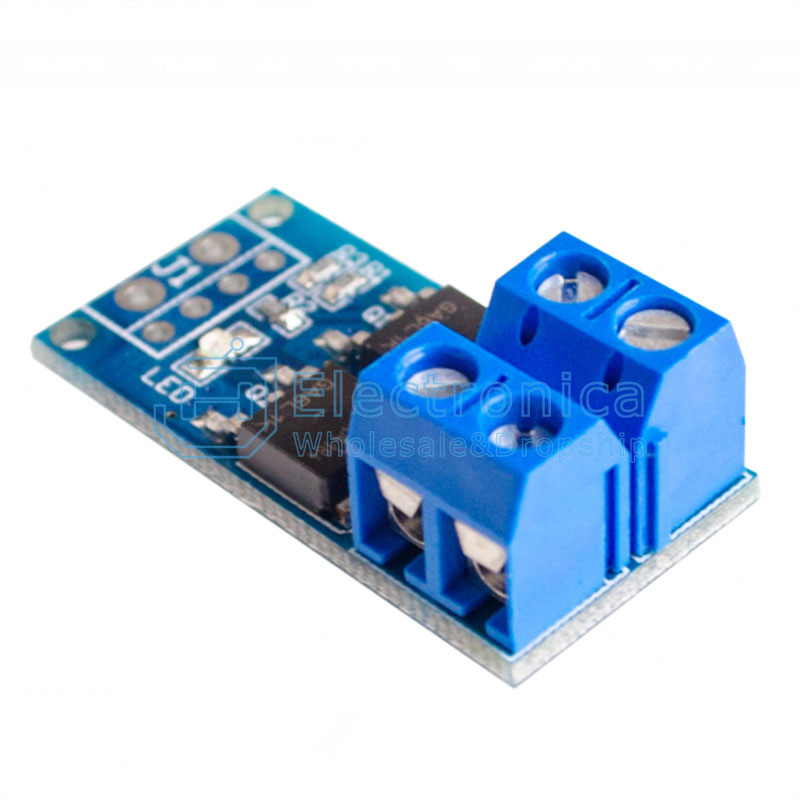

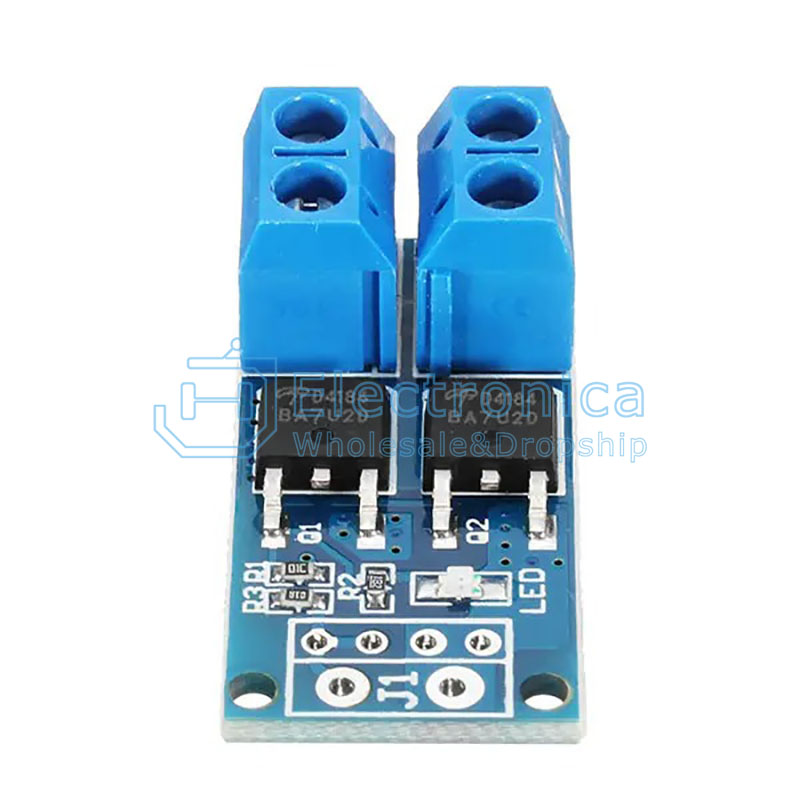

MOS PWM Trigger Switch Drive Module

SKU : YXA270 Brand : JH Stock

Price : $ 0.18

100 +: $0.18500 +: $0.181000 +: $0.18
