Description

Voltage: DC8V-55V(wide voltage anti-connection reverse protection)
Driving current: Max. 10A, (12A fuse is recommended to be connected in series at the output end)
Standby current: <17mA
Mounting hole: 3mm in diameter
Product size: 64mm*35mm*19mm(length * width * height)
Operating temperature: -20℃~70℃

Notes:
1.The digital tube flashes at the moment of power-on(normal phenomenon,no need to worry)
2.When the driving current is close to the limit,it is recommended to adopt a series fuse at the output end
3.The DC motor speed control controller cannot be installed in places where there is dripping water and children can reach it
4.After wiring,check whether the line is correct before powering on,so as not to accidentally burn the thermostat and load equipment
Wiring method:
"M+"and"M-" are connected to the positive and negative poles of the output,M+ is positive and M- is negative
"VIN"and"GND" are connected to the positive and negative poles of the input,Vin is positive,GND is negative(the input supply voltage is DC8V-55V)

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

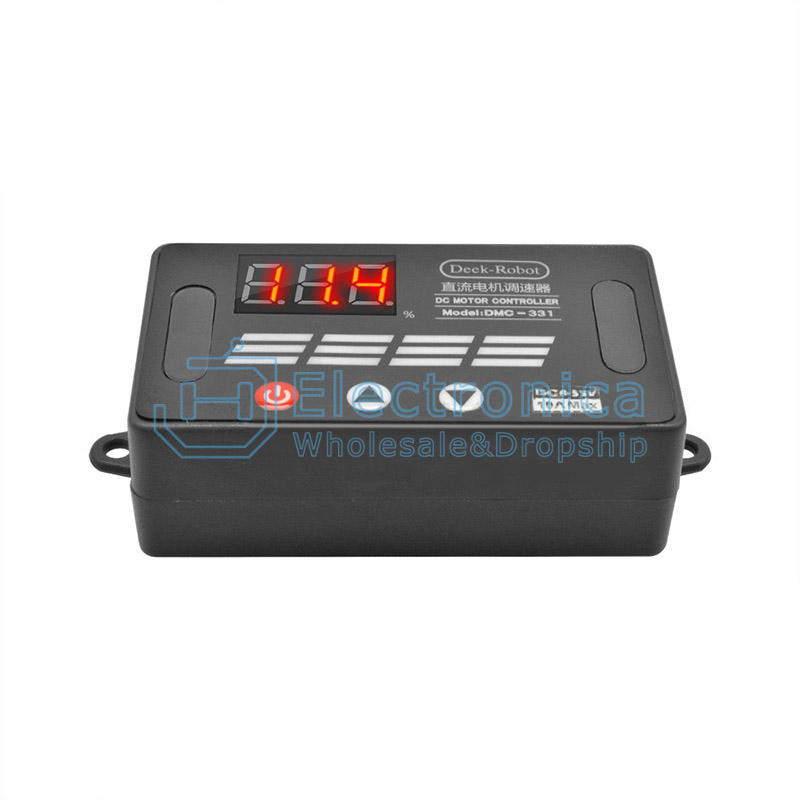

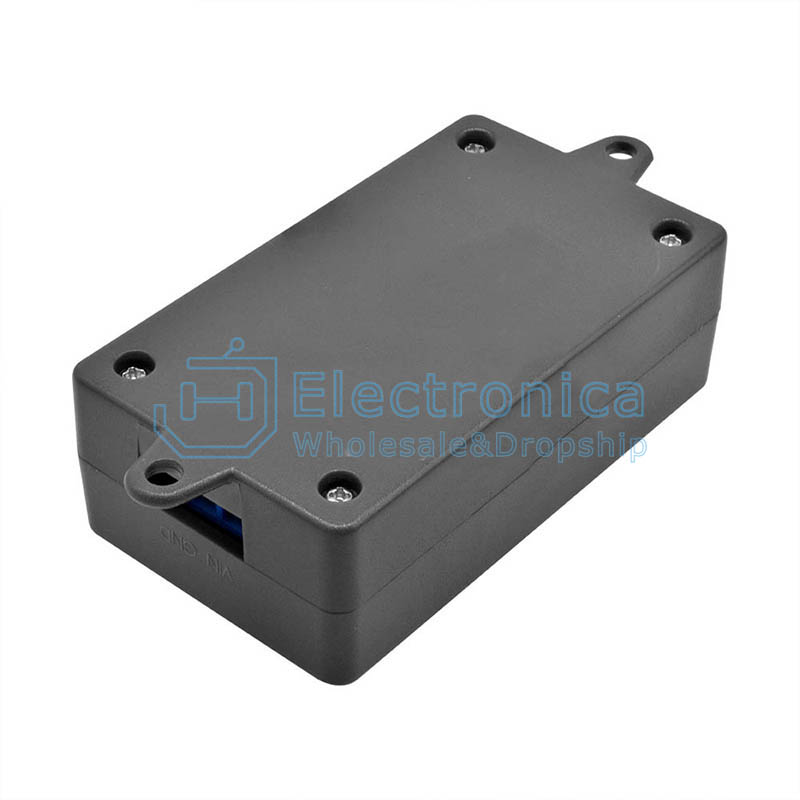

DC12V24V36V48V 10A PWM Motor Governor

SKU : YXB562 Brand : JH Sourcing

Price : $ 5.38

100 +: $5.38500 +: $5.381000 +: $5.38
