Description

Performance:
Supply voltage range:3V-27V
Continuous output driving current:1500mA
Short time output driving current:2500mA
Size:10.5mm*11.8mm*4.3mm(without pin length)
Trigger method:Falling edge trigger
Output status:High level/open circuit, output high level equal to power supply voltage
The module output end is equipped with a continuous current diode, which can directly drive inductive components such as relays, electromagnets, motors, etc
The maximum switching speed can reach 6 times/second

Function:
1. After power on, the output end Vo is in an open circuit state
2. After triggering, the Vo outputs a high level (power supply voltage), and then triggers again, causing the Vo to open circuit and cycle like this

Static current of the module at various power supply voltages:
3V-10uA
5V-240uA
12V-1.7mA
24V 4.5mA

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

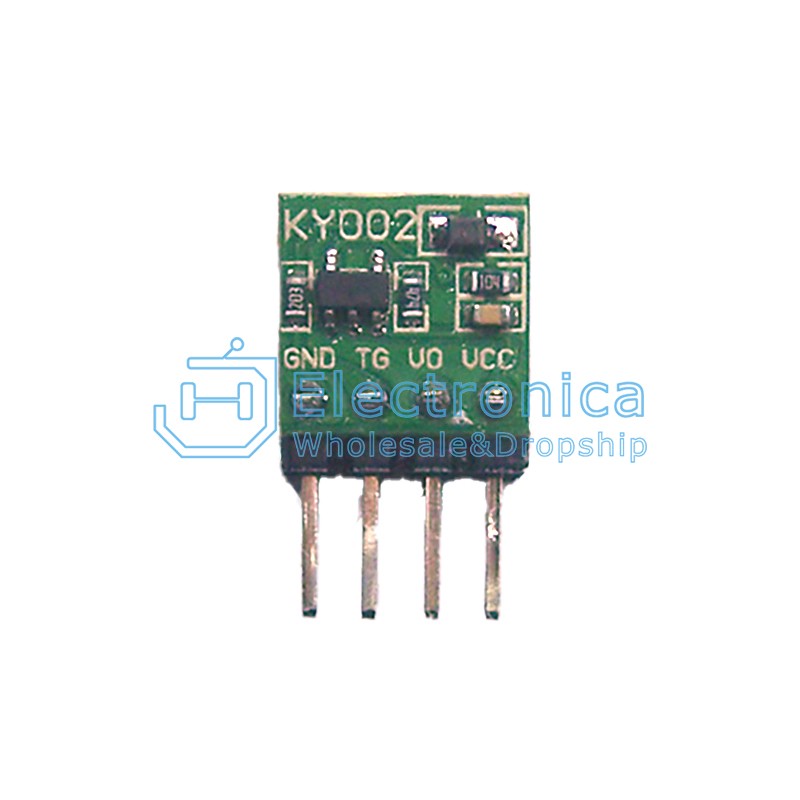

KY002 Single Button Bistable Module

SKU : YXS1275 Brand :

Price : $ 1.27

100 +: $1.27500 +: $1.271000 +: $1.27
