Description

Model: SCT013

Frequency: 50HZ-150KHZ

Open-close transformer SCT-013 rated input current: 100A Model: SCT-013 rated input current: 60A/100A

Weight:60g

Features:
Size of the opening:

13mm×13mm, fully compatible with similar foreign products;

non-linearity ±3% (10%～120% of rated input current);

lead length 1.5 meters, standard Φ3.5 three-core plug output;

current and voltage two output forms ( Voltage output type built-in sampling resistor).

Use:

Used for current measurement, monitoring and protection of AC motors, lighting equipment, air compressors, etc.

Core material: Ferrite Mechanical strength: The number of opening and closing times is not less than 1000 (tested at 20℃)

Safety index: Dielectric strength (between shell and output) 6000V AC/1min Flame retardant characteristics meet UL94-V0 Working temperature: -25℃～+70℃

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

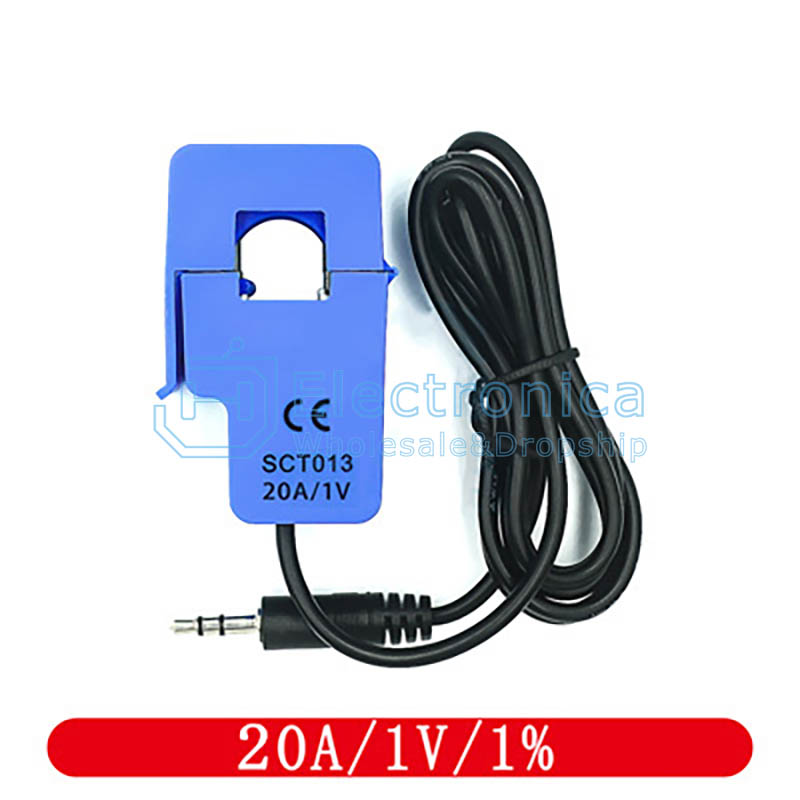

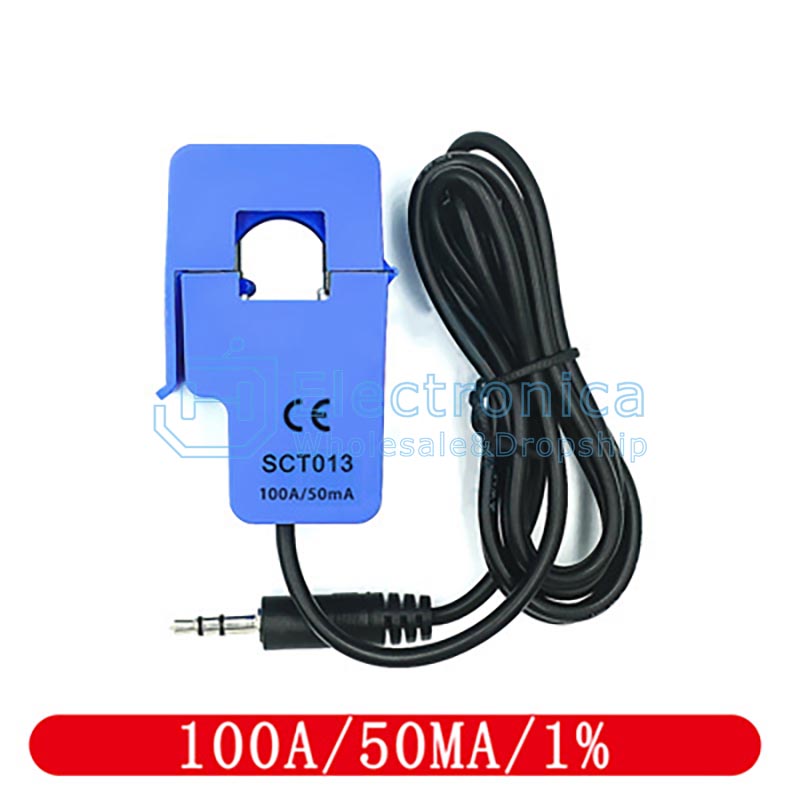

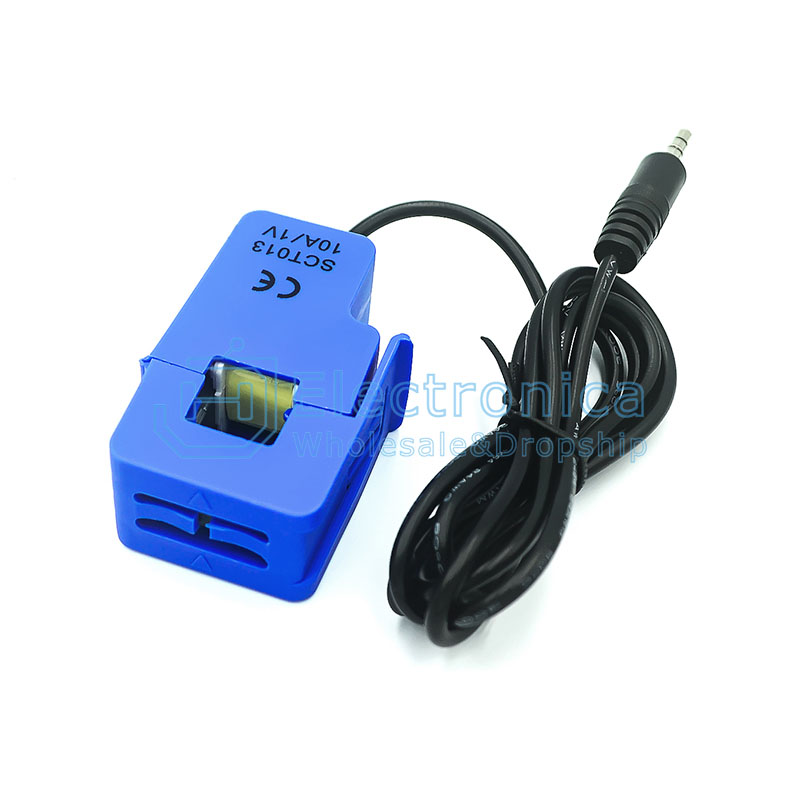

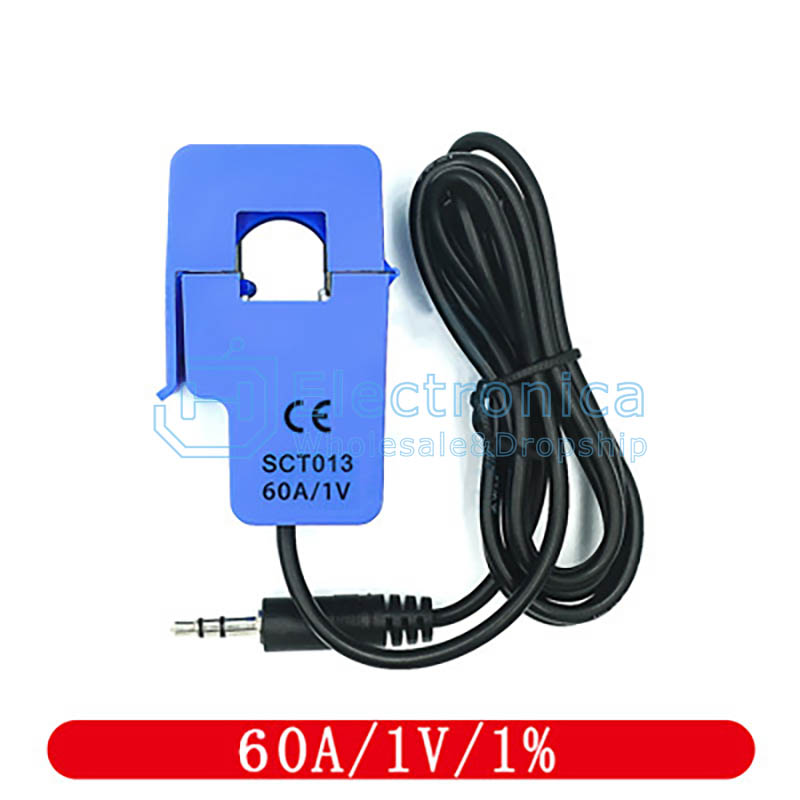

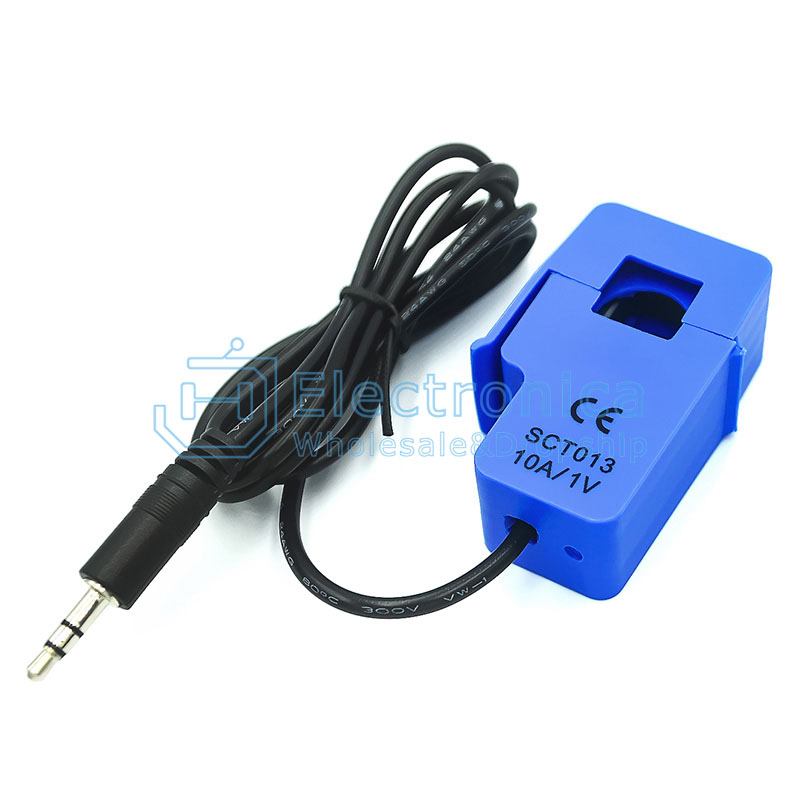

SCT-013-000 5/10/15/20/30/50/60/100A Switching Current Transformer

SKU : YXA286 Brand : JH Stock

Price : $ 2.70

100 +: $2.70500 +: $2.701000 +: $2.70
