Description

Size: long 37mm* wide 31mm*high 16.5mm

Main chip: LM393 amplifier, WCS1700

Working voltage: DC 5V

Power current:3.5mA
Working temperature:-20℃~125℃
Isolation voltage:1.5KV

Eight characteristics:
1 signal output instructions;
2 the current detection range of 70A + AC:50A + DC;
3 the current detection resolution 32mV/A;
4 the output of the flow signal;
5 the flow signal is set to adjust the critical point, set the resolution of 3A;
6 with the installation hole, to facilitate the installation of the firmware;
7 sampling current conversion analog signal output, can be connected to the ADC, TTL level signal output, can be connected to the micro controller IO port control.
8 the output signal is: analog signal and level signal.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

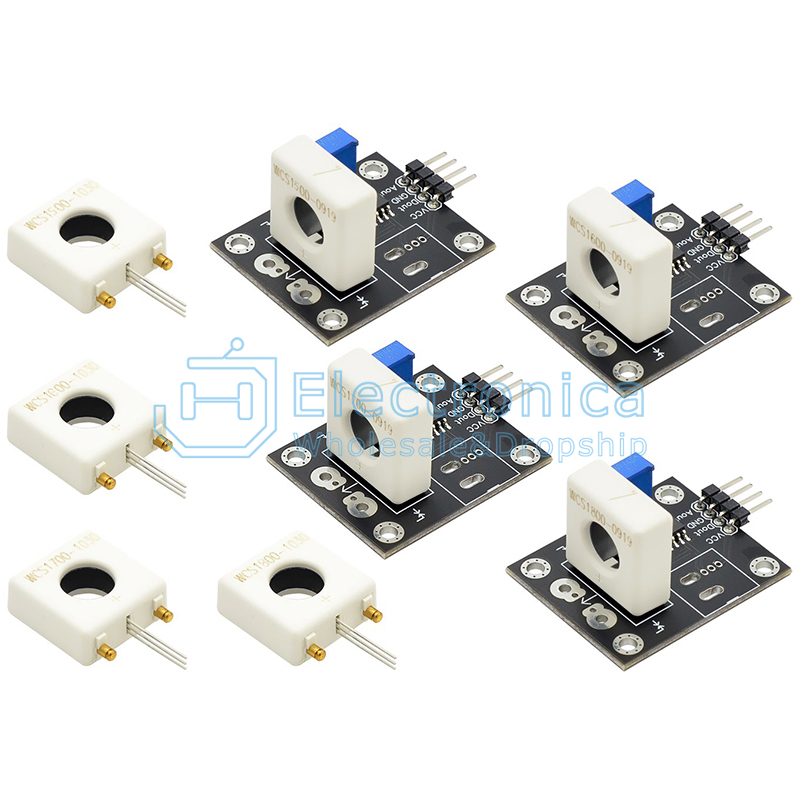

WCS1700/1800/1600/1500 Hall Current Sensor Overcurrent Protection Module

SKU : YXK367 Brand : JH Stock

Price : $ 3.15~4.31

100 +: $3.15~4.31500 +: $3.15~4.311000 +: $3.15~4.31

style：

WCS1500 module 200A

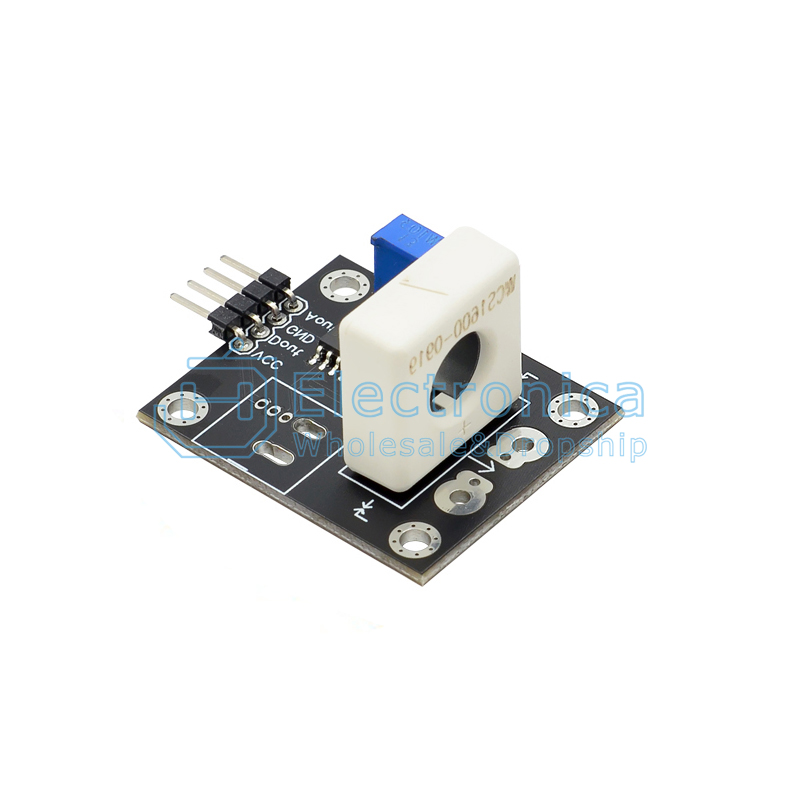

WCS1600 module 100A
WCS1700 module 70A

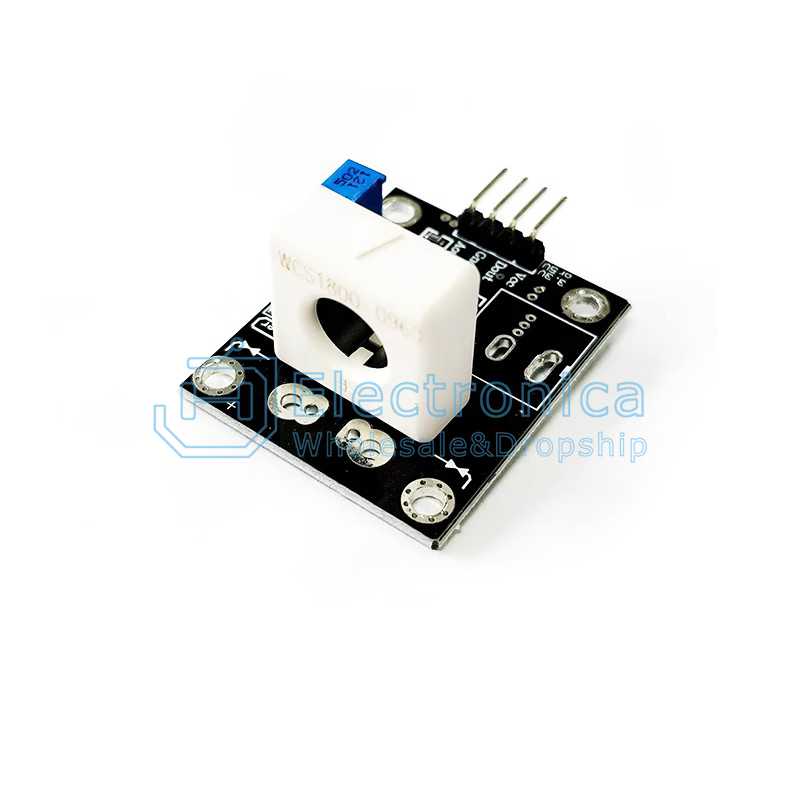

WCS1800 module 35A
WCS1500-200A sensor head

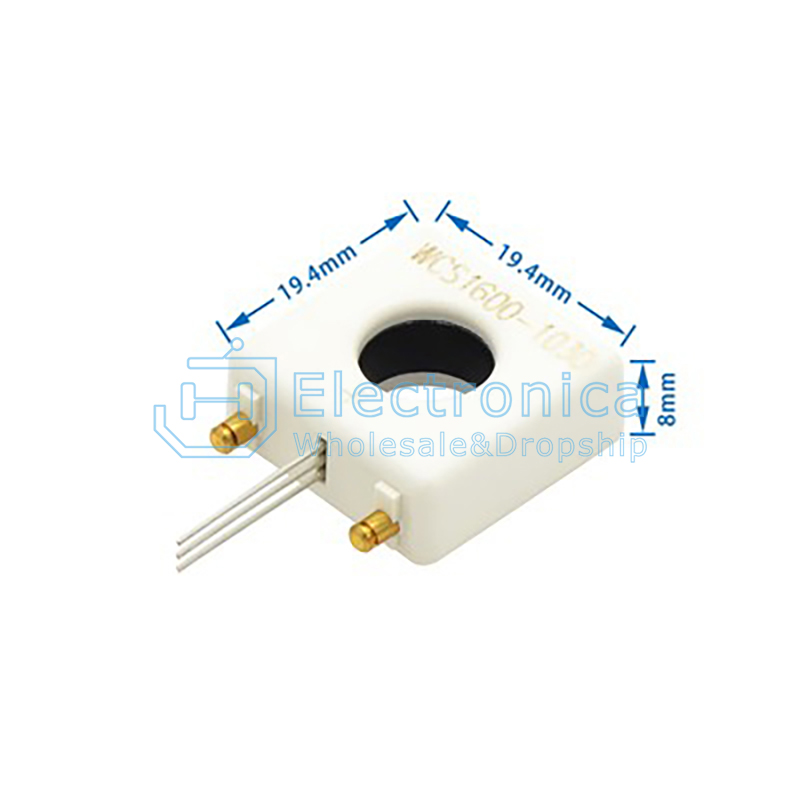

WCS1600-100A sensor head
WCS1700-70A sensor head
WCS1800-35A sensor head
