Description

Rated input:AC 20A
Rated output:AC 10mA
Rated sampling resistance:100Ω
Rated sampling voltage:AC 1V
Accuracy level:0.1
Normal current:AC 0~80A(RL≤80Ω)
Maximum current:AC 0~120A(RL≤10Ω)
Secondary internal resistance:146±10Ω
Net weight of product:25g
High permeability amorphous nanocrystalline magnetic core:high permeability, high saturation magnetic induction intensity, high working temperature, can continuously work at 120 ° C, low coercivity, low loss, low magnetostriction coefficient, excellent thermal stability
High quality OA-155 enameled wire:Use high-quality enameled wire with good insulation, high conductivity, and long service life

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

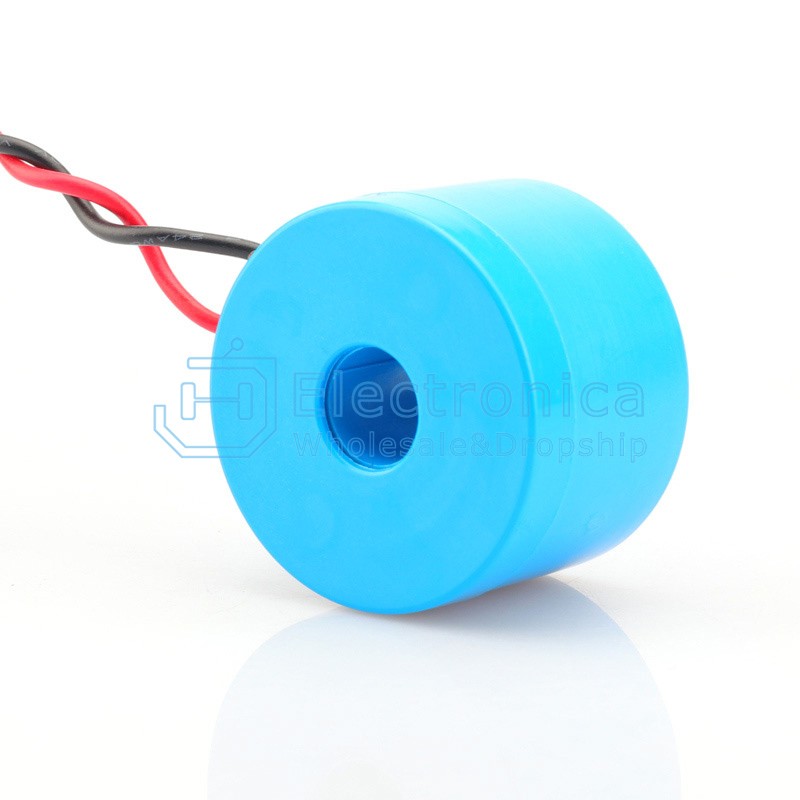

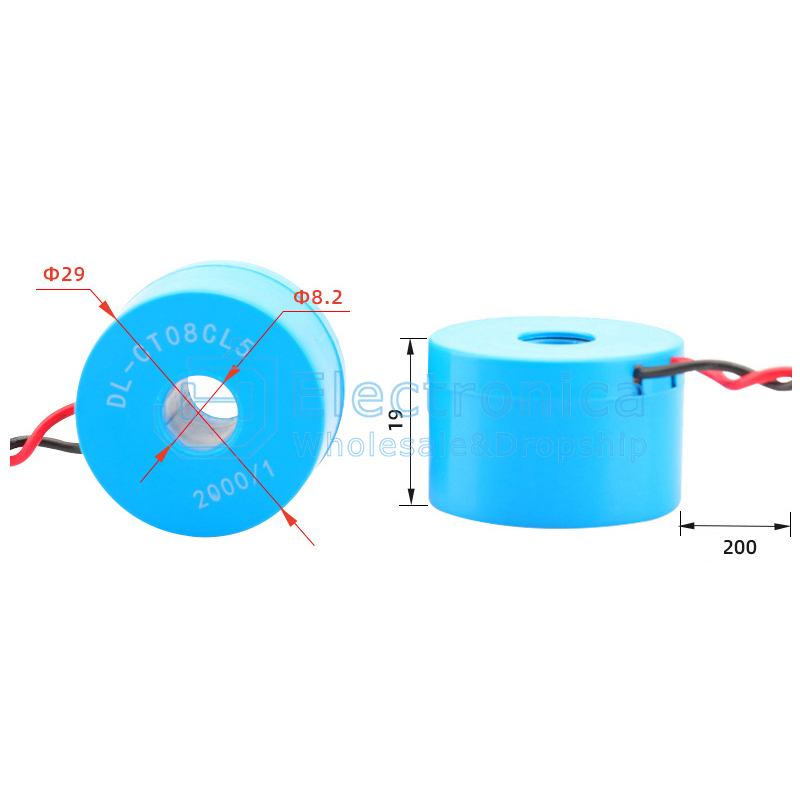

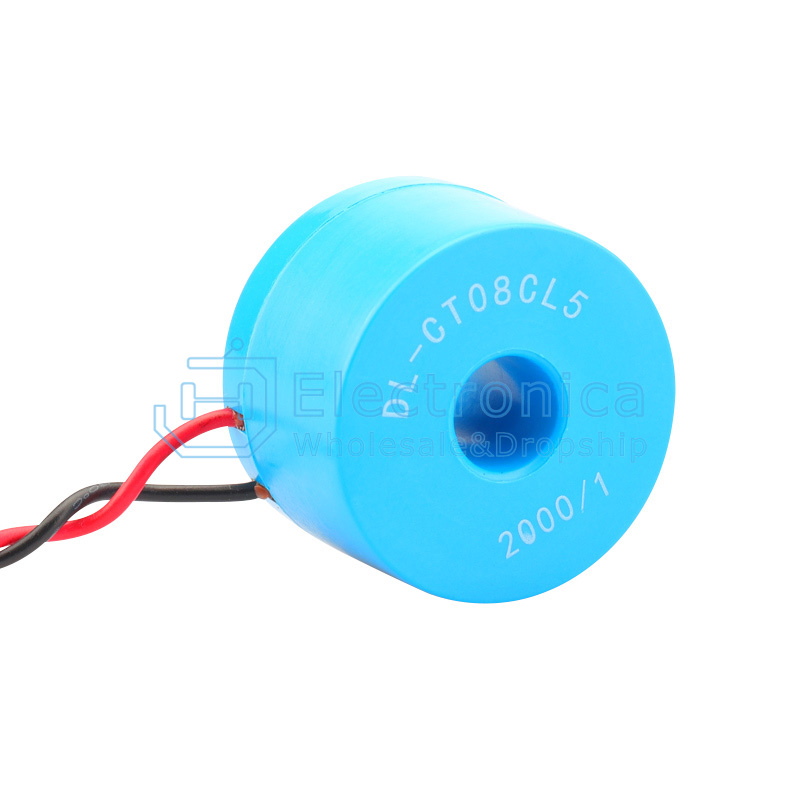

DL-CT08CL5-2000/1 Micro Current Transformer

SKU : YXC992 Brand :

Price : $ 0.95

100 +: $0.95500 +: $0.951000 +: $0.95

style：

DL-CT08CL5-2000/1
