Description

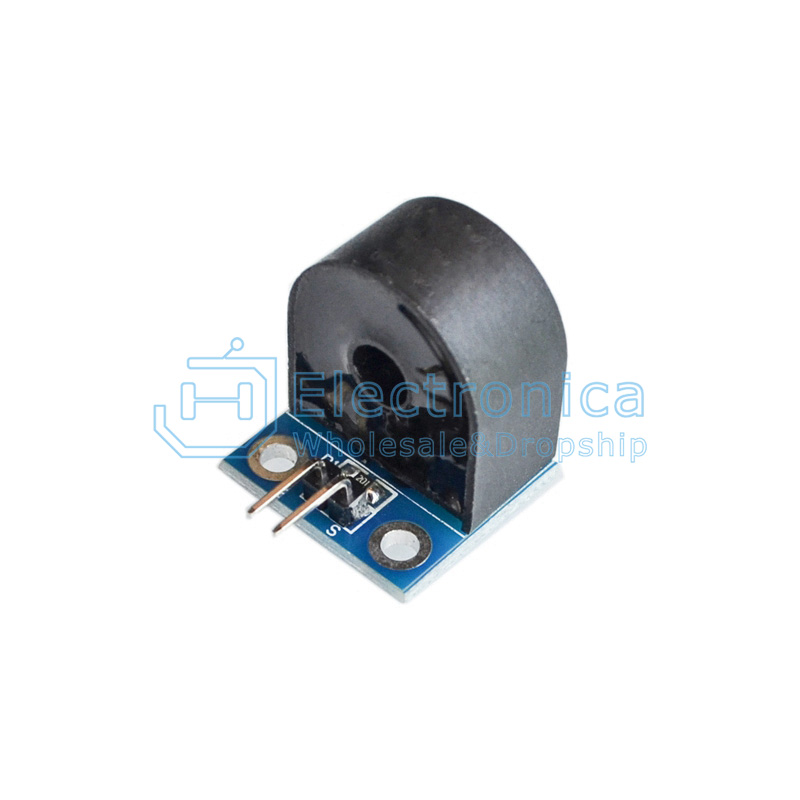

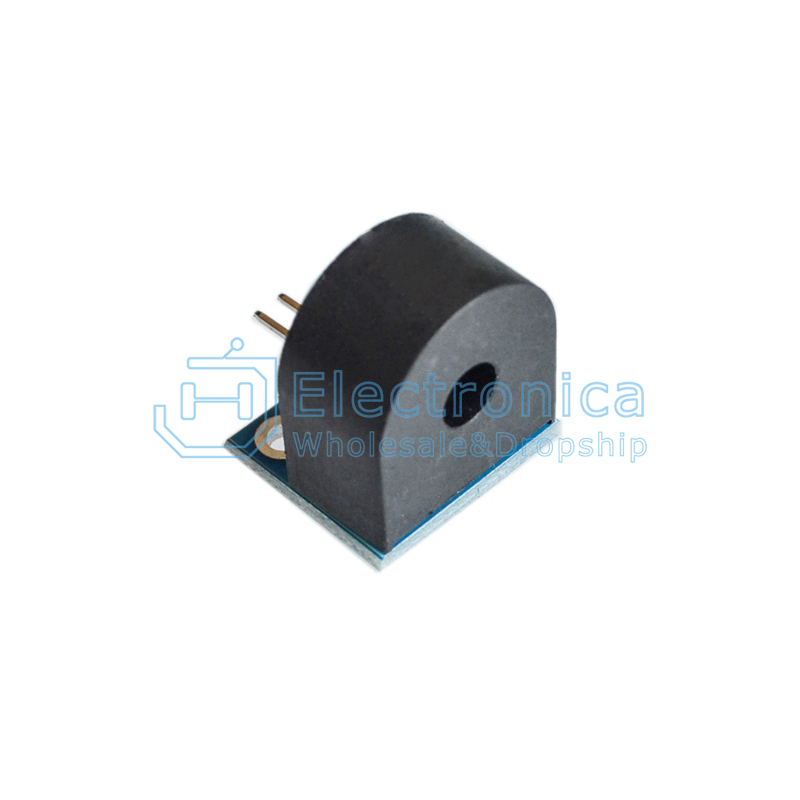

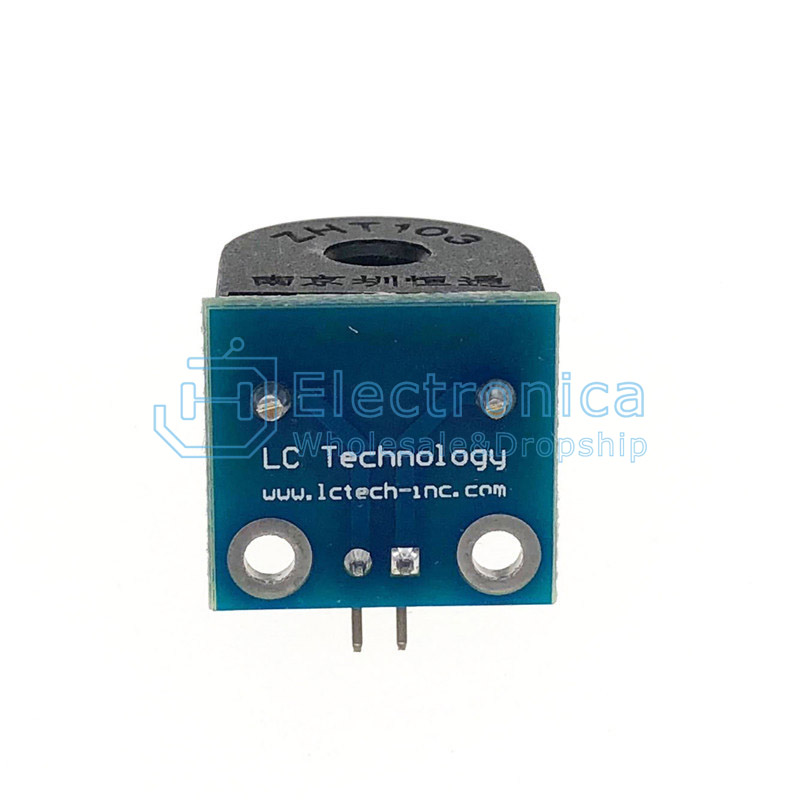

On-board micro precision current transformer
Onboard sampling strength
The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA
Rated Input Current: 5A
Rated output current: 5mA
PCB size: 18.3 x17 (mm)
Change: 1000: 1
Linear range: 0 ~ 10A (100 ohms)
Linearity: 0.2%
Precision: 0.2
Uses Insulation Voltage: 3000 V Measure
Sealing material: epoxy resin
Operating temperature: -40 °~ + 70 °

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

5A AC Current Sensor Module

SKU : YXA266 Brand : JH Stock

Price : $ 0.36

100 +: $0.36500 +: $0.361000 +: $0.36

Quantity :

- +

ADD TO CART
