Description

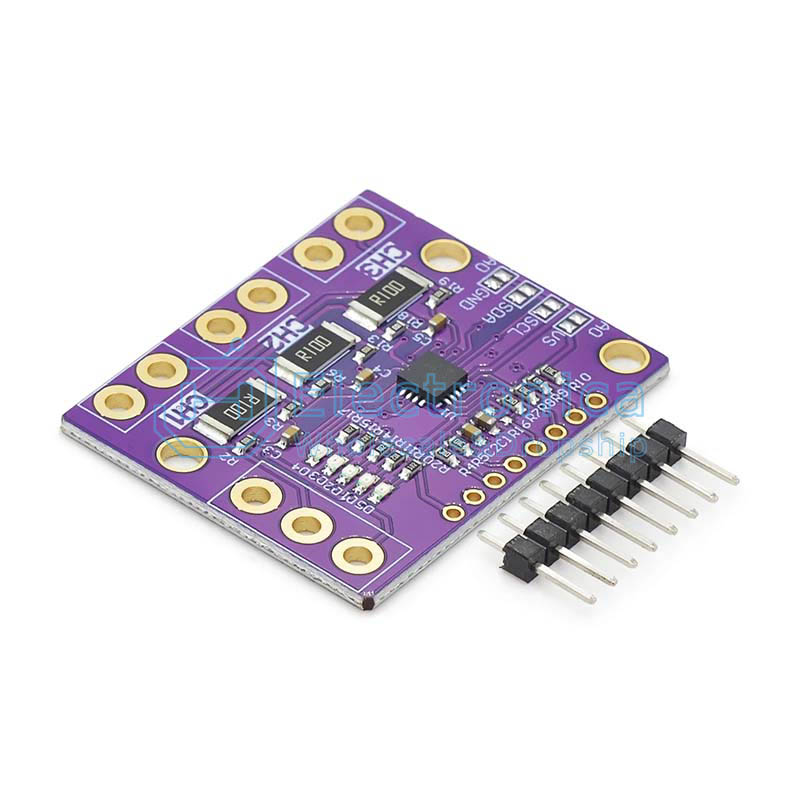

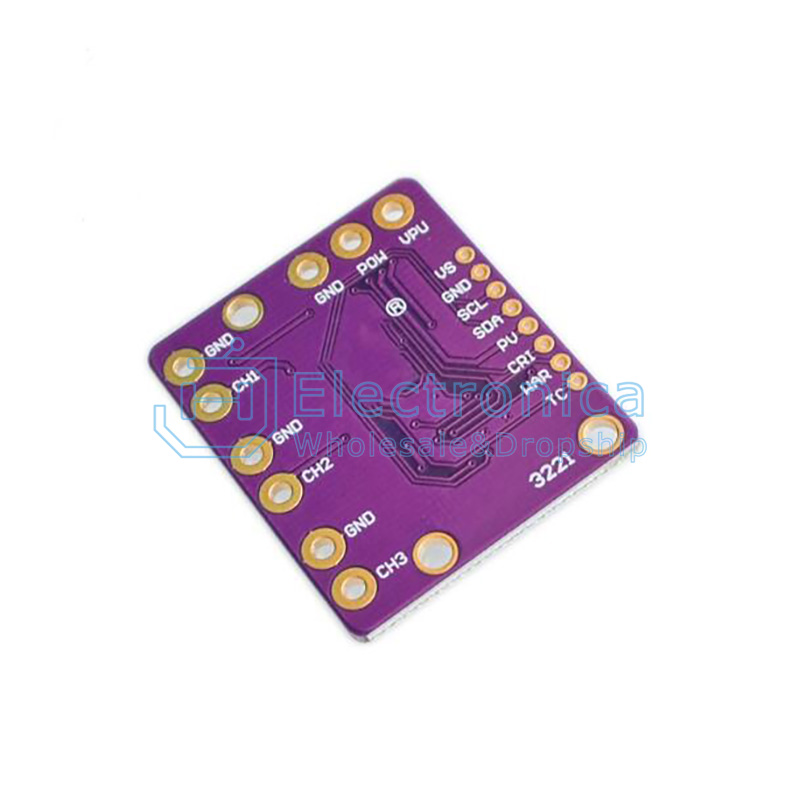

Purple board weight:5g
Product size:38.3mm×31.7mm

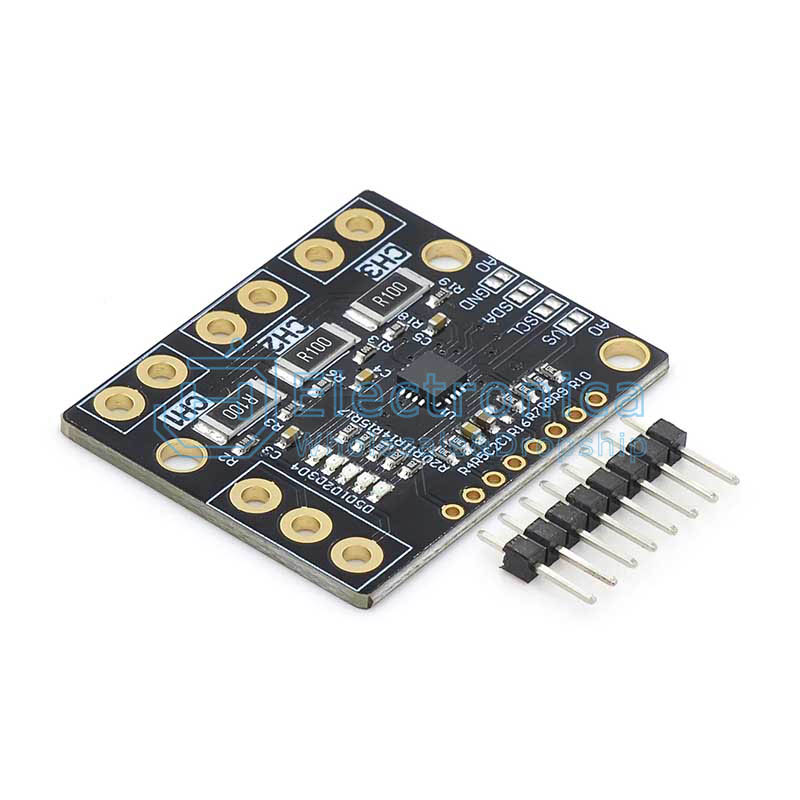

Black board weight:5g
Product size:38.3mm×31.7mm

MCU-3221 INA3221 three-way low-side / high-side output current I2C / Power Monitor

INA3221 it is a three-channel, high-side current and bus voltage monitor with one compatibility I2 C and SMBUS the interface.

INA3221 it can not only monitor the shunt voltage drop and bus power supply voltage, but also provide programmable conversion time and average value calculation mode for these signals.

INA3221 provides Key alarms and warning alarms to detect multiple out-of-range conditions programmable on each channel.

INA3221 sensing bus (voltage in 0V to + 26V change within the scope).

This device is made up 2.7V to 5.5V single power supply, ICC, IDD consumption is 350μA(Typical value).

INA3221 the rated operating temperature range is -40°C to +125°C. Compatible I2C and SMBUS the interface of has four programmable addresses.

Features:
three-channel monitoring, each bus voltage can be used
0.1 ohms 1% 2W current detection electronic resistance.
Maximum 26v detection voltage, ± 8mV accuracy.
The highest ± 1.638A current measurement, ± 0.4 Ma accuracy.
PCB size: 38*32mm.
Weight (excluding pin arrangement and others): 4.4g.
The module can be selected through the pad wire jumper, using 4 2c addresses: 0 x40, 0 x41, 0 x44, 0 x45.

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

MCU-3221 INA3221 Three Way I2C Output Current Power Monitor

SKU : YXK137 Brand : JH Stock

Price : $ 0.61

100 +: $0.61500 +: $0.611000 +: $0.61

Style：

Purple board
Black board
