Description

ZMCT103C Class A rated input current 5A rated output current 5mA transformation ratio 1000: I

Phase difference≤I5” (input is 5A, sampling resistance is 5092) Linear range is 0~15A (sampling resistance is 502) Linearity ≤0.2% (5% point~120% point) -0.2%Sf<+0.2% allowable error (The input is 5A, the sampling resistance is 5092)
ZMCT103C Class E rated input current 5A rated output current 5mA transformation ratio 1000:1
Phase difference ≤30 '(input is 5A, sampling resistance is 502) linear range 0~15A (502) linearity ≤0.2% (5% point~120 point) -0.4%≤f≤+0.4% allowable Error (input is 5A, sampling resistance is 502)
Isolation withstand voltage: 4500V
Purpose: Current and power measurement or simple measurement Sealing material Epoxy resin
Installation method: printed board installation (pin length> 3mm)

Working temperature: -40°C~+859C

Package Type:

All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .

2.Some fragile products such as the display screen can be packed in bubble bag

3.Some large machines can be packed in wooden cases.

4.We can label JH code or client's code on package so that customers can check easily after receive goods.

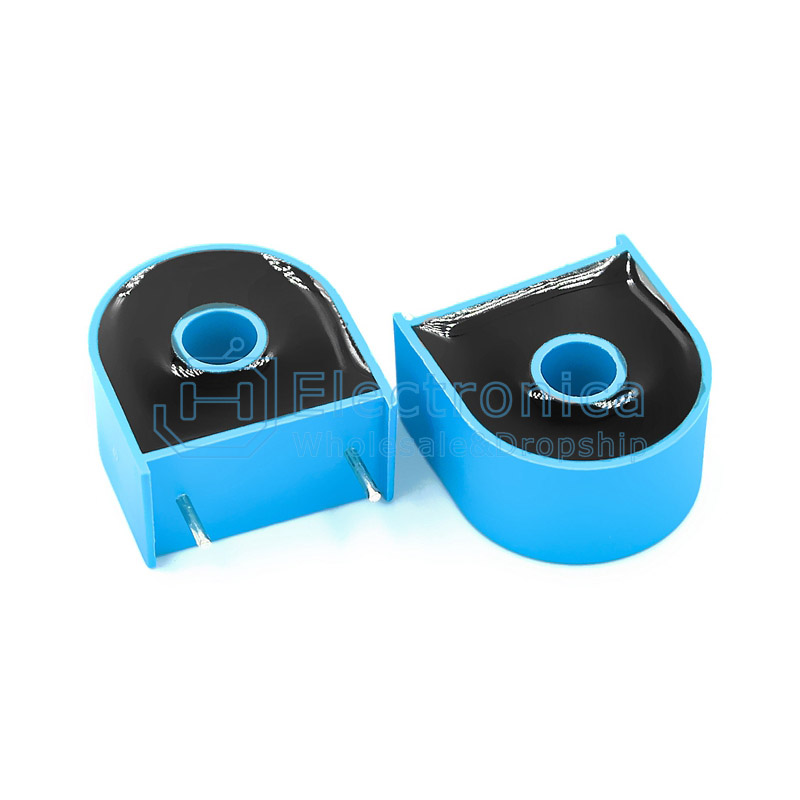

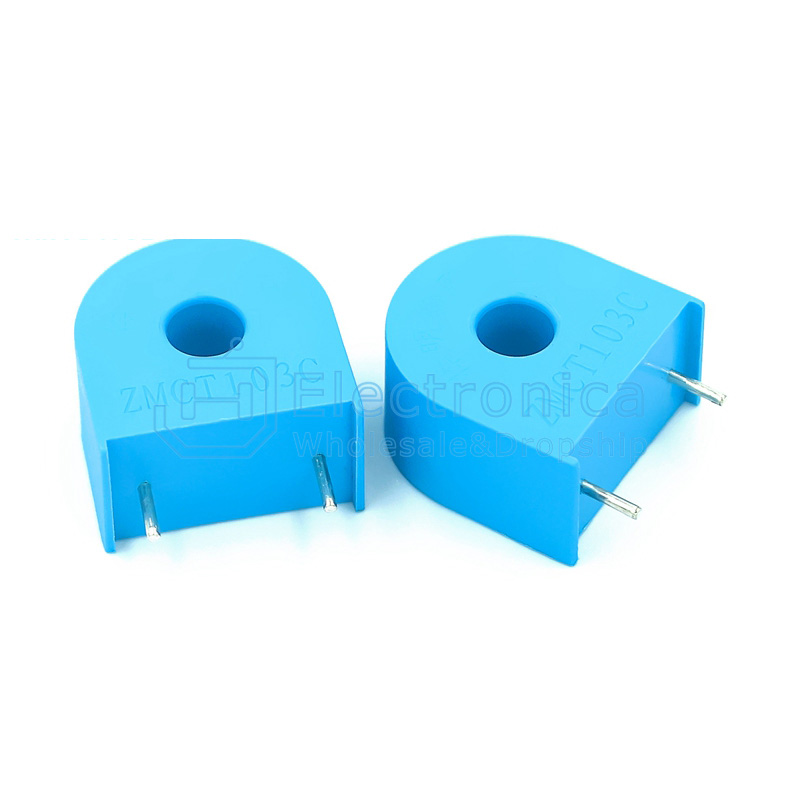

ZMCT103C 5A/5mA Precision Miniature Current Transformer

SKU : YXC291 Brand : JH Stock

Price : $ 0.20

100 +: $0.20500 +: $0.201000 +: $0.20
