Description

Product Parameters:
Working voltage:DC12V
Working current:<20MA
Working frequency range:20Hz~400Hz
Output method:switch signal output
Maximum detection wire diameter:5.2mm
Installation hole:hole diameter of 3mm, hole spacing of 52.5mm
Working environment:-40~+85℃, 0-95% RH
Product Description:

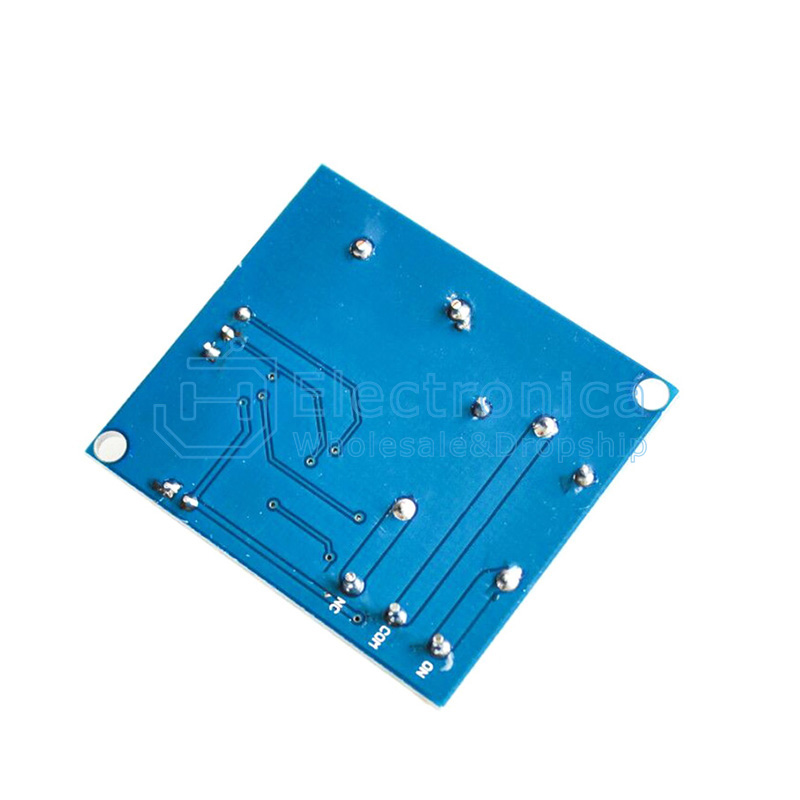

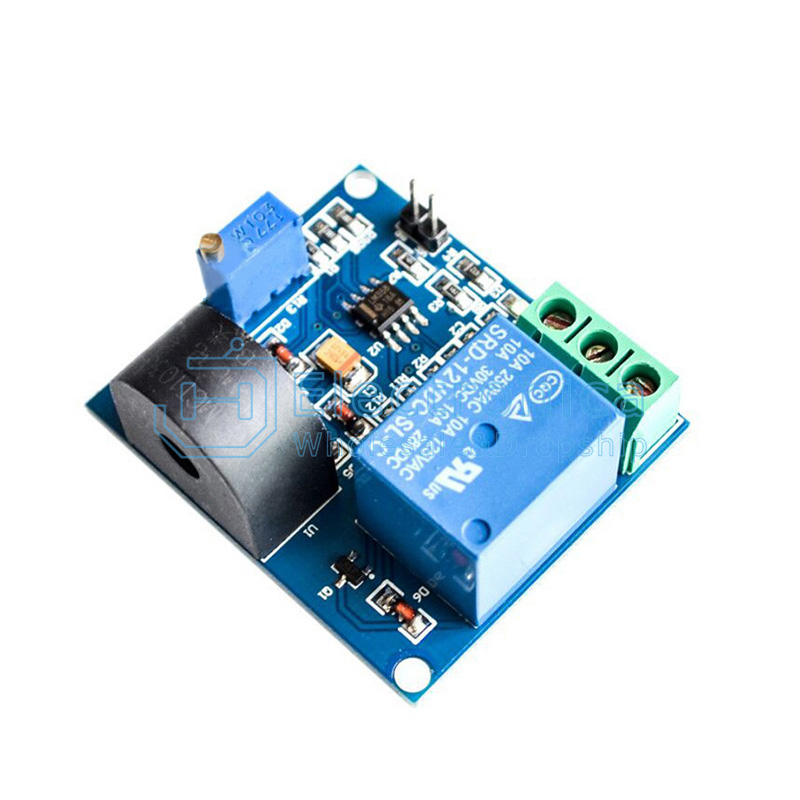

It is an overcurrent protection sensor module. It uses a current transformer to collect AC signals and achieve relay signal output after overcurrent within the range of 0-5A. The relay engages when overcurrent occurs, and releases when there is no overcurrent. Users can use the COM, NC, and NO ports of the relay to control the on/off of external circuits, thereby achieving overcurrent protection function
Instructions for use:
VCC: working voltage positive pole
GND: working voltage negative pole
ON: Normally open, NO and COM are disconnected before the relay is pulled in, and short circuited after pulling in
COM: Common terminal, relay common interface
NC: Normally closed end, short circuited between NC and COM before relay closing, disconnected after closing

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment.

We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag,component,module can be packed in anti static bag.
2.Some fragile products such as the display screen can be packed in bubble bag.
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

5A Overcurrent Protection Sensor

SKU : YXS1582 Brand :

Price : $ 1.10

100 +: $1.10500 +: $1.101000 +: $1.10
