Description
The main features and advantages
With the I2C interface of single chip solutions to support current, voltage and power measurement, to simplify the need for external multiplexer or ADC circuit board design, to layout the limitations;
Industry the highest accuracy, with a modest 0.1% uV maximum offset voltage and maximum gain error, not only can implement higher precision in low power flow, but also can use smaller shunt resistor, which can reduce the loss of the I * R; independent programmable conversion time and sample average technique not only can simplify the speed requirement of each system customization, but also can reduce the demand for software and storage; uA 420 largest static current and uA the mark 2 break current support efficient work, even if INA226 integrated ADC and power multiplexer, power consumption and the discrete solution of 3.5% lower than the similar competitive products;140 dB, common mode rejection ratio (CMRR) and 36 V common-mode voltage (CMV) within the scope of work to ensure minimal or no changes of offset voltage, which can simplify the error analysis.
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .
We can accept customized package to meet different requirements:
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

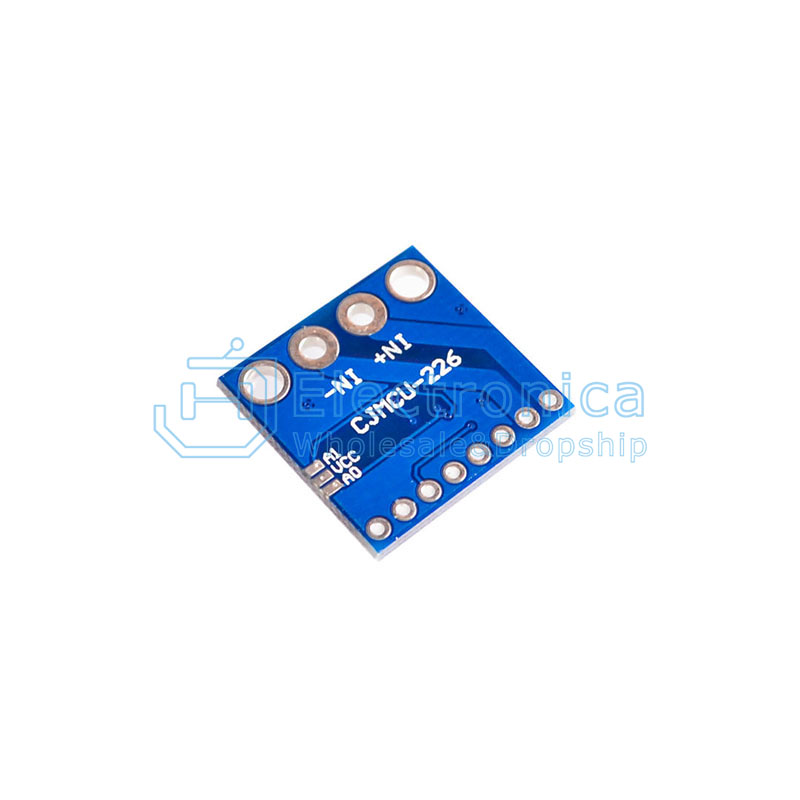

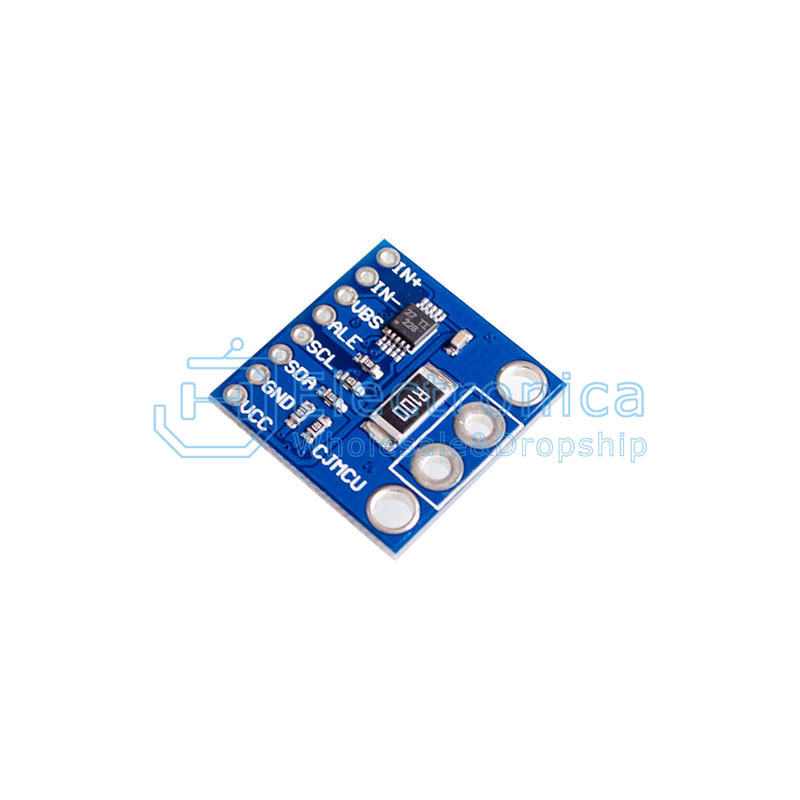

NA226 IIC Interface Bidirectional Current Power Monitoring Sensor
SKU : YXA837 Brand : JH Stock
