Description
Number of phases: 2 phases
Step angle: 1.8°
Rated voltage: 3.3V DC
Rated current: 1.5A
Holding torque: 400mN. m Min (two-phase energization)
Phase resistance: 2.22 soil 10% (20C)
Phase inductance: 3.8mH ± 20% (1kHz1Vrms)
Rotor inertia: 57g.cm^2
Motor weight: 288g Ref.
Insulation resistance: 100MQ Min. (DC 500V)
Insulation class: B(130°C).
Weight: 0.4kg
Step angle: 1.8+5% degrees/step voltage: 12V
Current: 1.5A/phase
Resistance level: 10.0+10%Q2/phase
Inductance value: 20+ 20%MH/phase
Bit lead style: AWG26 UL1007
Equipped with: 4 leads
Holding torque: 48N.cm sensitive
Braking torque: 2.6N.cm
Rotor torque: 68g.cm2
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .
We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

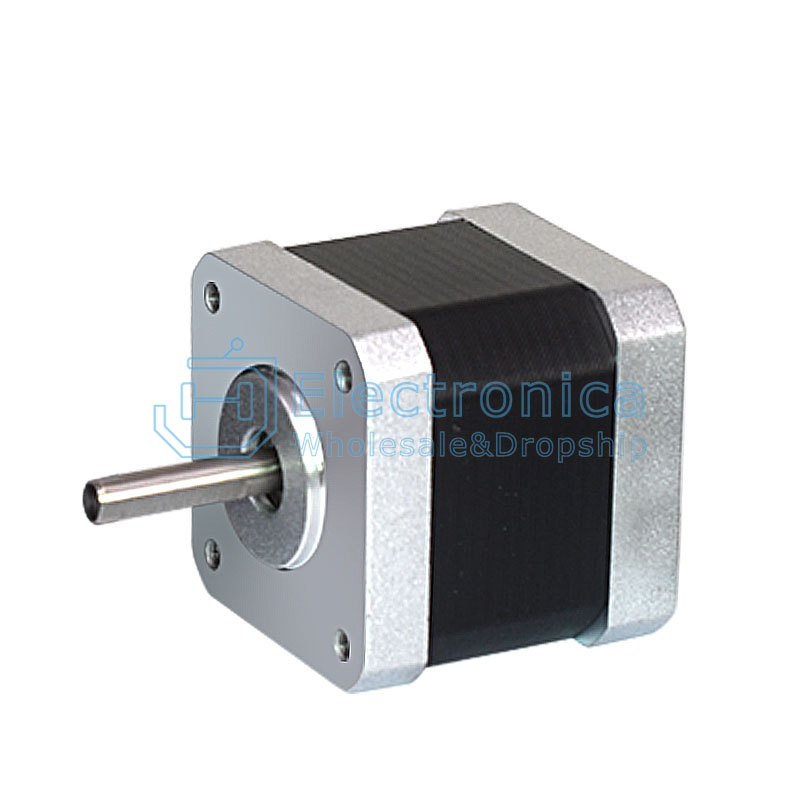

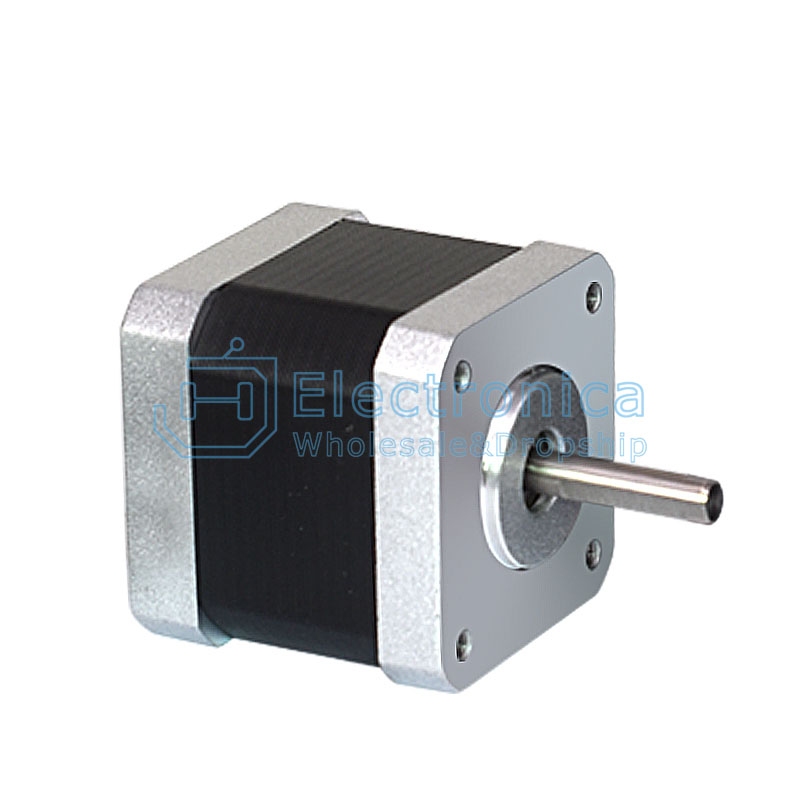

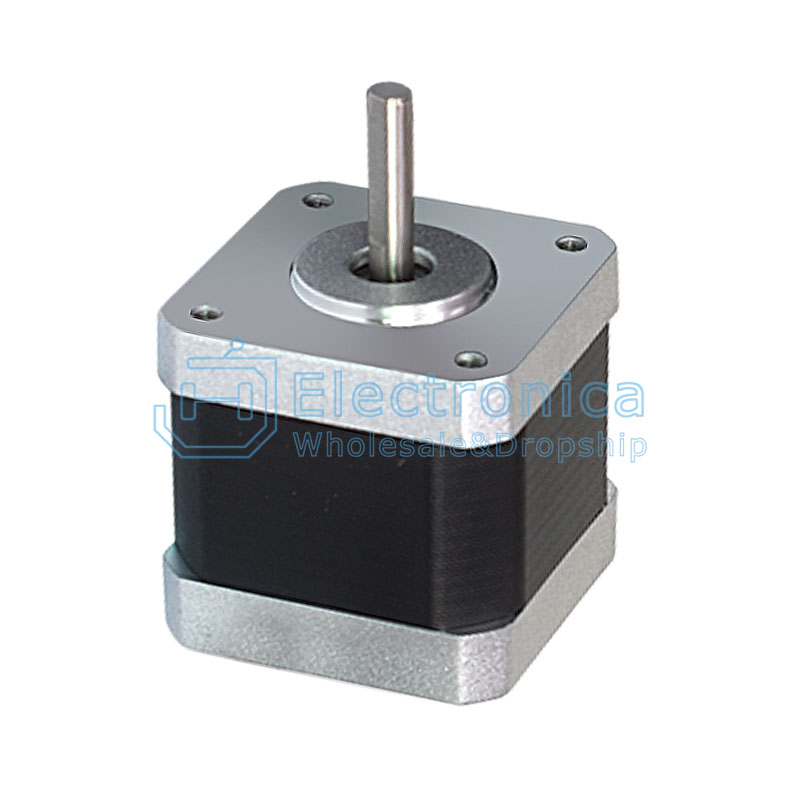

NEMA 17 42 Stepper Motor 17HS4401
SKU : YXD072 Brand : JH Sourcing
