Description
Holding Torque:120mN.m
Type:HybridProduct name: Titan step motor
Phase: 2 Phase
Voltage: 12V
Current: 0.7 A/Phase
Resistance: 4.0 ± 10%Ω/Phase
Inductance: 3.2 ± 20% mH/Phase
Holding Togque: 14 N.cm
Insulation Class: B
Step Angle: 1.8±5% /STEP
colour:Silver + black
Material:Metal + ABS

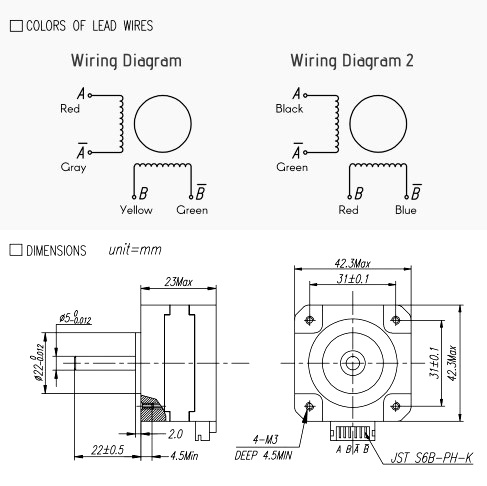

Size:42*42*23mm
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .
We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

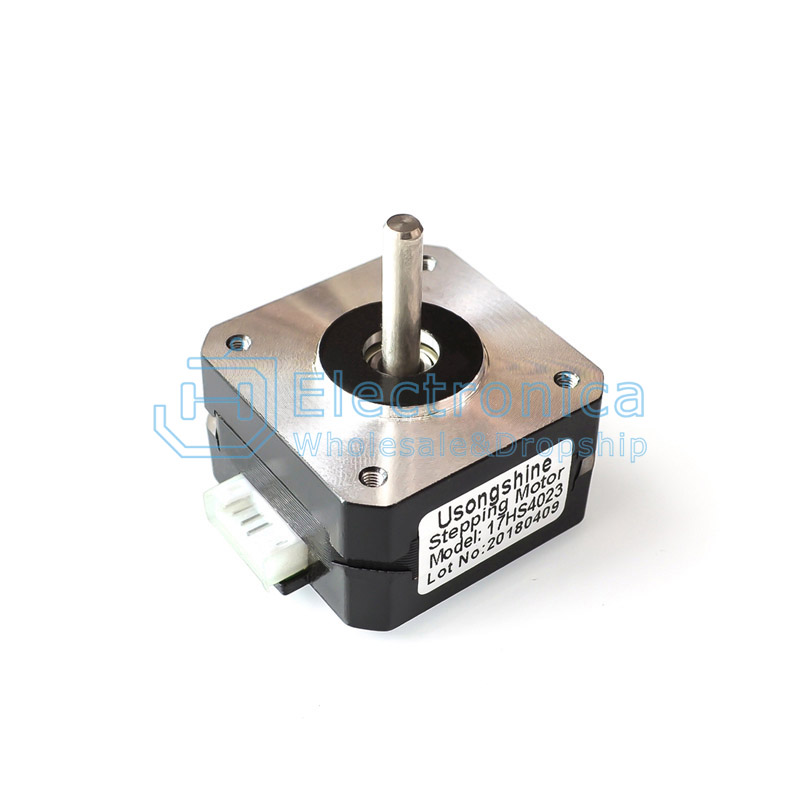

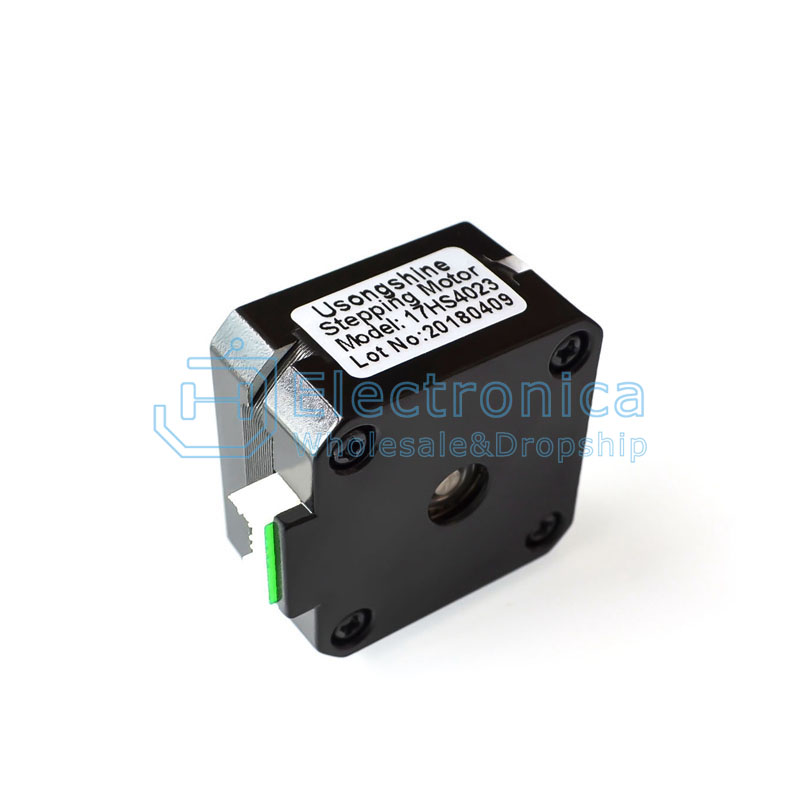

Nema17 17HS4023 4-Lead 22Mm 42 Stepper Motor for Titan Extruder
SKU : YXK459 Brand : JH Stock
