Description
No. of Phase: 2 Phase 4-wires.
Rated Phase Current: 2.8A.Phase Resistance: 1.0?.
Phase Inductance: 5.0mH.
Step Angle: 1.8o.
Shaft Diameter: ?8.00mm D-Shape.
Rated Voltage: 12V – 24V DC.
Holding Torque: 176Ncm.
Connector: XH 4-pins 2.54mm pitch.
Wire length: 100cm.
Frame size: 56mm x 56mm.
Motor Body Length LMAX: 76mm.
Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .
We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

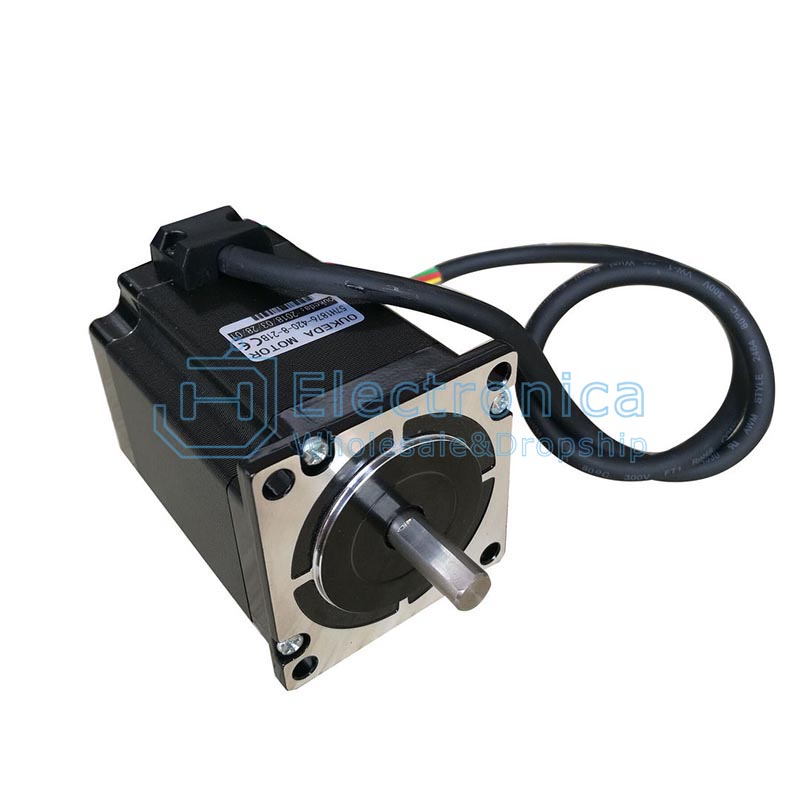

57BYGH76 Nema23 Stepper Motor 1.8 Degree 4.2A 1.8Nm
SKU : YXM005 Brand : JH Sourcing
