Description

Model: 17HS4023
Size: 42 * 42 * 23mm
Phase number: 2 phase
Rated voltage: DC 4.1V
Rated current: DC 1.0A / phase
Phase resistance: 4.1X (±10%) Ω / phase
Phase inductance (1KHz): 4.1x (1±20%) mH / phase
Holding torque: ≥130m N.cm
Positioning torque: 20mN.m REF.
Steering (shaft extension): A-AB-B-clockwise
Maximum no-load starting frequency: ≥ 1400PPS
Maximum no-load operating frequency: ≥ 2500PPS
Insulation resistance: ≥100 MΩ (DC 500V)
Insulation class: B
Electrical strength DC600V/1mA/1S
Quality: 132 g REF.
Moment of inertia: 30.8 g.cm3

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

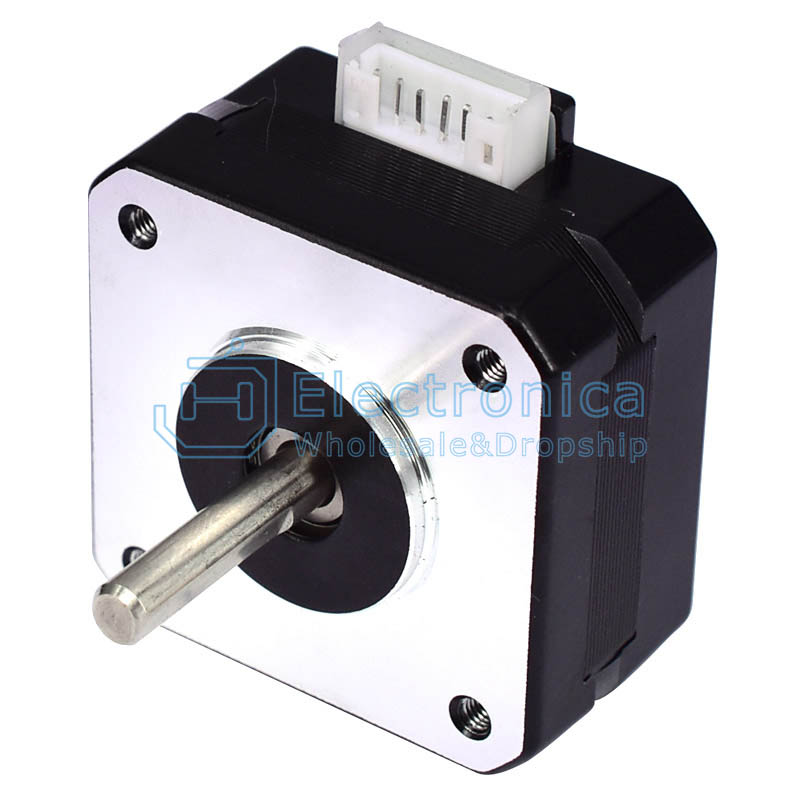

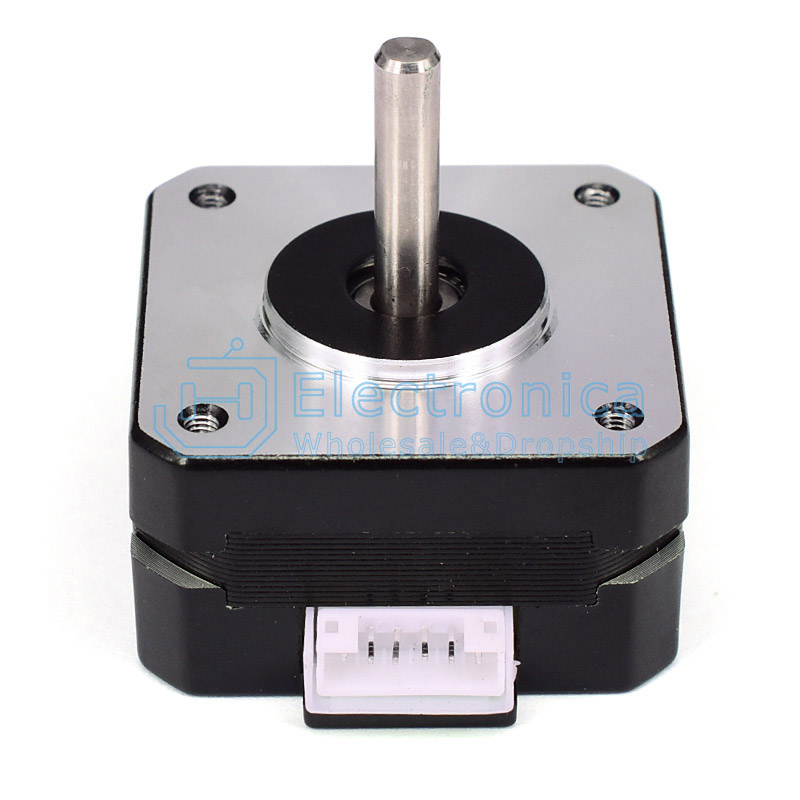

17HS4023 424223mm Titan Stepper Motor

SKU : YXD173 Brand : JH Sourcing

Price : $ 2.83

100 +: $2.83500 +: $2.831000 +: $2.83
