Description

1.Motor type: 2-phase 4-wire system
2.Driving voltage: 5V / 300mA (the higher the voltage, the greater the force and the greater the heating)
3.Screw length: 36mm
4.Slide stroke: 34mm
5. Motor diameter: 10mm
6.Screw rod diameter: 2mm
7.Optical axis diameter: 1.5mm
8.Step angle: 18 degrees
9.Phase resistance: 15.5 Ω
10.Overall size: 50 * 10 * 10mm
11.Red a + white a-black B + brown B-
12.Note that the stepper motor, directly connected to the power will not rotate, the need for stepper motor drive board and control board
Fixed hole distance: about 12mm

Package Type:
All goods will pack into cartons and wrapped full of waterproof tape before shipment .

We can accept customized package to meet different requirements :
1.Every item will separately pack into plastic bag ,component, module can be packed in anti static bag .
2.Some fragile products such as the display screen can be packed in bubble bag .
3.Some large machines can be packed in wooden cases.
4.We can label JH code or client's code on package so that customers can check easily after receive goods.

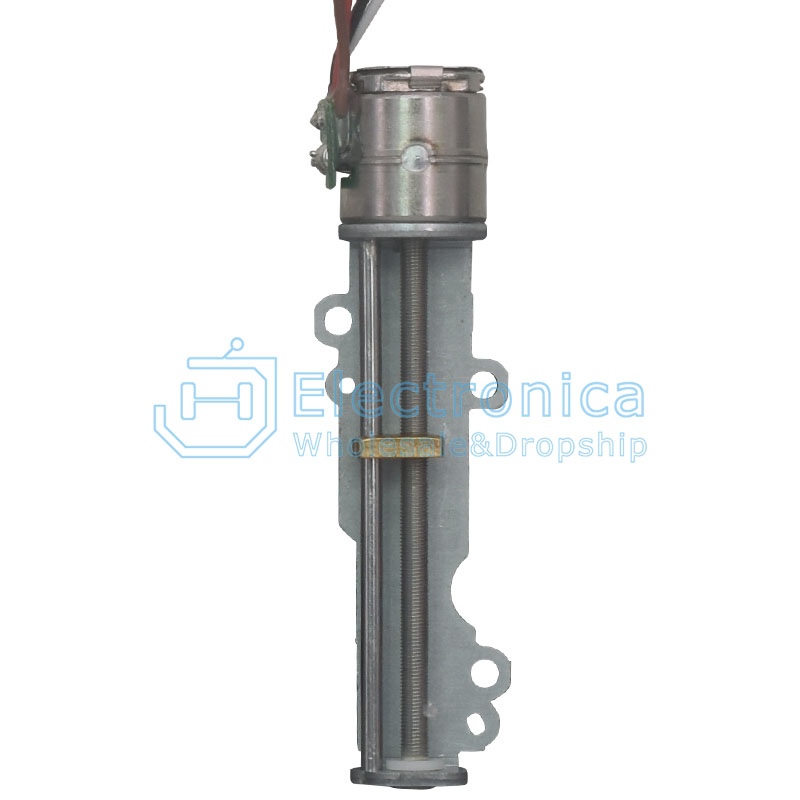

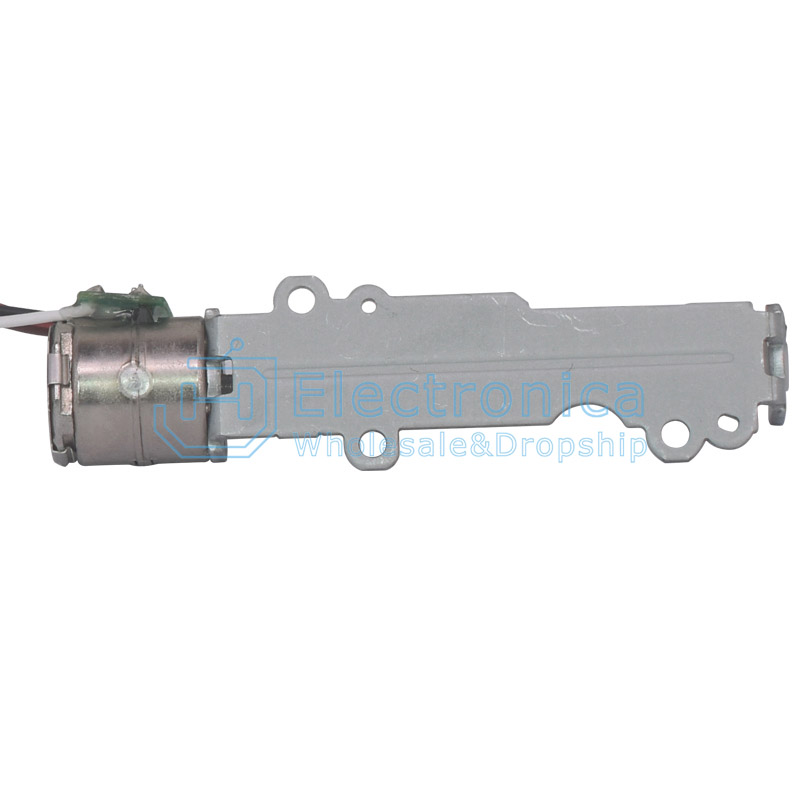

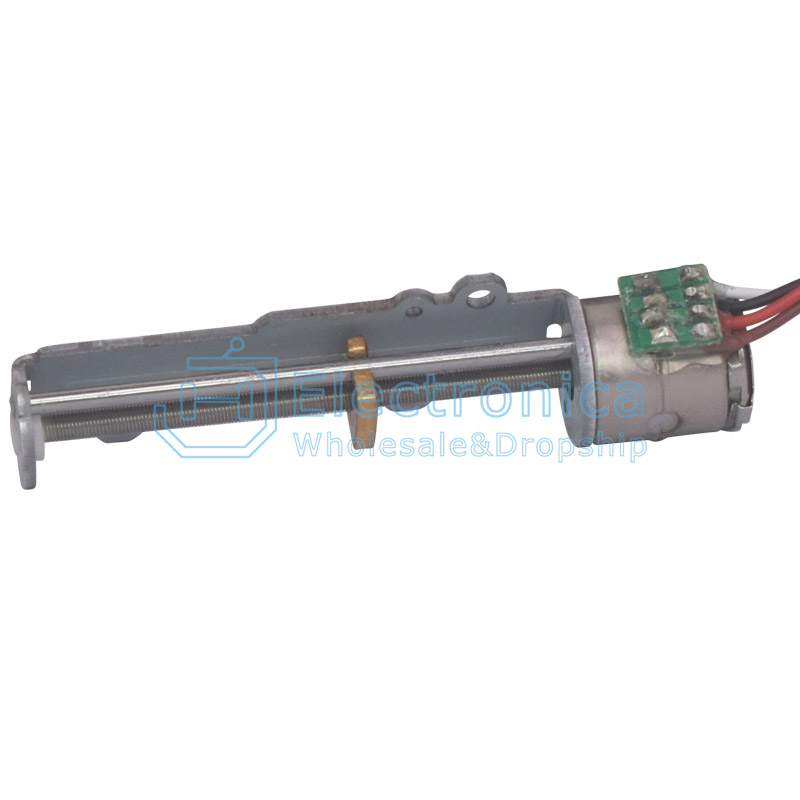

Stepper Motor With Screw Rod And Nut Slider

SKU : YXD522 Brand : JH Sourcing

Price : $ 7.49

100 +: $7.49500 +: $7.491000 +: $7.49
